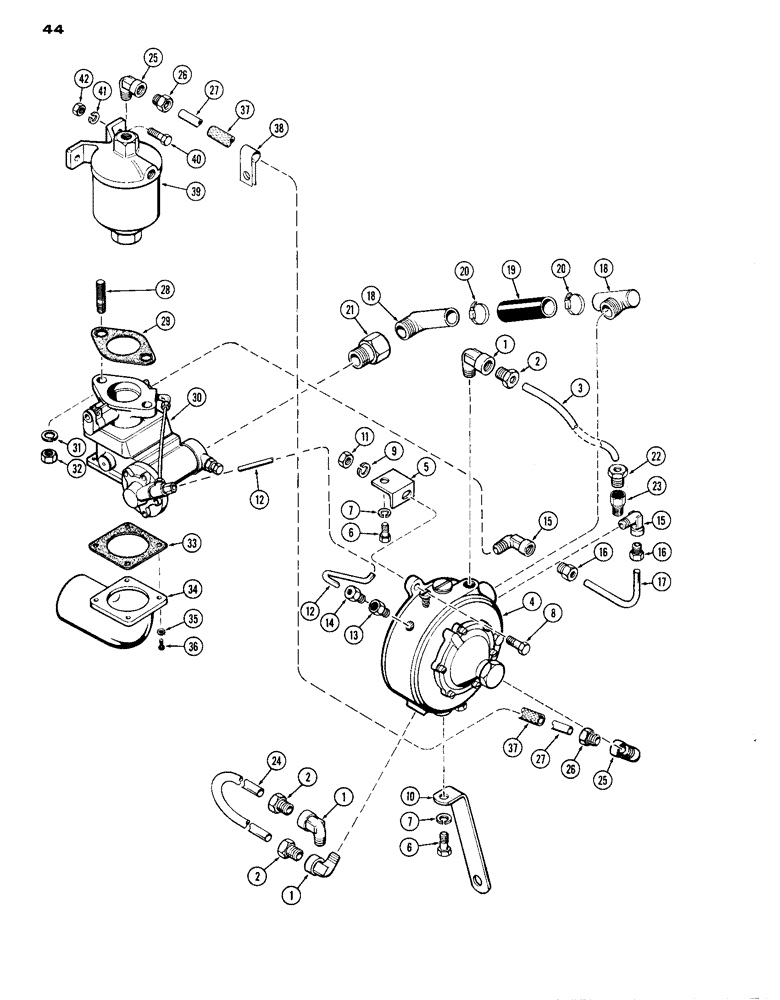

Запчасти Case IH A284 (44) - FUEL SYSTEM, LP-GAS ENGINE

1

222-442

ELBOW ASSY. - tube, 1/2" tube x 3/8" P.T. 90º x 3/8" NPT x 11/16"-16

3шт.

2

222-506

TUBE NUT,11/16"-16

NUT - elbow, 1/2 tube

1шт.

3

A21239

TUBE - water, Serial Range: pump-regulator

1шт.

4

A21231

REGULATOR ASSY. - fuel (Repair, P. 49)

1шт.

5

A21232

BRACKET - supt., regulator upper

1шт.

6

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

9

92-5

LOCK WASHER,5/16"

1шт.

10

A21233

SUPPORT - regulator lower

1шт.

11

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C., hex.

1шт.

12

A21236

TUBE - regulator to carb. tee

1шт.

13

222-401

CONNECTOR, ELEC

CONNECTOR ASSY. - tube, 3/16" tube x 1/8" male P.T.

1шт.

14

222-501

TUBE NUT,3/8"-24

NUT - connector, 3/16" tube

1шт.

15

222-434

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

ASSY. - tube, 5/16" tube x 1/8" male P.T.

2шт.

16

222-503

TUBE NUT,1/2"-20

NUT - elbow, 5/16" tube

1шт.

17

A21237

TUBE - carburetor to reg. balance

1шт.

18

A9155

90 ELBOW

- vapor hose

2шт.

19

A21234

HOSE,0.75" ID x 3.50", SAE 20R4 Class SC

- Vapor 0.75" ID x 3.50", SAE 20R4 Class SC

1шт.

20

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

2шт.

21

A21235

FITTING

ADAPTER -, Serial Range: elbow-carburetor

1шт.

22

222-412

CONNECTOR ASSY. - tube, 1/2" tube x 3/8 male P.T.

1шт.

23

222-506

TUBE NUT,11/16"-16

NUT - elbow, 1/2" tube

1шт.

24

A21238

TUBE - regulator to water outlet

1шт.

25

222-437

ELBOW,90 Degree x 1/4" NPT x 9/16"-20

ASSY. - tube, 3/8" tube x 1/4" male P.T.

2шт.

26

222-504

TUBE NUT,9/16"-20

NUT - elbow, 3/8" tube

1шт.

27

A23613

TUBE -, Serial Range: regulator-filter

1шт.

28

A10029

STUD - mtg., carburetor

2шт.

29

O889AB1

X

GASKET -, Serial Range: carburetor-manifold

1шт.

30

A21229

STIFFENER

CARBURETOR ASSY. - fuel (Repairs, P.47)

1шт.

31

92-6

LOCK WASHER,3/8"

2шт.

32

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F., hex.

1шт.

33

O8950AB

X

GASKET -, Serial Range: elbow-carburetor

1шт.

34

A21240

ELBOW - adapter, carburetor

1шт.

35

193-7

LOCK WASHER,Ext Tooth, #12

WASHER, LOCK, Ext Tooth, #12

4шт.

36

173-118

SCREW,Sl Rnd Hd, #12 - 24 x 5/8"

- mach. #12 x 5/8" N.C., rd. hd.

4шт.

37

O8753AB

LOOM - filter tube

1шт.

38

O3092AB

CLIP - retainer, filter tube & loom

1шт.

39

A24535

FILTER

ASSY. - fuel (Repairs, P. 49)

1шт.

40

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

41

92-5

LOCK WASHER,5/16"

2шт.

42

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C., hex.

2шт.

A34172

CONVERSION KIT - LP - gas to Nat. gas (mach. item)

1шт.
