Запчасти Case IH A284 (40) - GOVERNOR AND THROTTLE CONTROLS, SPARK IGNTION ENGINE

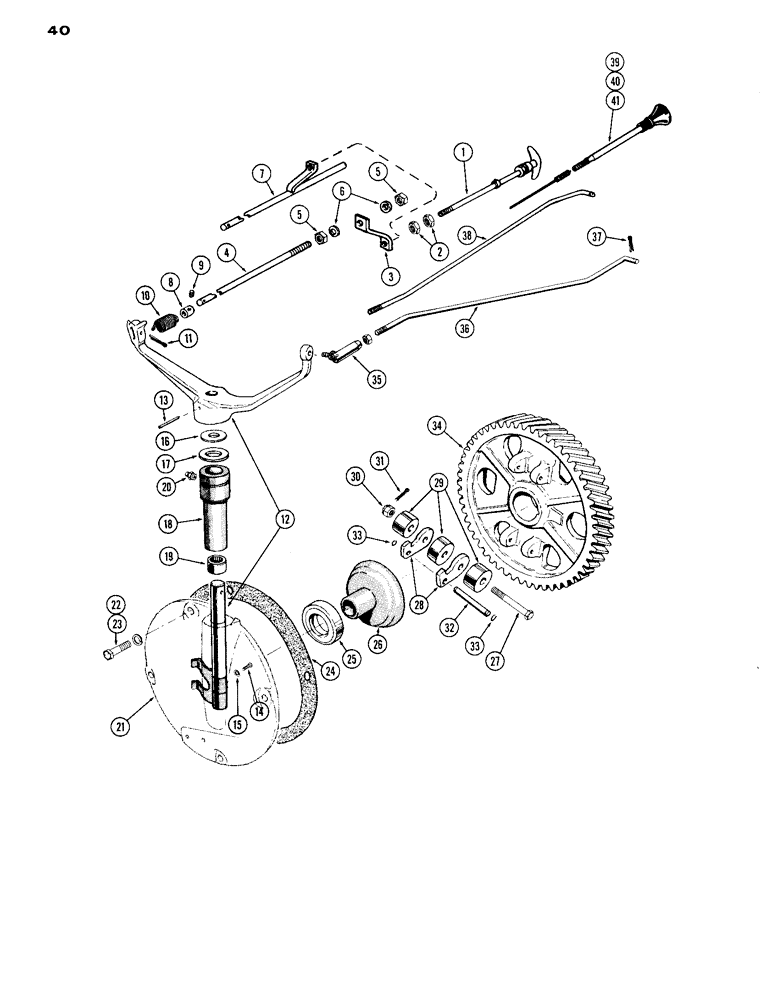

Схема запчастей Case IH A284 - (40) - GOVERNOR AND THROTTLE CONTROLS, SPARK IGNTION ENGINE
29
34
14
15
25
41
17
19
32
37
5
7
16
36
21
38
1
24
27
13
20
33
39
6
12
33
28
5
22
11
8
10
35
31
18
26
3
4
40
2
23
9
30

Артикул

Название

Примечание

Количество

1

A10877

CONTROL ASSY. - throttle

1шт.

2

129-7

NUT,Hex, #10 - 24

- #10, N.C., hex.

2шт.

3

A22372

LINK - throttle rod (Type 3 Units) (Gasoline)

1шт.

4

A22376

ROD - throttle rod (Type 3 Units) (Gasoline)

1шт.

5

25-106

NUT,3/8"-16, G5

- 3/8" N.C., hex.

2шт.

6

195-24

WASHER,5/16"

2шт.

7

A22373

ROD - throttle (L.P. Gas, Nat. Gas, Type 1 & 2 Gasoline)

1шт.

8

A20846

COLLAR

- stop, throttle rod

1шт.

9

84-44

SET SCREW,Hex Soc, 1/4"-28 x 1/4"

SCREW - collar, 1/4" x 1/4" N.C., sckt. hd.

1шт.

10

A20966

SPRING

- governor

1шт.

11

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

12

A20838

SHAFT

LEVER ASSY. - governor

1шт.

13

138-101

LOCK PIN,3/16" x 1 5/8", Slotted

PIN, LOCK, 3/16" x 1 5/8", Slotted

1шт.

14

174-99

SCREW,Sl Rnd Hd, #10 - 32 x 5/8"

- mach. #10 X 5/8" N.F. rd. hd

2шт.

15

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

16

A7293

WASHER

- thrust (copper)

1шт.

17

A7292

SEAL

- oil, gov. lever

1шт.

18

A20835

SLEEVE - brg., gov. shaft

1шт.

19

A7290

NEEDLE BEARING,Needle, 14.29mm ID x 19.05mm OD x 12.7mm W

BEARING - needle (Torrington B-98)

2шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" str. P.T.

1шт.

21

A20833

CAP - cover, timing gear

1шт.

22

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

23

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

3шт.

24

O9752AB

X

GASKET - cover cap

1шт.

25

A7285

THRUST BEARING,1.0675" ID x 40574" OD x 5"

BEARING - thrust, gov. bell

1шт.

26

A7284

SLEEVE - bell, governor

1шт.

27

A11693

BOLT - pivot, finger & weight

2шт.

28

A33471

KIT

FINGER KIT - governor (Set of 4)

1шт.

29

A7277

WEIGHT

- governor

6шт.

30

25-235

SLOTTED NUT

NUT - 5/16" N.F., sltd.

2шт.

31

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

32

A7282

PIN,6.31mm OD x 47.63mm L

- fingers to bell sleeve

2шт.

33

A7111

SNAP RING,#25, Ext

Ring, Snap, , bell sleeve pins #25, Ext

4шт.

34

6451A

X

GEAR - camshaft

1шт.

35

A10326

BALL JOINT

JOINT ASSY. - ball, carb., Serial Range: rod-gov.

1шт.

36

A24307

ROD

- carburetor to governor (Gasoline)

1шт.

37

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

38

A21230

ROD

- governor to carb. (L.P. Gas & Nat Gas)

1шт.

39

A33574

CHOKE ASSY. - carb. (L.P. Gas & Nat Gas)

1шт.

40

A9360

CHOKE ASSY. - carb. (Gasoline) (Type 1 & 2 Units)

1шт.

41

A9323

CHOKE ASSY. - carb. (Gasoline) (Type 3 Units)

1шт.

Выбрано товаров: 41
