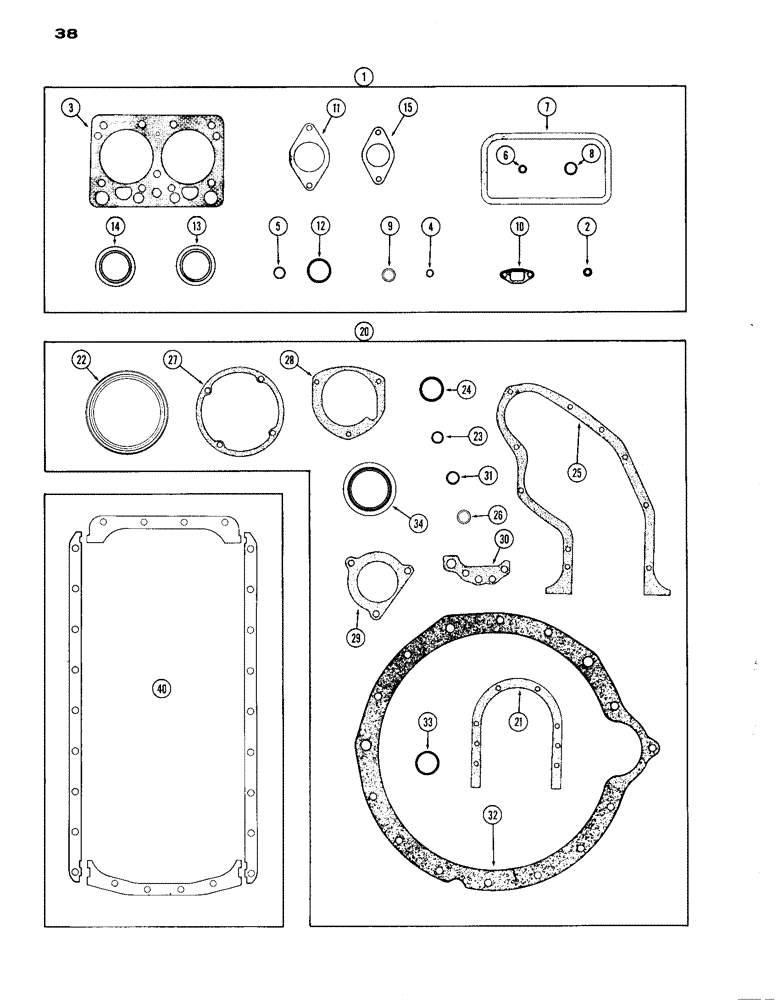

Запчасти Case IH A284 (38) - ENGINE GASKET KITS, VALVE GRIND, CYLINDER BLOCK, OIL PAN - SPARK IGNITION ENGINE

1

A40345

X

GASKET KIT - valve grind

1шт.

2

A10726

SEAL

SHIELD - oil, int. valve stem

4шт.

3

A23117

GASKET

- cylinder head

2шт.

4

O8569AB

X

"O" RING - oil passage, cylinder head

2шт.

5

A7669

RING

- water passage, cyl. hd. (Rubber)

4шт.

6

O9772AB

X

"O" RING - oil tube, rocker shaft

2шт.

7

O9959AB

X

GASKET - cover, cylinder head

2шт.

8

A23684

GASKET

GASKET - cover stud

4шт.

9

A23685

GASKET

- breather tube to cover (Not used in this application)

2шт.

10

O9804AB1

X

GASKET - water manifold

4шт.

11

O10715AB

X

GASKET - thermostat housing

1шт.

12

O10717AB

X

SEAL - thermostat

1шт.

13

A11889

GASKET

- exhaust manifold

4шт.

14

O9814AB

X

GASKET - intake manifold

2шт.

15

O889AB1

X

GASKET - carburetor to int. manifold

1шт.

20

A40349

KIT

GASKET KIT - cylinder block

1шт.

21

A32830

GASKET

- rear seal retainer

1шт.

22

A23085

OIL SEAL

- oil, rear crankshaft

1шт.

23

O8380AB

X

"O" RING - oil pump

2шт.

24

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - covers, magneto opening

1шт.

25

A33018

GASKET

- cover, timing gear

1шт.

26

A7292

SEAL

- bearing, gov. shaft

1шт.

27

O9752AB

X

GASKET - cap, timing cover

1шт.

28

O9797AB

GASKET

- water pump

1шт.

29

O9866AB

X

GASKET - starter motor mtg.

1шт.

30

A21084

GASKET

- base oil filter

1шт.

31

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - distributor mtg.

1шт.

32

A11649

GASKET

- cyl. block to conv. hsg. (Not used in this application)

1шт.

33

O10035AB

X

"O" RING - flywh. to crksft. (not w/this appl)

1шт.

34

A23433

OIL SEAL

- oil, front crankshaft

1шт.

40

A7616

GASKET KIT

- oil pan

1шт.
