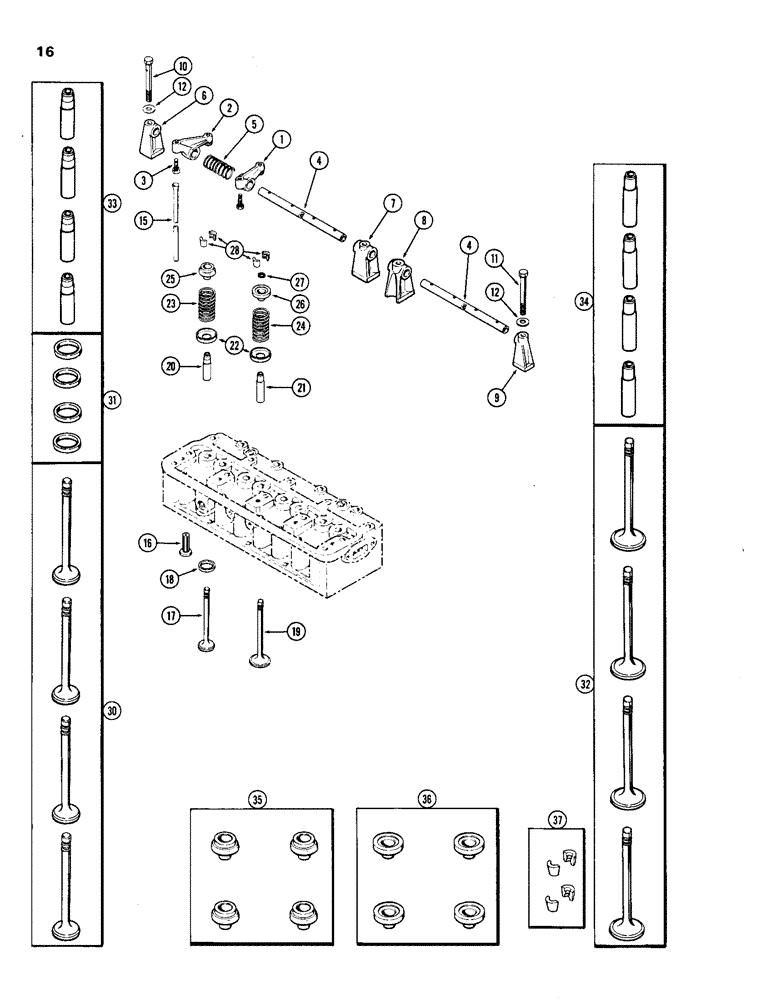

Запчасти Case IH 201 (16) - VALVE MECHANISM
№
Артикул
Название
Примечание
Количество
1
A51148
ARM
ASSY. - rocker, R.H. (Incl. Item 3)
4шт.
2
A51149
ARM
ASSY. - rocker, L.H. (Incl. Item 3)
4шт.
3
G49075
ADJUSTMENT SCREW,3/8" - 24 x 0.50"
- rocker arm adjusting
1шт.
4
A38181
SHAFT
- rocker arm
2шт.
5
G48501
SPRING
- rocker shaft
4шт.
6
A36615
BRACKET
- rocker shaft, rear
1шт.
7
G2101
BRACKET
- rocker shaft, center
1шт.
8
G2102
BRACKET
- rocker shaft, intermediate
2шт.
9
G2100
BRACKET
- rocker shaft, front
1шт.
10
G49067
BOLT
- 3/8 x 3-1/2" N.C. hex., drilled (rear bracket)
1шт.
11
13-656
BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5
- 3/8 x 3-1/2" N.C. hex.
4шт.
12
A30058
WASHER
- 13/32 x 7/8 x 1/8"
5шт.
15
G47129
PUSH ROD
ROD - push
8шт.
16
A30006
TAPPET
LIFTER - push rod
8шт.
17
NSS
NOT SOLD SEPARAT
VALVE - exhaust (See Ref. 30)
4шт.
18
NSS
NOT SOLD SEPARAT
INSERT - exhaust valve seat (See Ref. 31)
4шт.
19
NSS
NOT SOLD SEPARAT
VALVE - intake (See Ref. 32)
4шт.
20
NSS
NOT SOLD SEPARAT
GUIDE - exhaust valve (See Ref. 33)
4шт.
21
NSS
NOT SOLD SEPARAT
GUIDE - intake valve (See Ref. 34)
4шт.
22
G49065
SEAT
- valve spring
8шт.
23
A30025
SPRING
- intake valve (2-3/8" free length)
4шт.
24
G10004
SPRING
- exhaust valve (2-3/16" free length)
4шт.
25
NSS
NOT SOLD SEPARAT
ROTO-CAP ASSY. - exhaust valve (See Ref. 35)
4шт.
26
NSS
NOT SOLD SEPARAT
RETAINER - intake valve spring (See Ref. 36)
4шт.
27
G46851
SEAL
- intake valve stem, rubber
4шт.
28
NSS
NOT SOLD SEPARAT
LOCK - valve spring (See Ref. 37)
16шт.
30
G11988
VALVE
KIT - exhaust (Set of 4)
1шт.
31
G11986
KIT
INSERT KIT - exhaust valve (Set of 4)
1шт.
32
G11987
VALVE
KIT - intake (Set of 4)
1шт.
33
G11861
GUIDE
KIT - exhaust valve (Set of 4)
1шт.
34
G11946
GUIDE
KIT - intake valve (Set of 4)
1шт.
35
G11928
CAP
ROTO-CAP KIT - exhaust valve (Set of 4)
1шт.
36
G11927
RETAINER
KIT - intake valve (Set of 4)
1шт.
37
G11929
LOCK
KIT - valve keeper (Set of 4)
4шт.
Выбрано товаров: 34
