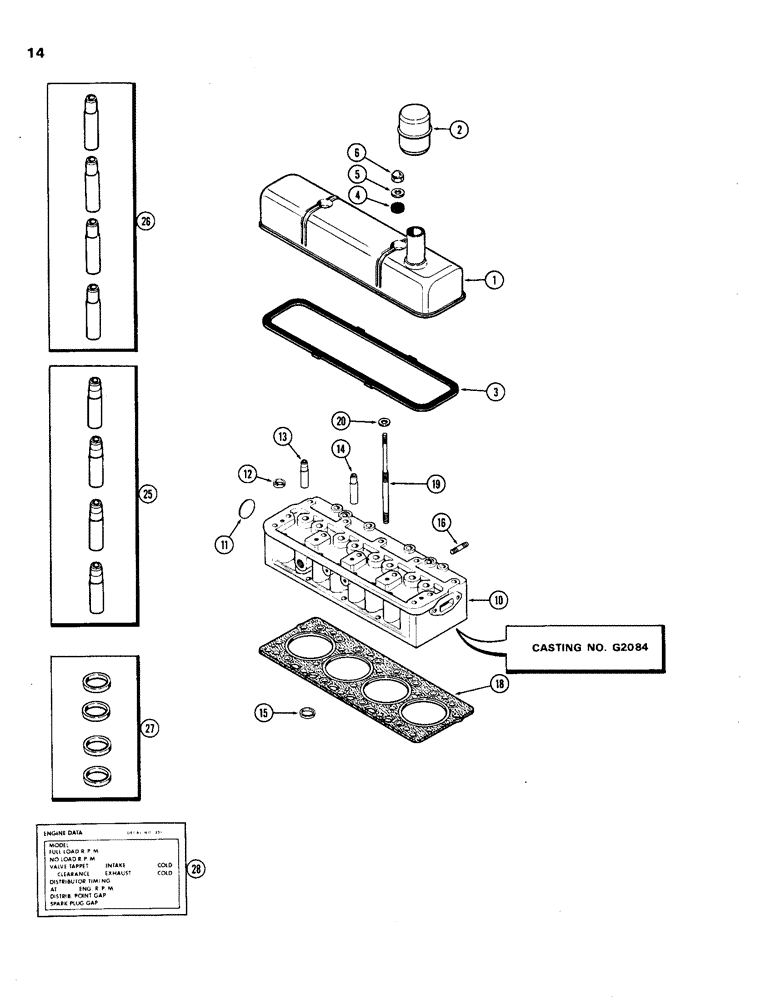

Запчасти Case IH 201 (14) - CYLINDER HEAD AND COVER

1

G37060

COVER - cylinder head

1шт.

2

A36608

CAP

- oil filler & breather

1шт.

3

A43030

GASKET,3.05mm Thk

-cover

1шт.

4

G46867

GROMMET

- 13/32 x 1-1/4 x 3/8", rubber

2шт.

5

G49400

WASHER

- 13/32 x 1-5/32 x 10 ga.

2шт.

6

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

10

G11871

HEAD (CYLINDER)

HEAD ASSY. - cylinder (Casting No. G2084)

1шт.

11

41-18

PLUG

- 1-1/8" expansion

1шт.

12

41-13

GUARD,Exp, 13/16"

- 13/16" expansion

1шт.

13

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (See Ref. 25)

4шт.

14

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (See Ref. 26)

4шт.

15

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (See Ref. 27)

4шт.

16

A29431

STUD

- 3/8" N.C. x 1-3/4"

7шт.

18

A36585

CYLINDER HEAD GASKET

- cylinder head

1шт.

19

A36780

STUD

- cylinder head & cover

2шт.

20

G11352

BUSHING

SPACER - cover

2шт.

25

G11861

GUIDE

KIT - exhaust valve (Set of 4)

1шт.

26

G11946

GUIDE

KIT - intake valve (Set of 4)

1шт.

27

G11986

KIT

INSERT KIT - exhaust valve (Set of 4)

1шт.

28

321-2176

DECAL - engine data (Krider Power Unit)

1шт.

28

321-2177

DECAL - engine data (Finn Power Unit)

1шт.
