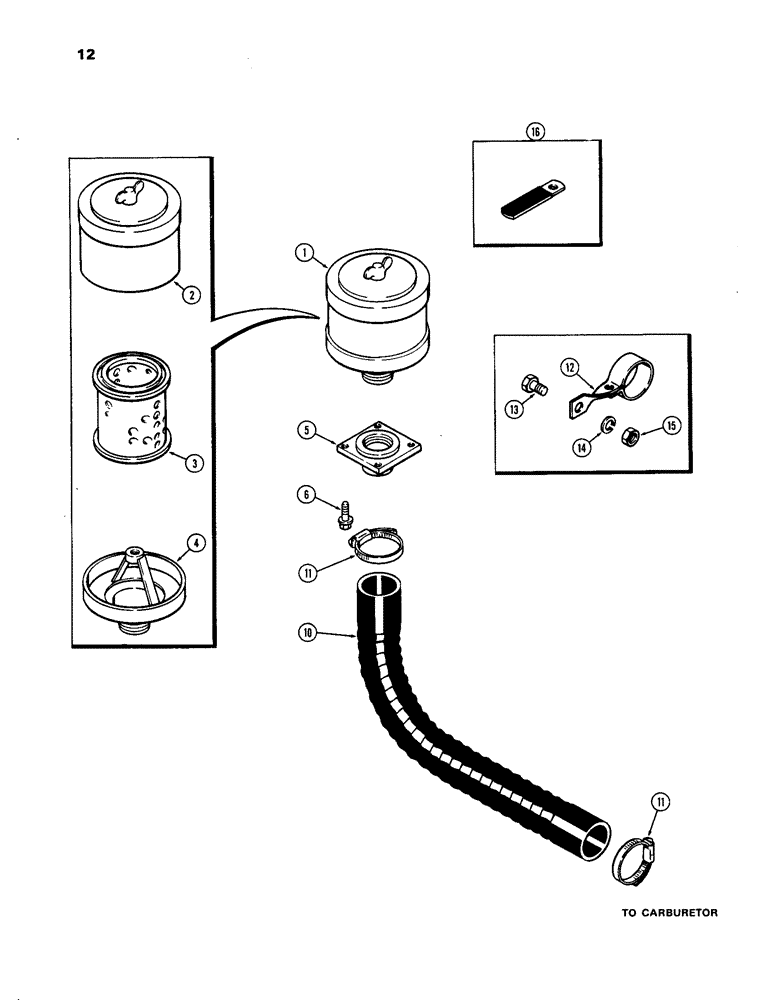

Запчасти Case IH 201 (12) - AIR CLEANER SYSTEM

1

A39982

CLEANER ASSY. - air

1шт.

2

A42977

COVER - cleaner

1шт.

3

A42975

ELEMENT - cleaner

1шт.

4

A42976

BODY - cleaner

1шт.

5

A39983

BRACKET - air cleaner mounting

1шт.

6

193-513

SCREW,SEMS, Hex Hd, 5/16"-18 x 1/2"

BOLT - 5/16 x 1/2" N.C. hex. sems

4шт.

10

A39986

HOSE - air, Serial Range: cleaner-carburetor

1шт.

11

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

12

A39987

CLAMP - hose (Krider Power Unit)

1шт.

13

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

15

25-104

NUT,1/4"-20, G5

1шт.

16

A39394

CLIP - hose (Finn Power Unit)

1шт.
