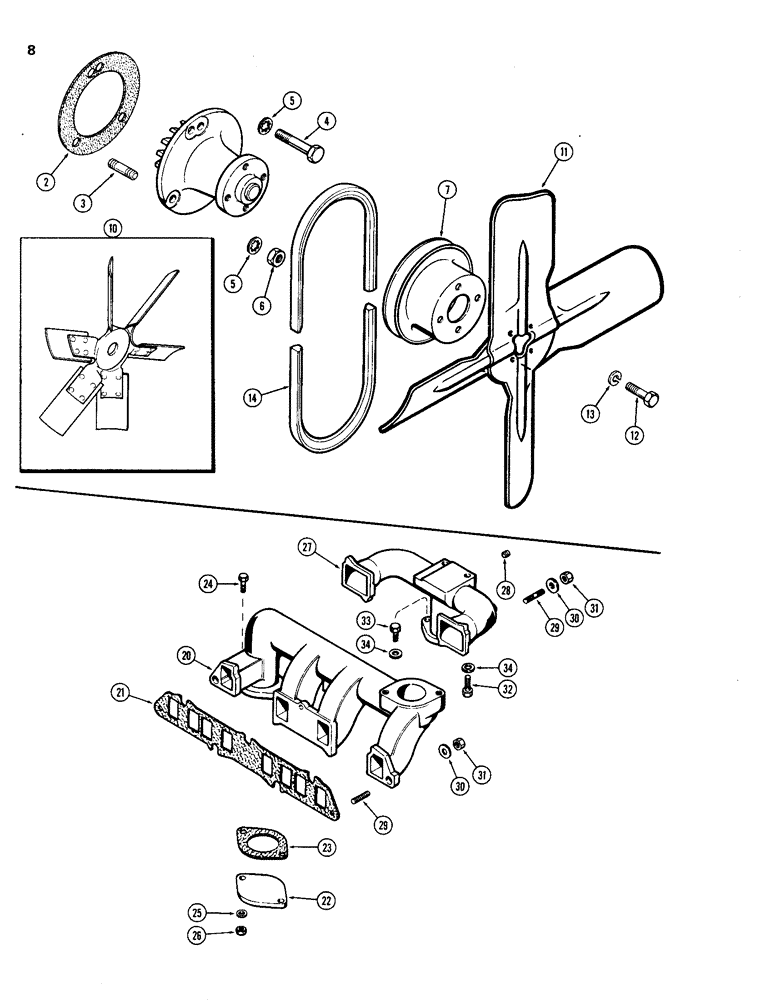

Запчасти Case IH 201 (08) - WATER PUMP

A39074

PUMP

ASSY. - water (complete)

1шт.

2

A38083

GASKET

- pump to timing gear cover

1шт.

3

A29433

STUD

- 3/8" N.C. x 1-1/8"

1шт.

4

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

4

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4" N.C. hex.

1шт.

5

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

3шт.

6

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

7

G11339

PULLEY

- pump & fan drive

1шт.

10

G45243

FAN

- (Krider Power Unit)

1шт.

11

A51039

FAN - (Finn Power Unit)

1шт.

12

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

13

92-5

LOCK WASHER,5/16"

4шт.

14

A38824

BELT

Pulley Drive

1шт.

20

G2097

MANIFOLD

- exhaust

1шт.

21

G46868

MANIFOLD GASKET

- manifold

1шт.

22

A38188

PLATE

COVER - exhaust opening

1шт.

23

G46853

MANIFOLD GASKET

- cover

1шт.

24

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

2шт.

25

195-25

WASHER,3/8"

2шт.

26

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex. seez-pruf

2шт.

27

A37170

MANIFOLD

- intake

1шт.

28

221-1012

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - 1/4" P.T., sq. hd.

1шт.

29

A29431

STUD

- 3/8" N.C. x 1-3/4"

7шт.

30

195-25

WASHER,3/8"

3шт.

30

A30058

WASHER

- 13/32 x 7/8 x 1/8"

4шт.

31

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex., seez-pruf

7шт.

32

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N.C. hex.

2шт.

33

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

34

92-6

LOCK WASHER,3/8"

4шт.
