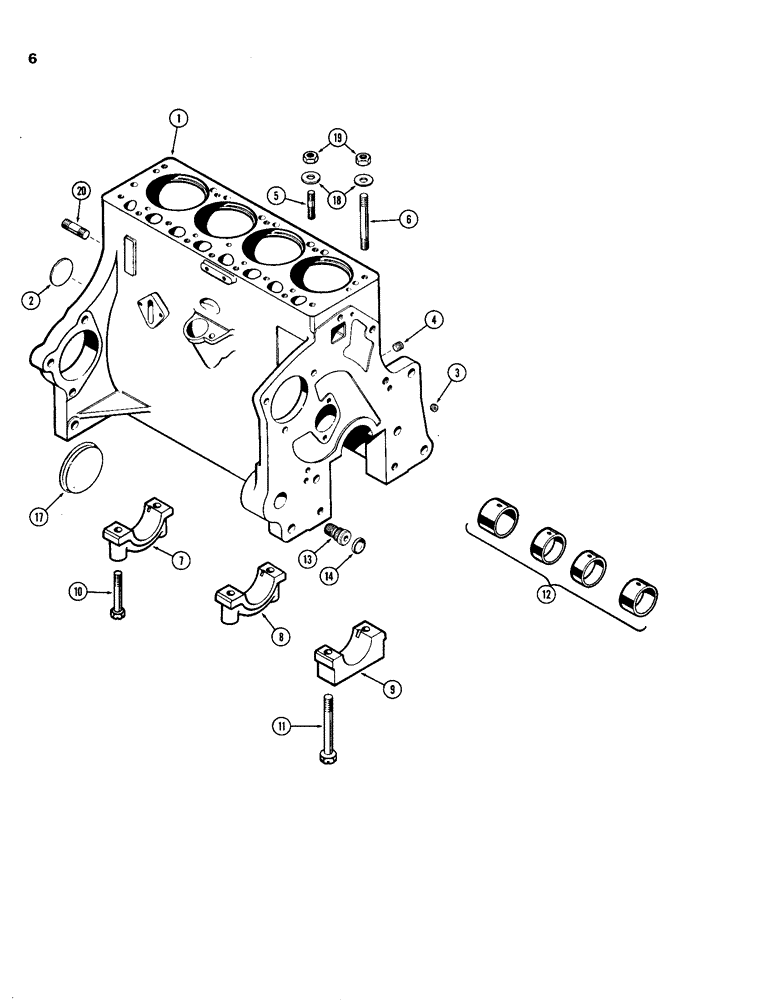

Запчасти Case IH 201 (06) - ENGINES

A51013

POWER UNIT - complete (Krider)

1шт.

A51033

POWER UNIT - complete (Finn)

1шт.

A40970

BLOCK

ASSY. - short (Incl. stripped block, crankshaft & brgs., camshaft & bushings, timing gears, oil pump, pistons, conn. rods & brgs.)(Casting No. A37748)

1шт.

1

A40971

SKELETON ENGINE

BLOCK ASSY. - stripped (Casting No. A37748)

1шт.

2

A39241

PLUG,Exp, 2.12" dia

- 2-1/8" expansion, camshaft hole

1шт.

3

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

- 1/4" P.T. ctsk. sckt. hd., oil gallery

3шт.

4

221-662

PLUG,Hex Hd, 1/4"-18

- 1/4" P.T. rd. hd., water gallery

1шт.

5

A30057

STUD

- 1/2" N.C./N.F. x 2"

3шт.

6

A29436

STUD

- 1/2" N.C./N.F. x 5-13/16"

14шт.

7

G2062

CAP - main bearing, rear

1шт.

8

G2060

CAP - main bearing, center

1шт.

9

G2059

CAP - main bearing, front

1шт.

10

G49038

BOLT - 1/2 x 3-3/8" N.C. spec.

4шт.

11

G49059

BOLT

- 1/2 x 4-3/4" N.C. spec.

2шт.

12

A41229

BUSHING

SET - camshaft

1шт.

13

A153552

ADAPTER

-, Serial Range: filter-block

1шт.

14

41-1016

PLUG,Cup, 1"

- 1" cup

1шт.

17

A29268

PLUG

COVER - aux. pump drive hole

1шт.

18

G49404

WASHER

- 17/32 x 27/32 x 1/16"

17шт.

19

A30021

NUT

- 1/2" N.F. hex. spec.

17шт.

20

A29365

STUD - 5/8" N.C. x 3"

2шт.
