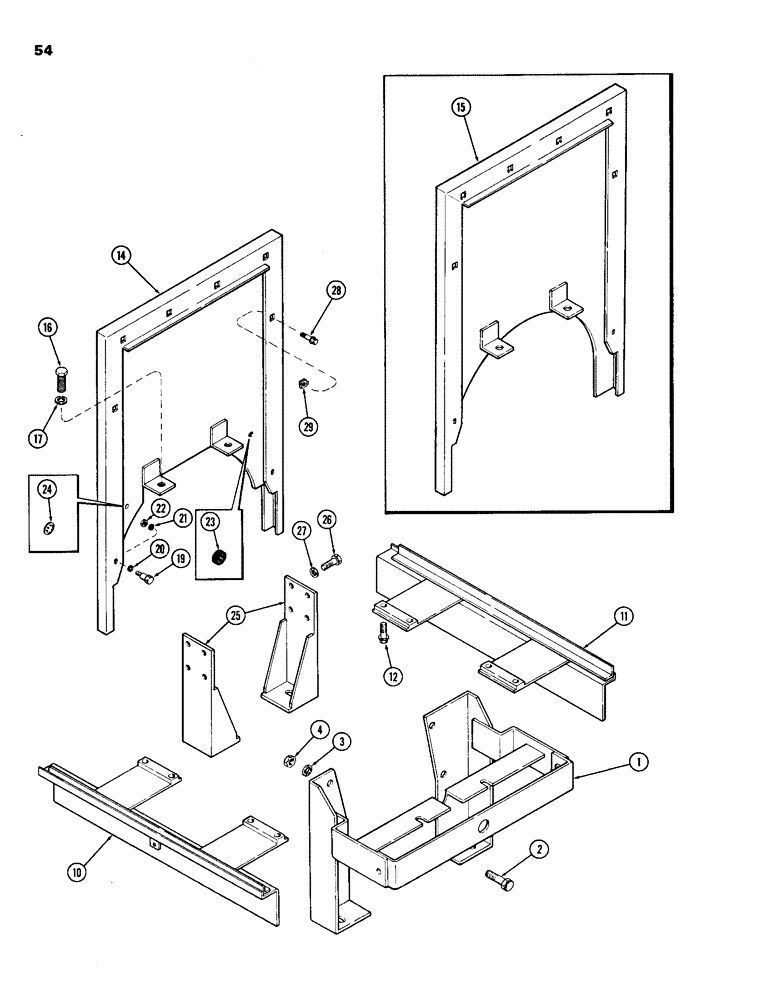

Запчасти Case IH 201 (54) - REAR PANEL AND SUPPORTS

1

A39941

SUPPORT - front, radiator & engine

1шт.

2

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

24-1010

NUT - 5/8" N.C. hex.

4шт.

10

A39976

SUPPORT - side panel, R.H.

1шт.

11

A39977

SUPPORT - side panel, L.H.

1шт.

12

193-537

SCREW - 5/16 x 1-1/4" N.C. hex., sems

8шт.

14

A39963

PANEL - rear (Krider Power Unit)

1шт.

15

A39967

PANEL - rear (Finn Power Unit)

1шт.

16

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

17

92-8

LOCK WASHER,1/2"

2шт.

19

A31230

BOLT - shoulder

2шт.

20

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

2шт.

21

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

2шт.

22

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

2шт.

23

A27338

GROMMET

- fuel line

1шт.

24

205-14

HOLE PLUG BUTTON,3/8"

PLUG - button, 3/8"

1шт.

25

A39938

SUPPORT - engine rear

2шт.

26

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

27

92-8

LOCK WASHER,1/2"

8шт.

28

193-513

SCREW,SEMS, Hex Hd, 5/16"-18 x 1/2"

BOLT - 5/16 x 1/2" N.C. hex., sems

6шт.

29

131-113

SPRING NUT,J, Ret, 5/16"-18

Tinnerman J, Ret, 5/16"-18

6шт.
