Запчасти Case IH 201 (52) - HOOD AND SIDE PANELS

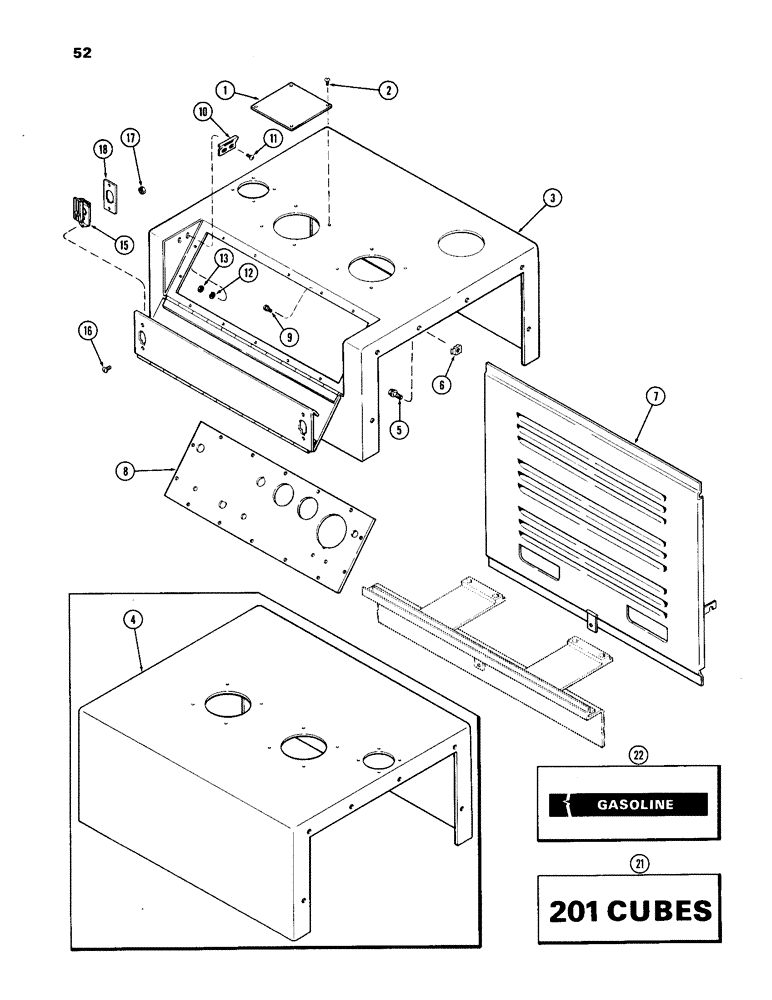

Схема запчастей Case IH 201 - (52) - HOOD AND SIDE PANELS
10
2
9
7
17
22
15
6
18
13
4
11
8
1
5
3
21
16
12

Артикул

Название

Примечание

Количество

1

A64266

COVER - engine lifting eye hole

2шт.

2

187-1000

SCREW - #10-24 x 1/4" rd. hd., self-tapping

8шт.

3

A39969

HOOD - engine (Krider Power Unit)

1шт.

4

A39968

HOOD - engine (Finn Power Unit)

1шт.

5

193-513

SCREW,SEMS, Hex Hd, 5/16"-18 x 1/2"

BOLT - 5/16 x 1/2" N.C. hex., sems

12шт.

6

131-113

SPRING NUT,J, Ret, 5/16"-18

Tinnerman J, Ret, 5/16"-18

12шт.

7

A39973

PANEL - side door

2шт.

8

A64684

PANEL - instrument

1шт.

9

187-1011

SCREW - 1/4-20 x 3/4" pan hd., self-tapping

14шт.

10

T32744

LATCH - instrument panel

2шт.

11

173-261

SCREW - #12-24 x 1/2" rd. hd., mach.

4шт.

12

192-17

LOCK WASHER,#12

Washer, Lock, #12

4шт.

13

129-18

NUT,#12-24

- hex. #12-24

4шт.

15

T31759

LOCK - panel cover, R.H.

1шт.

15

T31758

LOCK - panel cover, L.H.

1шт.

16

182-510

SCREW,Sl Pan Hd, #8 - 32 x 1/2"

- #8-32 x 1/2" pan hd. mach.

4шт.

17

131-29

LOCK NUT,#8-32, GB

NUT - #8-32 Esna lock

4шт.

18

T31757

SPACER - cover lock

2шт.

21

321-2175

DECAL - "201 Cubes"

2шт.

22

321-2174

DECAL - "Gasoline"

2шт.

Выбрано товаров: 20
