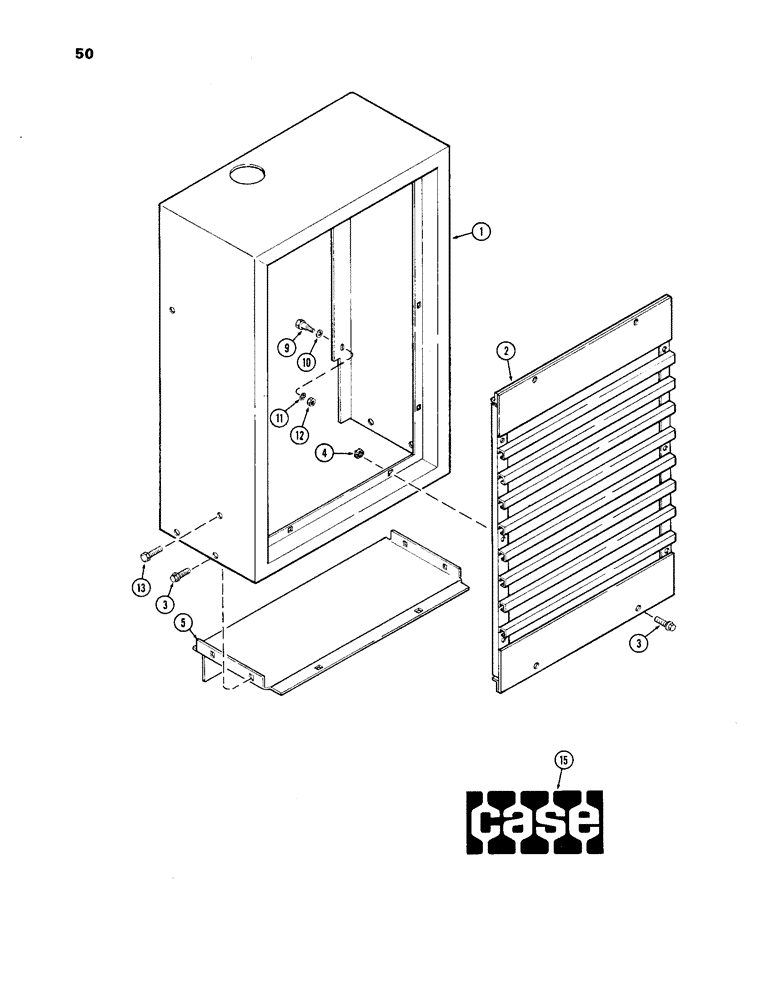

Запчасти Case IH 201 (50) - GRILLE

1

A39949

SHELL - grille

1шт.

2

A39958

GRILLE - radiator

1шт.

3

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

16шт.

4

131-115

NUT

- 1/4" N.C. Tinnerman

16шт.

5

A39357

HOSE

COVER - grille, bottom

1шт.

9

A31230

BOLT - door latch, front

2шт.

11

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

2шт.

12

125-101

NUT - 1/4" N.C. hex.

2шт.

13

121-120

BOLT,Hex Serr, 3/8" - 16 x 3/4"

4шт.

15

321-1308

DECAL

- "Case"

1шт.
