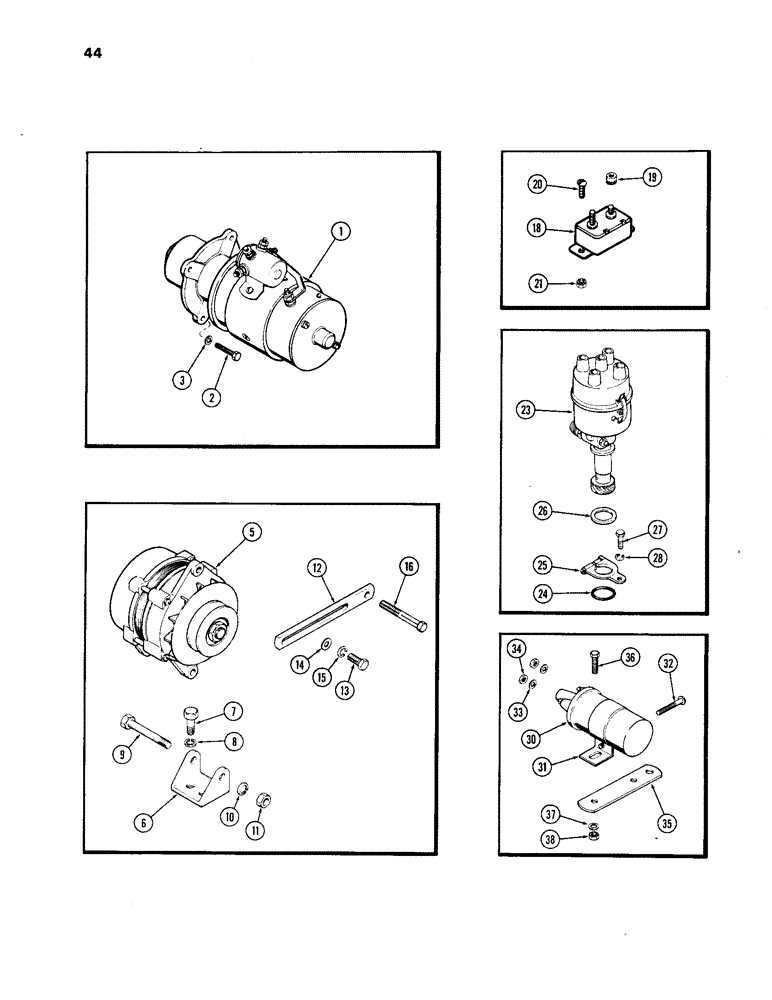

Запчасти Case IH 201 (44) - ELECTRICAL EQUIPMENT MOUNTING

1

A39142

MOTOR

STARTER ASSY. - (See Page 43)

1шт.

2

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

5

A38815

ALTERNATOR

ASSY. - (See Page 41)

1шт.

6

A38492

BRACKET

- alternator mounting

1шт.

7

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

8

92-6

LOCK WASHER,3/8"

2шт.

9

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

12

A62429

STRAP

- alternator adjusting

1шт.

13

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

14

195-103

WASHER,5/16"

- 3/8 x 7/8 x 1/16"

1шт.

15

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

1шт.

16

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N.C. hex.

1шт.

18

A22877

BREAKER,40A

- circuit

1шт.

19

193-1000

NUT,Keps, w/LW,#10-32

- #10 N.F. hex. keps

2шт.

20

182-522

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

- #6 x 1/2" N.C. phillips, pan hd.

2шт.

21

193-1003

NUT,Keps, w/LW,#6-32

- #6 N.C. hex., keps

2шт.

23

A18461

DISTRIBUTOR

ASSY. - (See Page 47)

1шт.

24

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

"O" RING - distributor seal

1шт.

25

A29989

ARM

- distributor advance

1шт.

26

A30080

THRUST WASHER

- thrust

1шт.

27

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

28

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

30

A41820

COIL

- ignition spark

1шт.

31

G46106

BRACKET

- coil

1шт.

32

187-540

SCREW - bracket

1шт.

33

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

34

129-27

NUT,Hex, #10 - 32

- #10 N.F. hex.

2шт.

35

G11705

BRACKET

- coil

1шт.

36

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

2шт.

37

92-5

LOCK WASHER,5/16"

2шт.

38

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

2шт.
