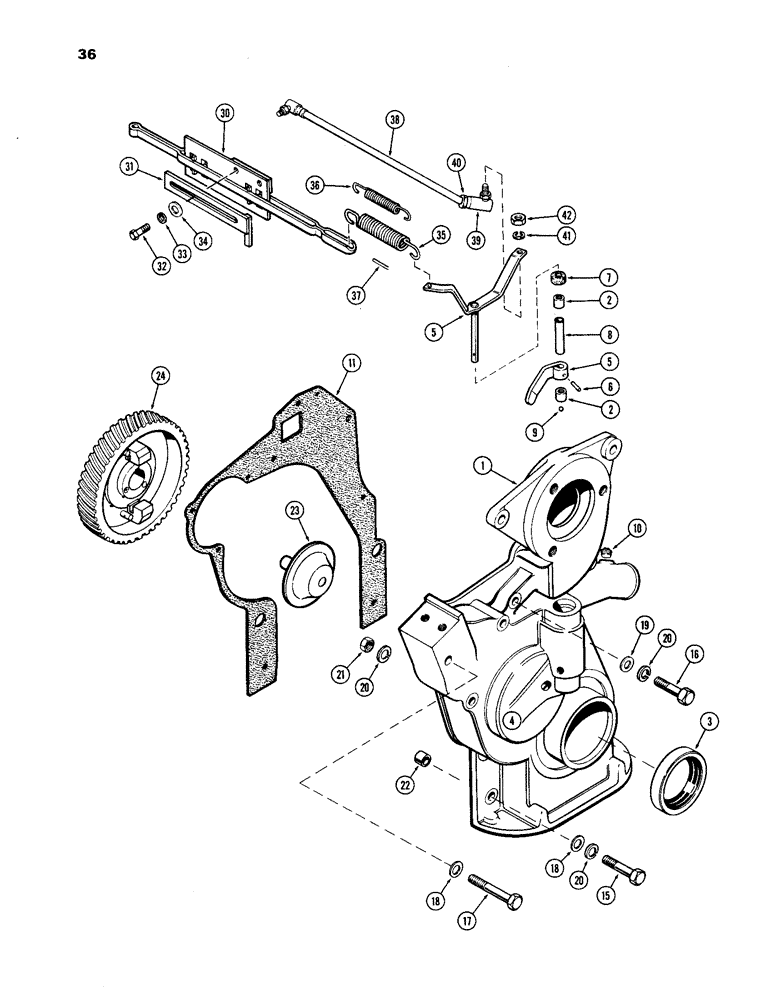

Запчасти Case IH 201 (36) - TIMING GEAR COVER AND GOVERNOR
№
Артикул
Название
Примечание
Количество
1
A39102
COVER
ASSY. - timing gear
1шт.
2
A35822
NEEDLE BEARING,Needle, 9.52mm ID x 14.29mm OD x 12.7mm W
BEARING - needle, governor shaft
2шт.
3
A39110
OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk
- oil, crankshaft front
1шт.
4
A30016
FITTING
PLUG - 1/8" P.T., sltd. hd.
1шт.
5
A39095
LEVER
ASSY. - governor control
1шт.
6
138-57
LOCK PIN,1/8" x 3/4", Slotted
PIN, 1/8" x 3/4", Slotted
1шт.
7
A30011
SEAL
- dust
1шт.
8
A30012
SPACER
- thrust
1шт.
9
211-5
BALL,3/16" Dia
- thrust, . 3/16" Dia
1шт.
11
A38227
GASKET
- timing gear cover
1шт.
15
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
3шт.
15
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
- 3/8 x 1-1/2" N.C. hex.
2шт.
16
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
- 3/8" x 2" N.C. hex.
1шт.
16
13-636
BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5
1шт.
17
13-652
BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5
- 3/8 x 3-1/4" N.C. hex.
3шт.
18
195-25
WASHER,3/8"
5шт.
19
G49400
WASHER
- 13/32 x 1-5/32 x 10 ga.
1шт.
20
92-6
LOCK WASHER,3/8"
10шт.
21
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex.
3шт.
22
A29442
RING
- dowel, 13/32 x 9/16 x 5/8"
2шт.
23
A29957
SHAFT
ASSY. - governor
1шт.
24
G37066
GEAR
- camshaft, w/governor weights
1шт.
30
G45793
ROD
- governor control
1шт.
31
G45792
STOP
GUIDE - control rod
1шт.
32
113-103
BOLT,Hex, 5/16" - 18 x 1", Gr 5
2шт.
33
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
2шт.
34
195-521
WASHER,5/16", SAE
- 11/32 x 11/16 x 1/16"
2шт.
35
G48511
SPRING
- outer, governor (black)
1шт.
36
A37005
SPRING
- inner, governor (red)
1шт.
37
A36169
ROD - fuel shut-off (inside spring)
1шт.
38
G45228
ROD
ASSY. -, Serial Range: governor-carburetor
1шт.
39
A10329
BALL JOINT,1/4" - 28 x 1"
1шт.
40
25-114
NUT,1/4"-28, G5
- 1/4" N.F. hex.
1шт.
41
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
42
25-114
NUT,1/4"-28, G5
- 1/4" N.F. hex.
2шт.
Выбрано товаров: 36
