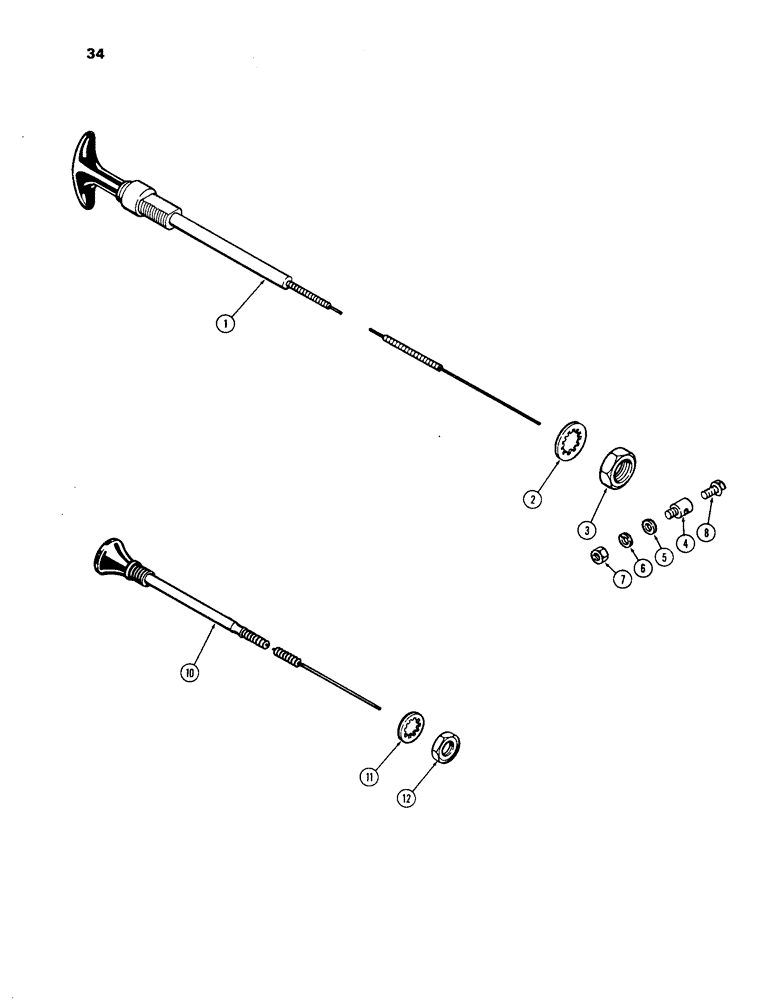

Запчасти Case IH 201 (34) - THROTTLE AND FUEL SHUT-OFF

1

A51010

CONTROL - throttle

1шт.

2

193-62

LOCK WASHER,Int Tooth, 9/16"

WASHER, LOCK, Int Tooth, 9/16"

1шт.

3

129-166

JAM NUT,Jam, 9/16"-18, G5

1шт.

4

A51011

CONNECTOR -, Serial Range: control-carburetor

1шт.

5

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

1шт.

6

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

7

25-104

NUT,1/4"-20, G5

1шт.

8

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

10

A51012

CONTROL - choke

1шт.

11

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

12

86585245

SPECIAL NUT,JAM, 5/8" - 18

- 3/8" N.C. hex.

1шт.
