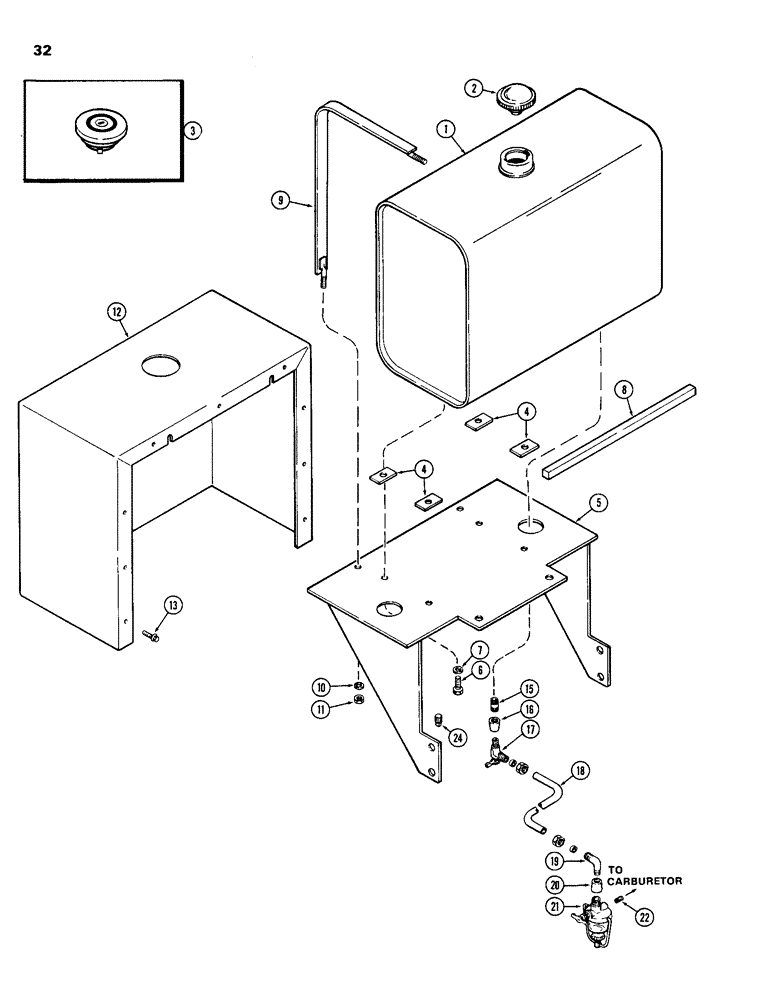

Запчасти Case IH 201 (32) - FUEL TANK AND LINES

1

A39988

TANK - fuel

1шт.

2

A32119

CAP

- fuel tank

1шт.

3

A32120

CAP

- fuel tank, w/lock

1шт.

4

A64694

GASKET - fuel tank mounting

4шт.

5

A39989

SUPPORT - fuel tank

1шт.

6

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

7

92-6

LOCK WASHER,3/8"

4шт.

8

A64695

PAD - foam, mounting (use adhesive 345-19)

1шт.

9

A39993

STRAP - fuel tank mounting

2шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

12

A39995

COVER - fuel tank

1шт.

13

193-545

SCREW,SEMS, Hex Hd, 1/4"-20 x 3/4"

- 1/4 x 3/4" N.C. hex., sems

9шт.

15

217-212

NIPPLE - 3/8" P.T. x 1-1/2", brass

1шт.

16

217-32

COUPLING - reducer, 3/8" P.T. to 1/4" P.T., brass

1шт.

17

217-278

FITTING

VALVE - drain

1шт.

18

A63997

TUBE

LINE - fuel, 25" nylon

1шт.

19

222-5111

ELBOW,9/16"-24 x 1/8" NPTF

- 3/8" tube, 1/4" P.T. x 90deg.

1шт.

20

217-32

COUPLING - reducer, 3/8" P.T. to 1/4" P.T.

1шт.

21

A30049

STRAINER ELEMENT

STRAINER - fuel

1шт.

22

217-200

NIPPLE - 1/8" P.T. x 3/4"

1шт.

A51085

CARBURETOR ASSY. - (Krider Power Unit)

1шт.

A51160

CARBURETOR ASSY. - (Finn Power Unit)

1шт.

24

217-77

PLUG

- 3/8" P.T. sq. hd.

1шт.
