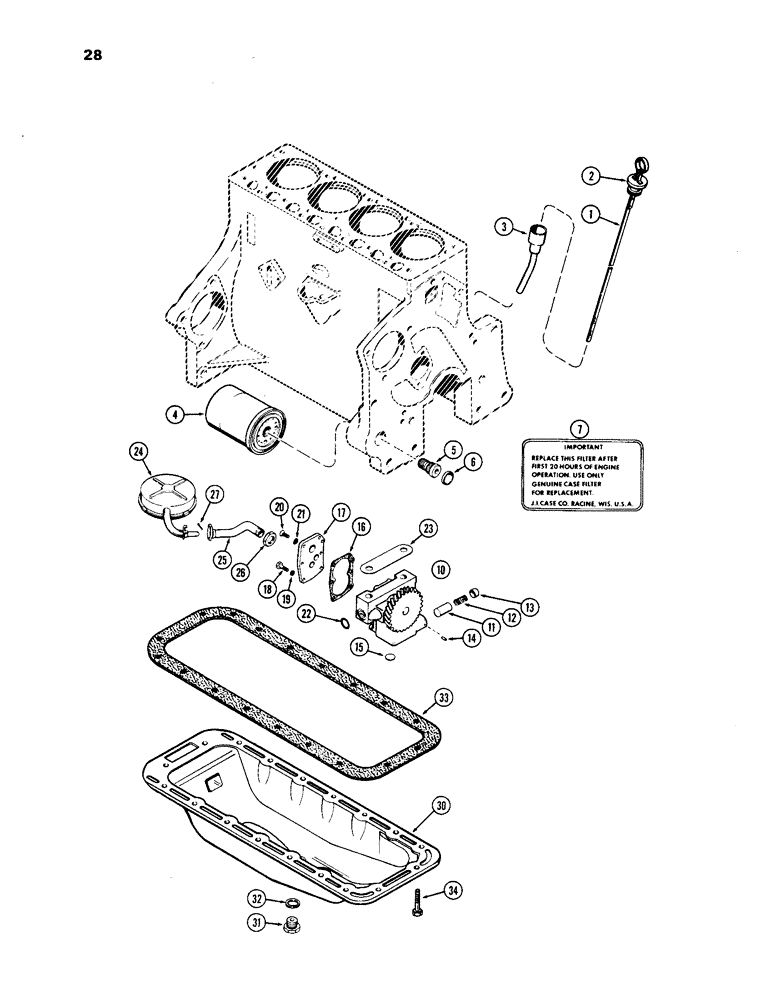

Запчасти Case IH 201 (28) - OIL FILTER AND DIPSTICK

1

A37148

DIPSTICK

- oil level

1шт.

2

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

"O" RING - 47/64 x 7/8 x 1/8"

2шт.

3

A37032

SUPPORT - dipstick

1шт.

4

A37189

FILTER, ELEMENT

FILTER - oil, engine

1шт.

5

A153552

ADAPTER

-, Serial Range: filter-block

1шт.

6

41-1016

PLUG,Cup, 1"

- 1" cup

1шт.

7

321-367

DECAL

- oil filter

1шт.

10

G11844

PUMP, ENGINE OIL

PUMP ASSY. - oil

1шт.

11

A155144

VALVE, PRESSURE RELI

- relief

1шт.

12

G48513

VALVE SPRING

SPRING - relief valve

1шт.

13

A29260

RETAINER

- relief spring

1шт.

14

138-51

LOCK PIN,1/8" x 3/8", Slotted

PIN, 1/8" x 3/8", Slotted

1шт.

15

41-102

PLUG,Exp, 1/2"

- 1/2" expansion

2шт.

16

G46852

GASKET

- pump cover

1шт.

17

NSS

NOT SOLD SEPARAT

COVER - pump body

1шт.

18

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

18

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

3шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

20

73-412

SCREW,Slotted Flat Hd, 1/4"-20 x 3/4"

- 1/4 x 5/8" flat hd. mach.

2шт.

21

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, Ext Csk Tooth, 1/4"

2шт.

22

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - 3/4 x 15/16 x 3/32"

1шт.

23

G11337

SHIM,.002" Thk

Pump to block .002" Thk

1шт.

23

G11338

SHIM,.005" Thk

Pump to block .005" Thk

1шт.

24

A39036

FLOAT

ASSY. - oil suction

1шт.

25

A39035

TUBE

PIPE - suction

1шт.

26

223-207

LOCK NUT

NUT - 3/8"-18 lock

1шт.

27

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

30

A36717

PAN

ASSY. - oil

1шт.

31

A14280

PLUG

- drain

1шт.

32

A58608

GASKET

- plug

1шт.

33

NSS

NOT SOLD SEPARAT

GASKET - oil pan (See Page 31)

1шт.

34

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - 5/16 x 3/4" N.C. hex., sems

18шт.
