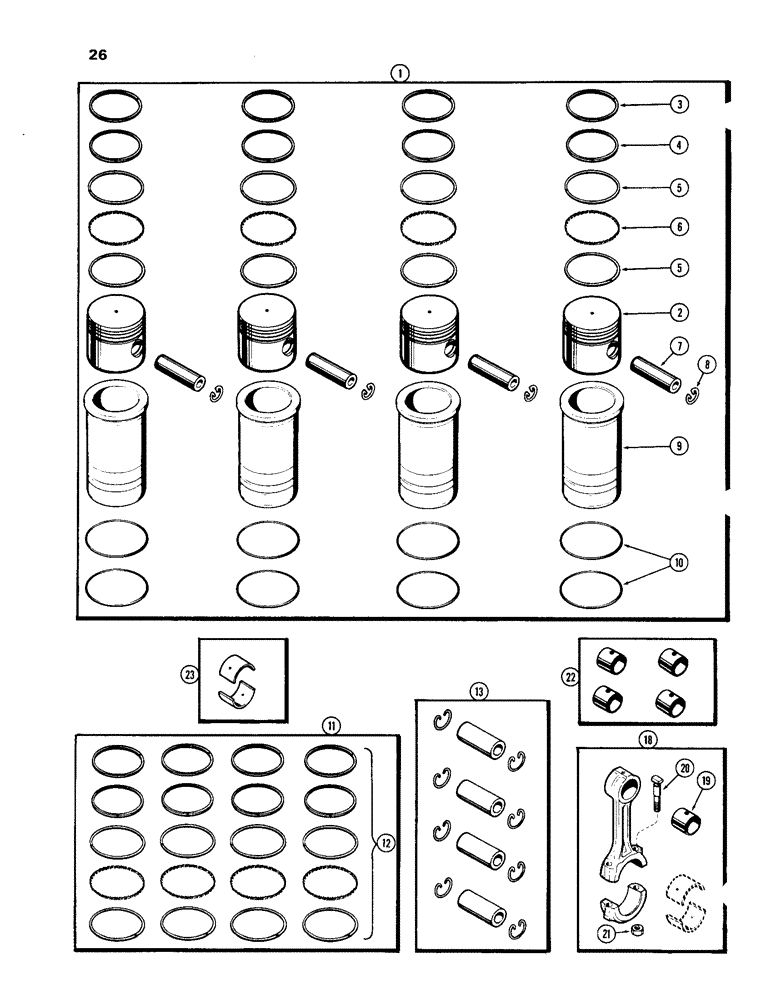

Запчасти Case IH 201 (26) - PISTON ASSEMBLY AND CONNECTING RODS

1

A40797

SPARE PART

PISTON & SLEEVE ASSY. - (Set of 4)

1шт.

2

A36863

PISTON

- cylinder, 3-15/16" bore

4шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, 1st groove (Order Ref. 12)

4шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, 2nd groove (Order Ref. 12)

4шт.

5

NSS

NOT SOLD SEPARAT

RAIL - oil control, 3rd groove (Order Ref. 12)

8шт.

6

NSS

NOT SOLD SEPARAT

SPACER - oil control rail, 3rd groove (Order Ref. 12)

4шт.

7

NSS

NOT SOLD SEPARAT

PIN - piston (See Ref. 13)

4шт.

8

A26915

RING, SNAP

RING - snap, piston pin

8шт.

9

A36862

SLEEVE

- piston (cylinder liner)

4шт.

10

G46888

O-RING,3.737" ID x 3.943" OD

"O" RING - sleeve packing

8шт.

11

A40605

PISTON RING SET

RING SET - piston re-ring (Set of 4)

1шт.

12

A40604

RING

SET - piston re-ring (Set of 1)

4шт.

13

A36030

KIT

PIN KIT - piston, w/ret. rings (Set of 4)

1шт.

18

G11172

STEM

ROD ASSY. - connecting

4шт.

19

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (See Ref. 22)

1шт.

20

G11701

BOLT

- conn. rod cap

2шт.

21

A39286

NUT

- conn. rod bolt

2шт.

22

G11922

BUSHING

KIT - piston pin (Set of 4)

1шт.

23

A36500

SEAL

LINER - conn. rod brg. (Std.)(Set of 2)

4шт.

23

A36501

BEARING LINER

LINER - conn. rod brg. (-.002")(Set of 2)

4шт.

23

A36502

LINING

LINER - conn. rod brg. (-.010")(Set of 2)

4шт.

23

A36503

BEARING LINER

LINER - conn. rod brg. (-.020")(Set of 2)

4шт.

23

A36504

KIT

LINER - conn. rod brg. (-.030")(Set of 2)

4шт.
