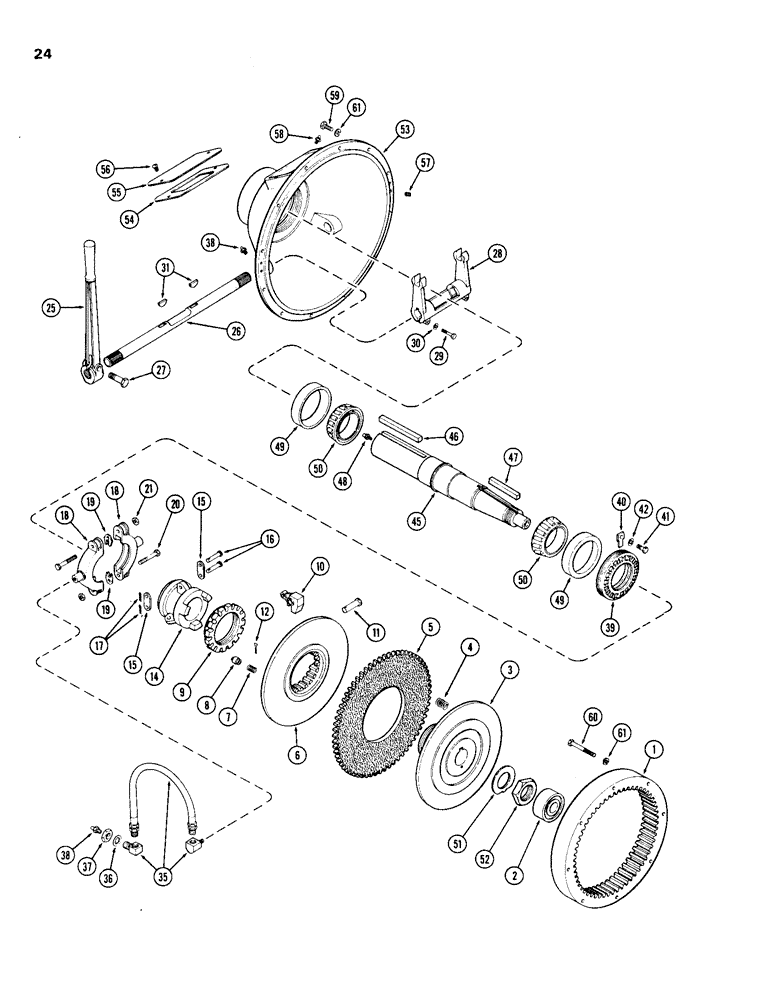

Запчасти Case IH 201 (24) - P.T.O. CLUTCH

A39998

CLUTCH ASSY. - P.T.O.

1шт.

1

A44293

RING

- driving

1шт.

2

A44292

BEARING - ball, pilot

1шт.

3

A44296

PLATE

- clutch hub and back

1шт.

4

A10441

SPRING

- clutch release

6шт.

5

A44297

PLATE - clutch driving, sintered

1шт.

6

A44298

PLATE

- floating

1шт.

NSS

NOT SOLD SEPARAT

YOKE ASSY. - P.T.O. adjusting

1шт.

7

A40197

SPRING

- adjusting lock pin

1шт.

8

A42077

PIN

- adjusting lock

1шт.

9

A31133

YOKE

- clutch adjusting

1шт.

10

A31134

LEVER

- clutch finger

4шт.

11

A40190

PIN

- clutch clevis

4шт.

12

A43383

SPLIT PIN

PIN - cotter

4шт.

NSS

NOT SOLD SEPARAT

SLEEVE ASSY. - clutch sliding

1шт.

14

A10445

SLEEVE - clutch sliding

1шт.

15

A31137

DRAG LINK

LINK - clutch lever

8шт.

16

A40192

AXLE PIN,8mm OD x 26.16mm L

PIN - lever link

8шт.

17

A43382

PIN, SPLIT (COTTER)

PIN - cotter, lever link

8шт.

A31140

COLLAR

ASSY. - P.T.O clutch

1шт.

18

NSS

NOT SOLD SEPARAT

COLLAR - sliding sleeve (2 halves)

1шт.

19

A30186

SHIM - collar

2шт.

20

NSS

NOT SOLD SEPARAT

SCREW - collar

2шт.

21

230-4616

LOCK NUT,3/8"-24, GA

NUT - 3/8" N.F. hex., Gripco

2шт.

25

B50856

LEVER - P.T.O. hand

1шт.

26

A44291

SHAFT - operating lever

1шт.

27

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

28

B50820

FORK

YOKE - throwout

1шт.

29

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

2шт.

30

193-78

LOCK WASHER,3/8"

WASHER - Shakeproof, int. 3/8"

2шт.

31

A44148

KEY

- yoke

2шт.

35

B50827

HOSE ASSY. - clutch flexible

1шт.

36

193-84

LOCK WASHER,5/8"

WASHER - Shakeproof, int. 5/8"

1шт.

37

129-167

JAM NUT,Jam, 5/8"-18, G5

- 5/8" N.F. hex.

1шт.

38

219-87

LUBE NIPPLE,1/4" - 28 NPTF

GREASE FITTING - 1/4-28 x 1/2" str.

2шт.

39

A43327

RETAINER

- drive shaft bearing, drive end

1шт.

40

A40251

LOCK - bearing, retainer

1шт.

41

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

1шт.

42

193-83

LOCK WASHER,Int Tooth, 5/16"

WASHER - Shakeproof, 5/16" int.

1шт.

45

A44290

SHAFT

- P.T.O.

1шт.

46

A40305

KEY

- 5/8 x 5/8 x 4-3/8"

1шт.

47

A31136

KEY

- hub, 1/4 x 1/4 x 2-1/8"

1шт.

48

219-23

LUBE NIPPLE,1/4" - 18 NPTF

GREASE FITTING - 1/4" P.T. str.

1шт.

49

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

BEARING - cup, drive shaft

2шт.

50

A26847

ROLLER BEARING,2.5" ID x 0.866"

BEARING - cone, drive shaft

2шт.

51

A9273

LOCK WASHER

- hub nut tabbed

1шт.

52

A40184

NUT

- clutch hub

1шт.

53

A44289

HOUSING

- P.T.O.

1шт.

54

A40249

GASKET - cover plate

1шт.

55

A40257

PLATE - cover

1шт.

56

193-515

SCREW,SEMS, But Hd, 1/4"-20 x 1/2"

- 1/4 x 1/2" N.C. truss hd. sltd., sems

2шт.

57

178-639

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

SCREW - 5/16 x 5/16" N.C. hex. sckt. hd., cup pt. set

1шт.

58

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - 1/8" P.T. str.

1шт.

59

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

12шт.

60

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1/2" N.C. hex.

8шт.

61

92-6

LOCK WASHER,3/8"

20шт.
