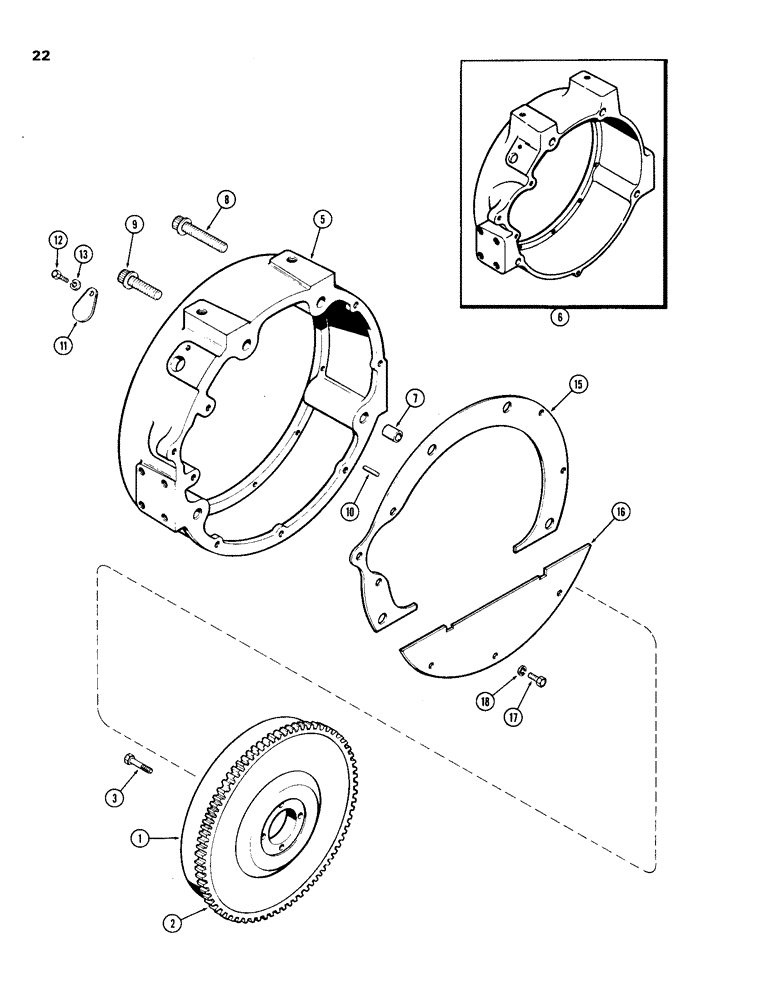

Запчасти Case IH 201 (22) - FLYWHEEL AND HOUSING

1

A51086

FLYWHEEL

ASSY.

1шт.

2

G11710

GEAR

- ring, 135 teeth

1шт.

3

28-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 8

- 7/16 x 1-1/2" N.F. hex.

4шт.

5

A50830

HOUSING - flywheel (Krider Power Unit)

1шт.

6

A51112

HOUSING - flywheel (Finn Power Unit)

1шт.

7

D30578

SPACER

DOWEL - housing to engine block

2шт.

8

166-121

12 PT SCREW,Flg, 5/8" - 11 x 3 1/2", Gr 8

BOLT - 5/8 x 3-1/2" N.C. Ferry cap

2шт.

9

166-90

BOLT

- 1/2 x 2-1/4" N.C. Ferry cap

2шт.

10

138-63

LOCK PIN,1/8" x 1 1/4", Slotted

PIN, , Timing 1/8" x 1 1/4", Slotted

1шт.

11

A29068

COVER

- timing hole

1шт.

12

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

13

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

15

A51302

COVER - dust, upper (Krider Power Unit)

1шт.

16

A51303

COVER - dust, lower (Krider Power Unit)

1шт.

17

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

5шт.

18

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.
