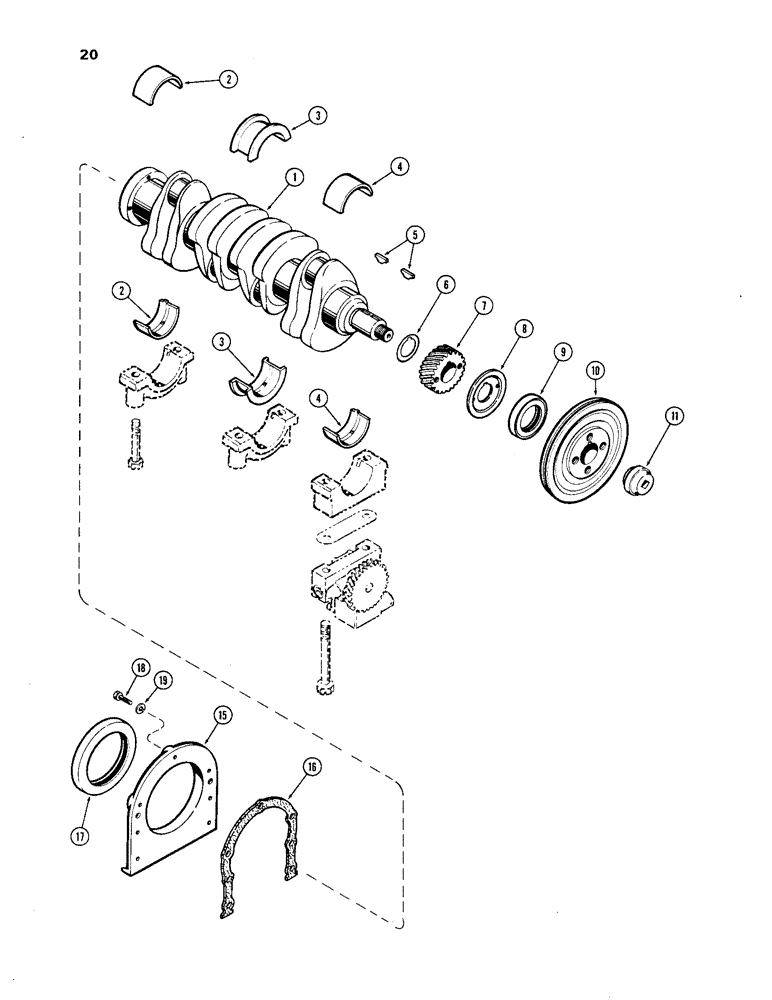

Запчасти Case IH 201 (20) - CRANKSHAFT

1

A39150

CRANKSHAFT

1шт.

2

A36495

BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W

LINER - main bearing, rear (Std.)

1шт.

2

A36496

LINING

LINER - main bearing, rear (-.002")

1шт.

2

A36497

BEARING LINER,73.44mm ID x 78.54mm OD x 39.69mm W

LINER - main bearing, rear (-.010")

1шт.

2

A36498

KIT

LINER - main bearing, rear (-.020")

1шт.

2

A36499

BEARING LINER

LINER - main bearing, rear (-.030")

1шт.

3

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

LINER - main bearing, center (Std.)

1шт.

3

A36491

LINING

LINER - main bearing, center (-.002")

1шт.

3

A36492

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINER - main bearing, center (-.010")

1шт.

3

A36493

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINER - main bearing, center (-.020")

1шт.

3

A36494

LINING

LINER - main bearing, center (-.030")

1шт.

4

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

LINER - main bearing, front (Std.)

1шт.

4

A36481

LINING

LINER - main bearing, front (-.002")

1шт.

4

A36482

BEARING LINER,73.44mm ID x 78.54mm OD x 32.66mm W

LINER - main bearing, front (-.010")

1шт.

4

A36483

LINING

LINER - main bearing, front (-.020")

1шт.

4

A36484

LINING

LINER - main bearing, front (-.030")

1шт.

5

A39132

KEY

- pulley & timing gear

2шт.

6

A29293

SHIM,.010" Thk

Thrust .010" Thk

1шт.

7

A39288

GEAR

- crankshaft timing

1шт.

8

A29259

SLINGER

- oil

1шт.

9

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, crankshaft front

1шт.

10

A39931

PULLEY

- fan drive

1шт.

11

A35673

NUT

- pulley retaining

1шт.

15

A38390

RETAINER

- rear oil seal

1шт.

16

A39188

GASKET

- retainer

1шт.

17

A39111

OIL SEAL

- oil, crankshaft rear

1шт.

18

113-25

X

BOLT - 1/4 x 3/4" N.C. hex.

4шт.

18

113-26

BOLT

- 1/4 x 1" N.C. hex.

3шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.
