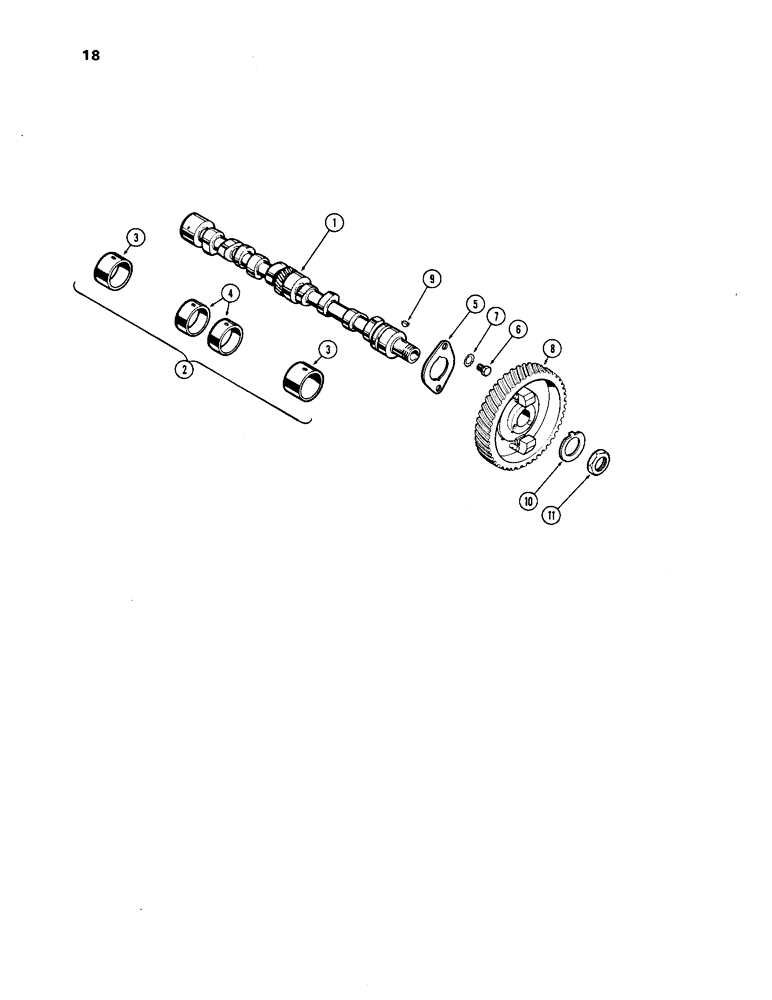

Запчасти Case IH 201 (18) - CAMSHAFT

1

G2091

CAMSHAFT

1шт.

2

A41229

BUSHING

SET - camshaft

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - front & rear (1-7/32" wide)

2шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - center (1/2" wide)

2шт.

5

A29290

PLATE

- thrust, camshaft

1шт.

6

A30056

SCREW,Hex, 5/16" - 18 x 1/2"

BOLT - 5/16 x 1/2" N.C. spec.

2шт.

7

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

8

G37066

GEAR

- camshaft timing

1шт.

9

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

10

A29438

LOCK NUT

WASHER - tab, camshaft nut

1шт.

11

A30063

NUT

- camshaft

1шт.
