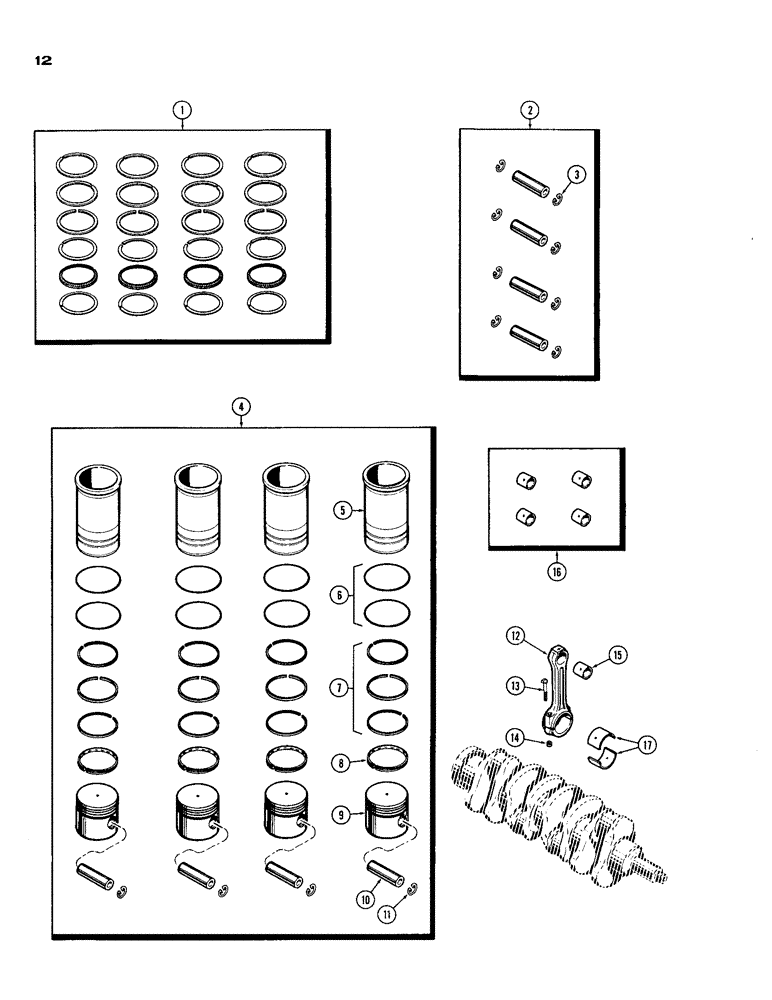

Запчасти Case IH 188 (12) - PISTONS, SLEEVES AND CONNECTING RODS, SPARK IGNITION ENGINE

1

G11999

RING

SET - piston, 2 in 1 chrome

1шт.

2

A36030

KIT

PIN KIT - piston

1шт.

3

O5713AB

X

RING - retaining

8шт.

4

A36031

SLEEVE

PISTON & SLEEVE - matched set of 4

1шт.

5

G2090

SLEEVE

- cylinder

4шт.

6

G46888

O-RING,3.737" ID x 3.943" OD

"O" RING - sleeve packing

8шт.

7

G4807

RING

- compression (See ref. 1)

12шт.

8

G4809

RING

- oil control (See ref. 1)

4шт.

9

G2092

PISTON

4шт.

10

NSS

NOT SOLD SEPARAT

PIN - piston (See ref. 2)

1шт.

11

05713AB

RING - retaining (See ref. 2)

8шт.

12

A49017

X

CONNECTING ROD ASSY

4шт.

13

G11701

BOLT

- cap

2шт.

14

G49060

NUT

- cap bolt

2шт.

15

NSS

NOT SOLD SEPARAT

BUSHING - (See ref. 16)

1шт.

16

G11922

BUSHING

- connecting rod, set of 4

1шт.

17

A36500

SEAL

LINERS - brg., conn. rod (Standard)

4шт.

17

A36501

BEARING LINER

LINERS - brg., conn. rod (.002" undersize)

4шт.

17

A36502

LINING

LINERS - brg., conn. rod (.010" undersize)

4шт.

17

A36503

BEARING LINER

LINERS - brg., conn. rod (.020" undersize)

4шт.

17

A36504

KIT

LINERS - brg. conn. rod (.030" undersize)

4шт.
