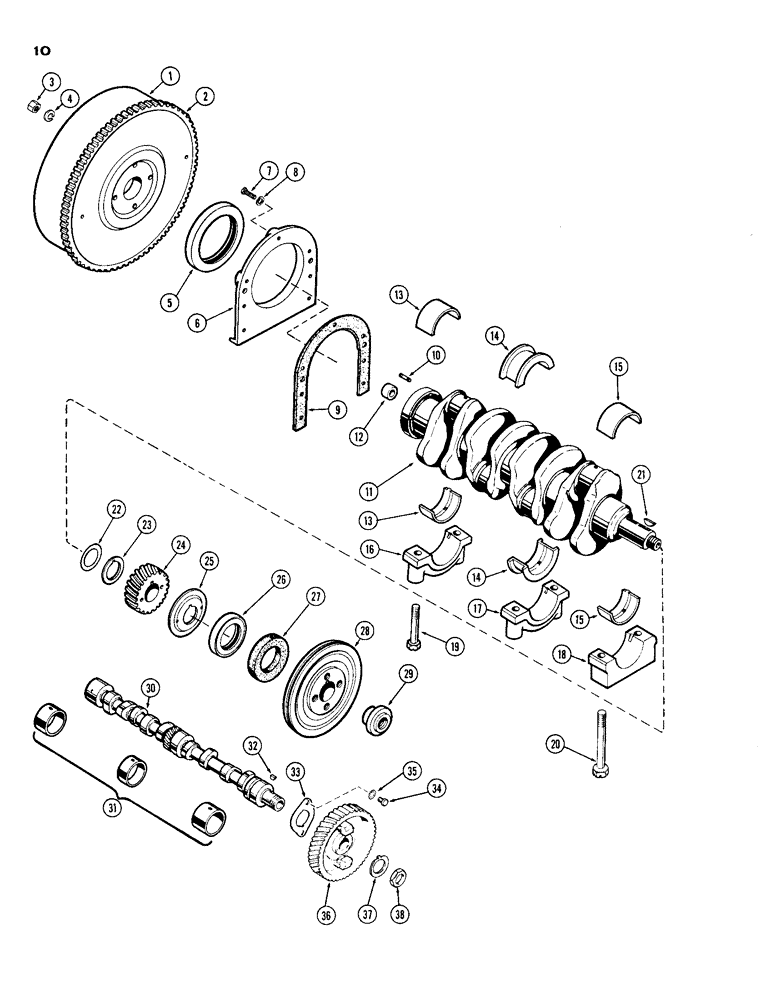

Запчасти Case IH 188 (10) - CRANKSHAFT AND FLYWHEEL, CAMSHAFT, SPARK IGNITION ENGINE

1

G37092

FLYWHEEL ASSY

1шт.

2

G11710

GEAR

- ring (135T)

1шт.

3

25-117

NUT,7/16"-20, G5

- flywheel stud, 7/16" N.F. hex

4шт.

4

92-7

LOCK WASHER,7/16"

4шт.

5

A36610

OIL SEAL

OIL SEAL - rear, crankshaft

1шт.

6

G2017

RETAINER

- oil seal

1шт.

7

26-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- 1/4" x 3/4" N.C. hex. hd. ( replaced 13-412 )

4шт.

7

26-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

- 1/4" x 1" N.C. hex hd ( replaced 13-416 )

3шт.

8

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

9

G46802

GASKET

- rear oil seal retainer

1шт.

10

G49519

STUD - flywheel to crankshaft (7/16" x 2-3/4")

4шт.

11

G11876

CRANKSHAFT

( replaced A49024 )

1шт.

12

V3370

BUSHING - pilot

1шт.

13

A36495

BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W

LINERS - rear bearing (Standard)

1шт.

13

A36496

LINING

LINERS - rear bearing (.002" undersize)

1шт.

13

A36497

BEARING LINER,73.44mm ID x 78.54mm OD x 39.69mm W

LINERS - rear bearing (.010" undersize)

1шт.

13

A36498

KIT

LINERS - rear bearing (.020" undersize)

1шт.

13

A36499

BEARING LINER

LINERS - rear bearing (.030" undersize)

1шт.

14

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

LINERS - center brg. (Standard)

1шт.

14

A36491

LINING

LINERS - center brg. (.002" undersize)

1шт.

14

A36492

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINERS - center brg. (.010" undersize)

1шт.

14

A36493

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINERS - center brg. (.020" undersize)

1шт.

14

A36494

LINING

LINERS - center brg. (.030" undersize)

1шт.

15

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

LINERS - front bearing (Standard)

1шт.

15

A36481

LINING

LINERS - front bearing (.002" undersize)

1шт.

15

A36482

BEARING LINER,73.44mm ID x 78.54mm OD x 32.66mm W

LINERS - front bearing (.010" undersize)

1шт.

15

A36483

LINING

LINERS - front bearing (.020" undersize)

1шт.

15

A36484

LINING

LINERS - front bearing (.030" undersize)

1шт.

16

G2062

CAP - rear bearing

1шт.

17

G2060

CAP - center bearing

1шт.

18

G2059

CAP - front bearing

1шт.

19

G49038

BOLT - bearing cup (1/2" x 3-3/8")

4шт.

20

G49059

BOLT

- front bearing cap (1/2" x 4-3/4")

2шт.

21

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley & gear to crankshaft

2шт.

22

VT3368

X

SHIM - crankshaft thrust (.010")

1шт.

23

VT3377

X

SPACER - crankshaft thrust

1шт.

24

VT3225

X

GEAR - crankshaft

1шт.

25

VT3220

X

SLINGER - oil

1шт.

26

A36609

OIL SEAL

OIL SEAL - front, crankshaft

1шт.

27

VT3380

DUST SEAL (Not used after Eng. #2112981) (Order A36609)

1шт.

28

G11342

X

PULLEY - fan & generator drive

1шт.

29

A35673

NUT

-, Serial Range: pulley-crankshaft

1шт.

30

G2091

CAMSHAFT

1шт.

31

A36409

X

BUSHING SET - camshaft

1шт.

32

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Gear to camshaft #6, 5/32" x 5/8"

1шт.

33

VT3365

X

PLATE - thrust, camshaft

1шт.

34

VT4500

X

SCREW - thrust plate

2шт.

35

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

36

G37066

GEAR

- camshaft

1шт.

37

VT4517

X

LOCK - camshaft nut

1шт.

38

VT4536

X

NUT - camshaft

1шт.
