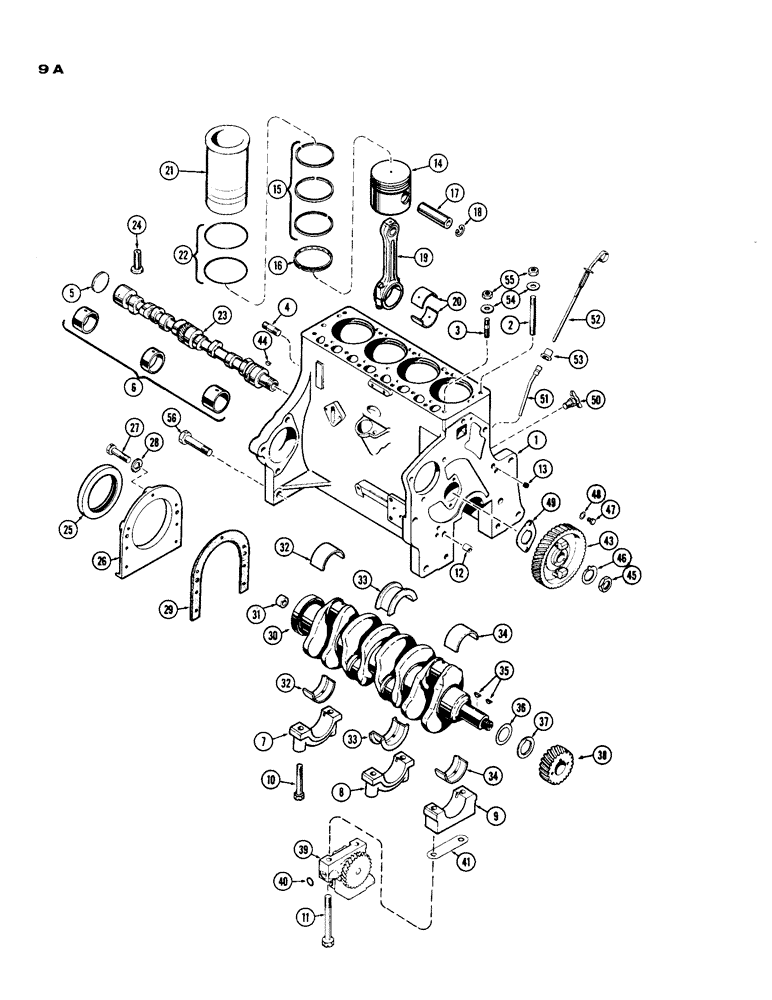

Запчасти Case IH 188 (09A) - CYLINDER BLOCK ASSEMBLY, SPARK IGNITION ENGINE, WITHOUT OIL FILLER HOLE

G10508

SHORT BLOCK ASSY - (See Page 9)

1шт.

1

A49026

BLOCK ASSY - stripped

1шт.

2

VT4515

X

STUD - head (1/2" x 5-7/8")

14шт.

3

VT4503

X

STUD - head (1/2" x 2")

3шт.

4

VT3713

X

STUD - to flywheel hsg. (5/8" x 2-1/4")

2шт.

5

VT3398

X

PLUG - rear, camshaft opening

1шт.

6

A36409

X

BUSHING SET - camshaft

1шт.

7

G2062

CAP - rear bearing, crankshaft

1шт.

8

G2060

CAP - ctr. bearing, crankshaft

1шт.

9

G2059

CAP - frt. bearing, crankshaft

1шт.

10

G49038

BOLT - bearing cap (1/2" x 3-3/8")

4шт.

11

G49059

BOLT

- frt. bearing cap (1/2" x 4-3/4")

2шт.

12

VT4535

X

RING - dowel

2шт.

13

VT3395

X

PLUG - oil gallery

1шт.

14

G2092

PISTON

- (See Page 13)

4шт.

15

G4807

RING

- compression (See Page 13)

12шт.

16

G4809

RING

- oil (See Page 13)

4шт.

17

NSS

NOT SOLD SEPARAT

PIN - wrist (See Page 13)

4шт.

18

O5713AB

X

RING - retaining (See Page 13)

8шт.

19

A49017

X

CONNECTING ROD ASSY - (See Page 13)

4шт.

20

A36500

SEAL

LINERS - conn. rod (See Page 13)

4шт.

21

G2090

SLEEVE

- cylinder (See Page 13)

4шт.

22

G46888

O-RING,3.737" ID x 3.943" OD

"O" RING - sleeve seal

8шт.

23

G2091

CAMSHAFT

1шт.

24

VT3236

X

TAPPET - valve

8шт.

25

A36610

OIL SEAL

OIL SEAL - rear, crankshaft

1шт.

26

G2017

RETAINER

- rear oil seal

1шт.

27

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

27

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

28

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

29

G46802

GASKET

- retainer

1шт.

30

A49024

CRANKSHAFT - (See Page 11)

1шт.

31

VT3370

X

BUSHING - pilot

1шт.

32

A36495

BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W

LINERS - rear brg., Std. (See Page 11)

1шт.

33

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

LINERS - center brg., Std. (See Page 11)

1шт.

34

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

LINERS - rear brg. Std. (See Page 11)

1шт.

35

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - crankshaft gear & pulley

2шт.

36

VT3368

X

SHIM - crankshaft thrust

1шт.

37

VT3377

X

SPACER - crankshaft thrust

1шт.

38

VT3225

X

GEAR - crankshaft

1шт.

39

A49022

X

OIL PUMP ASSY - (See Page 15)

1шт.

40

O8416AB

X

"O" RING - oil port

1шт.

41

G11337

SHIM,.002" Thk

Pump to block .002" Thk

2шт.

41

G11338

SHIM,.005" Thk

Pump to block .005" Thk

1шт.

43

G37066

GEAR

- camshaft

1шт.

44

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Gear to camshaft #6, 5/32" x 5/8"

1шт.

45

VT4536

X

NUT -, Serial Range: gear-camshaft

1шт.

46

VT4517

X

LOCKWASHER - camshaft nut

1шт.

47

VT4500

X

SCREW - thrust plate

2шт.

48

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

49

VT3365

X

PLATE - thrust, camshaft

1шт.

50

217-103

COCK, DRAIN

DRAIN COCK - cylinder block

1шт.

51

G45139

BRACKET

SUPPORT - dipstick

1шт.

52

G37037

DIPSTICK

- oil level

1шт.

53

G46892

OIL SEAL

- rubber, dipstick

1шт.

54

G49404

WASHER

- head stud

14шт.

55

VT3361

X

NUT - head stud

19шт.

56

VT3503

X

BOLT - engine to torque tube

2шт.
