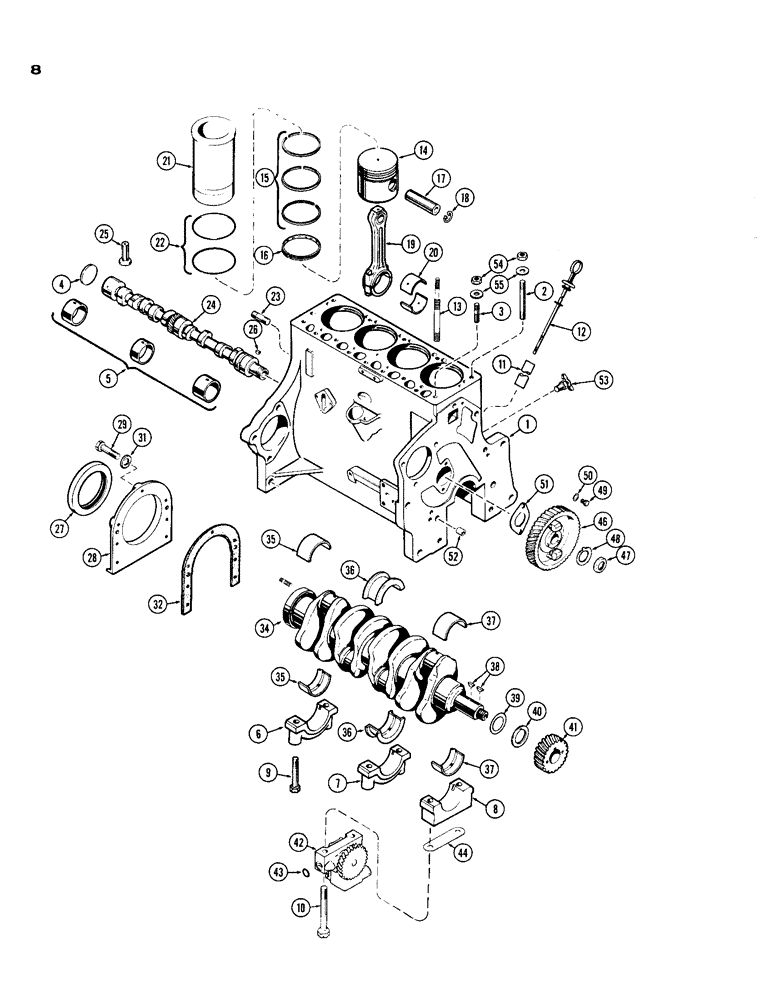

Запчасти Case IH 188 (08) - CYLINDER BLOCK ASSEMBLY, SPARK IGNITION ENGINE, WITH OIL FILLER HOLE

A40595

X

SHORT BLOCK ASSY (See Page 9B)

1шт.

1

A40593

BLOCK ASSY - stripped

1шт.

2

VT4515

X

STUD - head (1/2" x 5-7/8")

14шт.

3

VT4503

X

STUD - head (1/2" x 2")

3шт.

4

VT3398

X

PLUG - rear camshaft opening

1шт.

5

A36409

X

BUSHING SET - camshaft

1шт.

6

G2062

CAP - rear bearing, crankshaft

1шт.

7

G2060

CAP - center bearing, crankshaft

1шт.

8

G2059

CAP - front bearing, crankshaft

1шт.

9

G49038

BOLT - bearing caps (1/2" x 3-3/8")

4шт.

10

G49059

BOLT

- front brg. cap (1/2" x 4-3/4")

2шт.

11

A36774

X

TUBE - oil filler and dipstick

1шт.

12

A36775

X

DIPSTICK - oil level

1шт.

13

A36780

STUD

- head and cover

2шт.

14

G2092

PISTON

- (See Page 13)

4шт.

15

G4807

RING

- compression (See Page 13)

12шт.

16

G4809

RING

- oil (See Page 13)

4шт.

17

NSS

NOT SOLD SEPARAT

PIN - wrist (See Page 13)

4шт.

18

O5713AB

X

RING - retaining (See Page 13)

8шт.

19

A49017

X

CONNECTING ROD ASSY - (See Page 13)

4шт.

20

A36500

SEAL

LINERS - conn. rod (See Page 13)

4шт.

21

G2090

SLEEVE

- cylinder (See Page 13)

4шт.

22

G46888

O-RING,3.737" ID x 3.943" OD

"O" RING - sleeve seal

8шт.

23

VT3531

X

STUD - block to torque tube (5/8" x 3")

2шт.

24

G2091

CAMSHAFT

1шт.

25

VT3236

X

TAPPET - valve

8шт.

26

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Camshaft timing gear #6, 5/32" x 5/8"

1шт.

27

A49851

KIT

OIL SEAL - rear, crankshaft

1шт.

28

G2017

RETAINER

- rear oil seal

1шт.

29

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

29

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Retainer Hex, 1/4"-20 x 1", G5

3шт.

31

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

32

G46802

GASKET

- retainer

1шт.

34

A49024

CRANKSHAFT - (See Page 11)

1шт.

35

A36495

BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W

LINERS - rear brg., std. (See Page 11)

1шт.

36

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

LINERS - center brg., std (See Page 11)

1шт.

37

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

LINERS - front brg., std (See Page 11)

1шт.

38

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - crankshaft gear & pulley

2шт.

39

VT3368

X

SHIM - crankshaft front

1шт.

40

VT3377

X

SPACER - crankshaft thrust

1шт.

41

VT3225

X

GEAR - crankshaft

1шт.

42

A49022

X

OIL PUMP ASSY - (See Page 15)

1шт.

43

O8416AB

X

"O" RING - oil port

1шт.

44

G11337

SHIM,.002" Thk

Pump to block .002" Thk

2шт.

44

G11338

SHIM,.005" Thk

Pump to block .005" Thk

1шт.

46

G37066

GEAR

- camshaft

1шт.

47

VT4536

X

NUT -, Serial Range: gear-camshaft

1шт.

48

VT4517

X

WASHER - lock, camshaft nut

1шт.

49

VT4500

X

SCREW - thrust plate

2шт.

50

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

51

VT3365

X

PLATE - thrust, camshaft

1шт.

52

VT4535

X

RING - dowel

2шт.

53

217-103

COCK, DRAIN

DRAIN COCK

1шт.

54

VT3361

X

NUT - head studs

19шт.

55

G49404

WASHER

- cyl. head studs

19шт.

168-66

DRIVE SCREW,Type U, Rnd Hd, #6 x 1/4"

serial plate rivits

1шт.
