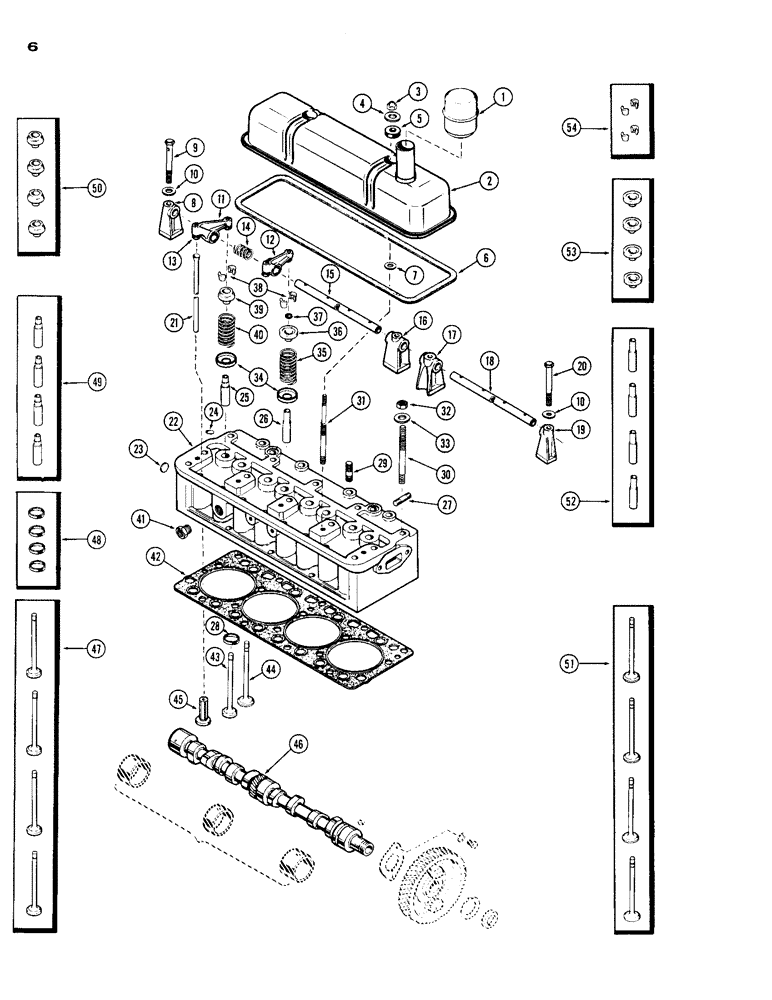

Запчасти Case IH 188 (06) - CYLINDER HEAD ASSEMBLY, SPARK IGNITION ENGINE

1

A36608

CAP

- oil filler and breather

1шт.

2

G37060

COVER - valve

1шт.

3

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

4

G49400

WASHER

- cover nut (13/32" x 1-5/32" x 10 GA.)

2шт.

5

G46867

GROMMET

- rubber

2шт.

6

G46866

GASKET

- valve, Serial Range: cover-head

1шт.

7

G11352

BUSHING

SPACER - valve cover

2шт.

8

A36615

BRACKET

- rear, rocker arm shaft

1шт.

9

G49067

BOLT

- drilled, rear rocker bracket

1шт.

10

VT4504

WASHER

- rocker bracket bolts

5шт.

11

G45770

ARM

ROCKER ARM - R.H. (incl. ref. 13)

4шт.

12

G45771

ARM

ROCKER ARM - L.H. (incl. ref. 13)

4шт.

13

G49075

ADJUSTMENT SCREW,3/8" - 24 x 0.50"

- adjusting rocker arm

8шт.

14

G48501

SPRING

- rocker shaft

4шт.

15

G11747

X

SHAFT - rear, rocker arm

1шт.

16

G2101

BRACKET

- center, rockershaft

1шт.

17

G2102

BRACKET

- intermediate, rockershaft

2шт.

18

G11743

SHAFT

- front, rocker arm

1шт.

19

G2100

BRACKET

- front, rocker shaft

1шт.

20

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- bracket, 3/8" x 3-1/2" N.C. hex. hd

4шт.

21

G47129

PUSH ROD

8шт.

22

A49145

HEAD ASSY - stripped

1шт.

23

VT5058

PLUG - rear (1-1/8" O.D.)

1шт.

24

VT2021

X

PLUG - top (13/16" O.D.)

2шт.

25

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve stem (See ref. 49)

4шт.

26

NSS

NOT SOLD SEPARAT

GUIDE - intake valve stem (See ref. 52)

4шт.

27

VT4510

X

STUD - manifold

7шт.

28

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (See ref. 48)

4шт.

29

VT4503

X

STUD - head to block (1/2" x 2")

3шт.

30

VT4515

X

STUD - head to block (1/2" x 5-13/16")

14шт.

31

G49509

STUD

- head and cover

2шт.

32

VT3361

X

NUT - head stud

19шт.

33

G49404

WASHER

- head stud

19шт.

34

G49065

SEAT

- valve spring

8шт.

35

VT3372

SPRING

- intake valve

4шт.

36

NSS

NOT SOLD SEPARAT

RETAINER - intake valve spring (See ref. 53)

4шт.

37

G46851

SEAL

- rubber, intake valve spring

4шт.

38

NSS

NOT SOLD SEPARAT

LOCK - valve spring (See ref. 54)

16шт.

39

NSS

NOT SOLD SEPARAT

ROTO-CAP - exhaust valve (See ref. 50)

4шт.

40

G10004

SPRING

- exhaust valve

4шт.

41

VT2343

X

ADAPTER - heat gauge bulb

1шт.

42

A36299

GASKET

-, Serial Range: head-block

1шт.

43

NSS

NOT SOLD SEPARAT

VALVE - exhaust (See ref. 47)

4шт.

44

NSS

NOT SOLD SEPARAT

VALVE - intake (See ref. 51)

4шт.

45

VT3236

X

TAPPET - valve

8шт.

46

G2091

CAMSHAFT

- (See page 11)

1шт.

47

G11988

VALVE

S - exhaust, set of 4

1шт.

48

G11986

KIT

INSERTS - exhaust valve seat (Set of 4)

1шт.

49

G11861

GUIDE

S - exhaust valve stem, set of 4

1шт.

50

G11928

CAP

ROTO-CAPS - exhaust valve, set of 4

1шт.

51

G11987

VALVE

S - intake, set of 4

1шт.

52

G11946

GUIDE

S - intake valve stem, set of 4

1шт.

53

G11927

RETAINER

S - intake valve spring, set of 4

1шт.

54

G11929

LOCK

S - valve spring, set of 4

4шт.
