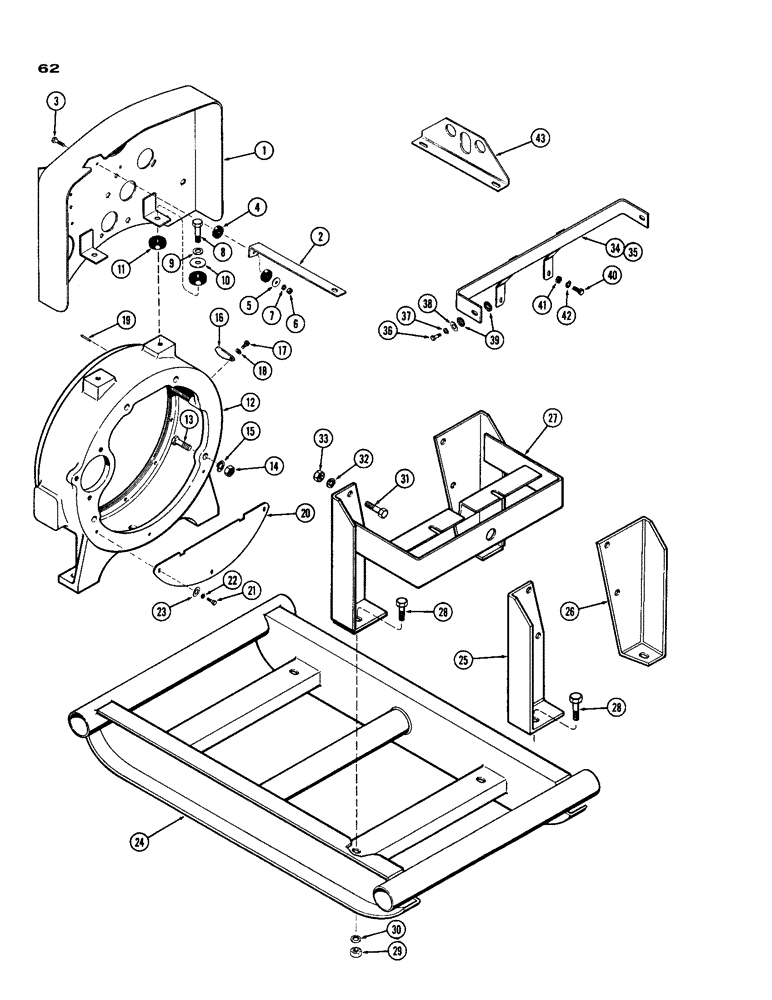

Запчасти Case IH 188 (62) - INSTRUMENT PANEL, SKID AND MOUNTING PARTS

1

A36544

PANEL - instrument mounting

1шт.

2

G15934

BRACE -, Serial Range: panel-engine

1шт.

3

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

4

V20350

NUT

WASHER - rubber, Serial Range: brace-panel

2шт.

5

V20201

DECAL

WASHER - plain

2шт.

6

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

8

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2" x 2-1/2" N.C. hex. hd.

2шт.

9

92-8

LOCK WASHER,1/2"

2шт.

10

95-10

WASHER,5/8"

- plain 5/8"

2шт.

11

VT3575

X

WASHER - rubber

4шт.

12

G2147

HOUSING - flywheel

1шт.

13

VT3503

X

BOLT -, Serial Range: housing-engine

2шт.

14

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex

2шт.

15

193-14

LOCK WASHER,Ext Tooth, 5/8"

LOCKWASHER - 5/8" I.T. Shakeproof

2шт.

16

VT2176

X

COVER - timing hole

1шт.

17

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

18

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

19

138-106

LOCK PIN,3/16" x 2 1/2", Slotted

PIN, , Timing pointer 3/16" x 2 1/2", Slotted

1шт.

20

G11716

COVER

- flywheel

1шт.

21

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

3шт.

22

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

23

95-4

WASHER,1/4"

- plain 1/4"

3шт.

24

G30581

SKID - engine

1шт.

25

G15924

LEG - R.H. engine support

1шт.

26

G15925

LEG - L.H., engine support

1шт.

27

G30580

SUPPORT - engine and radiator

1шт.

28

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

4шт.

29

25-1010

NUT,5/8"-11, G5

4шт.

30

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

31

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

4шт.

32

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

33

25-1010

NUT,5/8"-11, G5

4шт.

34

A36894

BRACE - radiator to engine (w/diesel)

1шт.

A19410

BUSHING

SPACER - brace (req. w/some diesel engines) (not illust.)

1шт.

35

A36547

BRACE - radiator to engine (w/gas)

1шт.

36

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

37

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

38

195-2020

WASHER,.344" x 1" x .065"

- plain ( replaced G49411 )

2шт.

39

V20350

NUT

WASHER - rubber

4шт.

40

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

41

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

42

92-6

LOCK WASHER,3/8"

2шт.

43

G11322

BRACKET - engine hanger

1шт.
