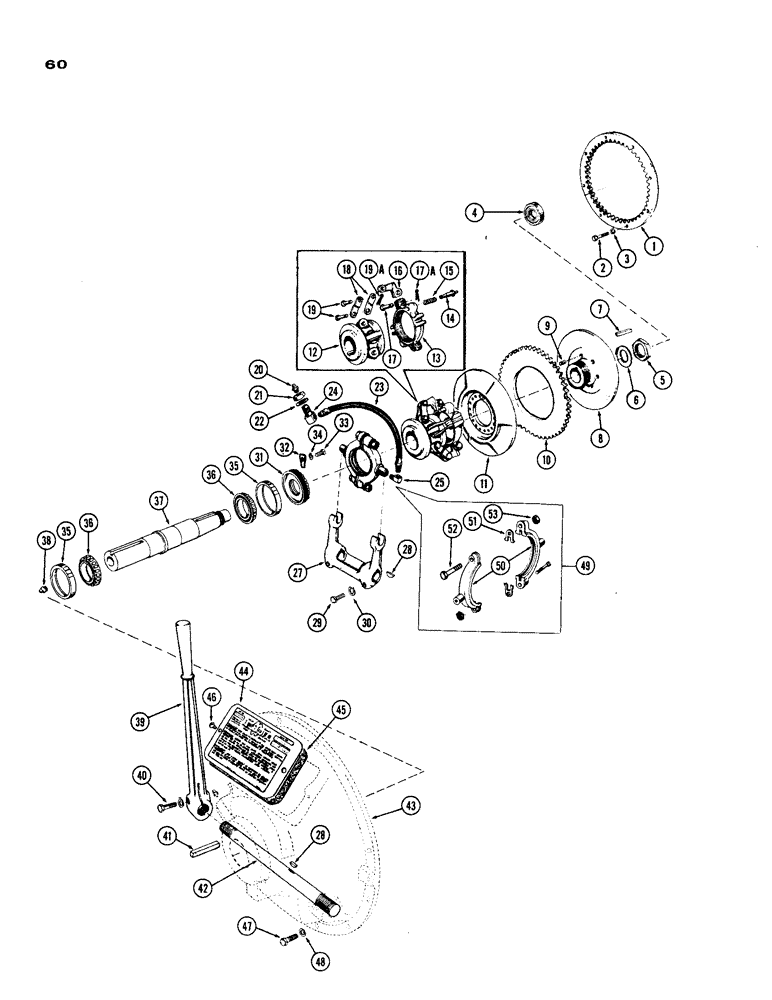

Запчасти Case IH 188 (60) - PTO CLUTCH

1

A40181

COUPLING

- drive

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

3

92-6

LOCK WASHER,3/8"

6шт.

4

A40180

BEARING - pilot, flywheel

1шт.

5

A40184

NUT

- clutch shaft

1шт.

6

A40185

X

LOCKWASHER - clutch to shaft nut

1шт.

7

LS1311S

KEY - clutch hub

1шт.

8

A40188

X

HUB - clutch

1шт.

9

O4304AB

SPRING - release

6шт.

10

A40193

PLATE ASSY.

PLATE - driving

1шт.

11

A40198

PLATE ASSY.

PLATE - floating

1шт.

12

A10445

SLEEVE - sliding

1шт.

13

O3796AB1

YOKE - clutch adjusting

1шт.

14

O4303AB

PIN - adjusting lock

1шт.

15

A40197

SPRING

- adjusting pin

1шт.

16

03797AB1

FINGER - adjusting yoke

4шт.

17

A40190

PIN

-, Serial Range: finger-yoke

4шт.

17a

A43383

SPLIT PIN

PIN - cotter, 5/32" x 9/16" ( replaced 132-66 )

4шт.

18

O3798AB1

X

LINK - lever, sliding sleeve

8шт.

19

A40192

AXLE PIN,8mm OD x 26.16mm L

PIN - lever link

8шт.

19a

A43382

PIN, SPLIT (COTTER)

PIN - cotter, 1/8" x 15/32" ( replaced 132-44 )

8шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" str.

1шт.

21

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - jam, 5/8" N.F. hex

1шт.

22

193-84

LOCK WASHER,5/8"

LOCKWASHER - IT Shakeproof 5/8"

1шт.

23

B50827

HOSE ASSY - lube (includes fittings)

1шт.

24

A40195

FITTING

ELBOW - outer, lube hose

1шт.

25

A40196

X

ELBOW - inner, lube hoses

1шт.

27

B50820

FORK

YOKE - throwout

1шт.

28

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

Yoke to shaft #15, 1/4" x 1", HT

2шт.

29

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" X 1-1/2" N.C. hex. hd.

2шт.

30

193-78

LOCK WASHER,3/8"

LOCKWASHER - Shakeproof 3/8"

2шт.

31

A40186

RETAINER - bearing

1шт.

32

A40187

LOCK - bearing retainer

1шт.

33

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

34

193-83

LOCK WASHER,Int Tooth, 5/16"

LOCKWASHER - 5/16" IT Shakeproof

1шт.

35

40391

BEARING

CUP - bearing (Timken #25521)

2шт.

36

V15002

X

CONE - bearing (Timken #25584)

2шт.

37

A40177

SHAFT - drive

1шт.

38

219-23

LUBE NIPPLE,1/4" - 18 NPTF

FITTING - 1/4" str.

1шт.

39

B50856

LEVER - hand, clutch operating

1шт.

40

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2" x 1-3/4" N.C. hex. hd.

1шт.

41

A40178

KEY - PTO shaft

1шт.

42

A40179

SHAFT - clutch, operating

1шт.

43

A40176

HOUSING - clutch

1шт.

44

A40182

PLATE - instruction

1шт.

45

A40183

GASKET - plate

1шт.

46

193-515

SCREW,SEMS, But Hd, 1/4"-20 x 1/2"

- plate, 1/4" x 1/2" rd. hd. lock

2шт.

47

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

12шт.

48

92-6

LOCK WASHER,3/8"

12шт.

49

O10833A

X

COLLAR ASSY - clutch

1шт.

50

NS

NOT SERVICED

COLLAR HALF (Order O 10833A)

2шт.

51

O7130A

SHIM

2шт.

52

O7129A

BOLT

2шт.

53

230-4616

LOCK NUT,3/8"-24, GA

NUT - 3/8" N.F. self-locking

2шт.
