Запчасти Case IH 188 (58) - A36563 GENERATOR, DIESEL ENGINE

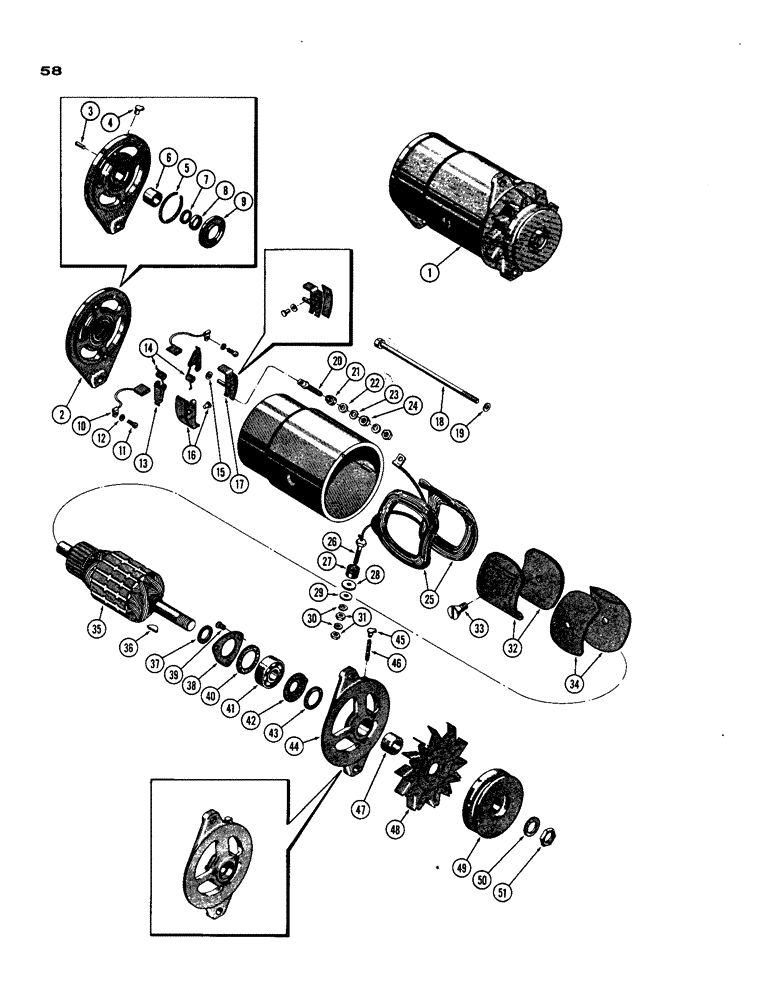

Схема запчастей Case IH 188 - (58) - A36563 GENERATOR, DIESEL ENGINE
36
9
31
51
40
47
43
5
46
25
45
8
2
24
12
18
39
13
4
28
16
15
44
32
34
1
19
27
14
7
10
42
48
29
6
17
20
37
21
22
30
38
35
49
50
11
3
41
33
26
23

Артикул

Название

Примечание

Количество

1

A36563

GENERATOR

GENERATOR ASSY - (Delco #1100443)

1шт.

1

87297244

REMAN-ALTERNATOR

Remanufactured Alternator 12 volt 61 ampere

1шт.

1

87297245

CORE-ALTERNATOR

Return Number

1шт.

1

103804A1GV

ALTERNATOR

Value

1шт.

1

103804A1R

REMAN-ALTERNATOR

Reman For New PN A36563

1шт.

1

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

2

A25411

HOUSING

HOUSING ASSY - commutator end

1шт.

3

NSS

NOT SOLD SEPARAT

PIN - head locating

1шт.

4

NSS

NOT SOLD SEPARAT

OILER

1шт.

5

NSS

NOT SOLD SEPARAT

WICK - oiler

1шт.

6

A25459

BUSHING

BUSHING - commutator end

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER - felt, commutator end

1шт.

8

NSS

NOT SOLD SEPARAT

CUP - felt retainer

1шт.

9

NSS

NOT SOLD SEPARAT

RETAINER - wick

1шт.

10

R4286

BRUSH, COMMUTATOR

BRUSH BRUSH

2шт.

11

NSS

NOT SOLD SEPARAT

SCREW - brush lead

2шт.

12

NSS

NOT SOLD SEPARAT

WASHER - lock, brush lead screw

2шт.

13

R15090

ARM

ARM - brush

2шт.

14

R16161

VALVE SPRING

SPRING - brush

2шт.

15

NSS

NOT SOLD SEPARAT

WASHER - spacer, brush arm

2шт.

16

R16159

X

HOLDER PACKAGE - ground brush

1шт.

17

R16160

X

HOLDER PACKAGE - insulated brush

1шт.

18

A40129

BOLT

BOLT - thru

2шт.

19

NSS

NOT SOLD SEPARAT

LOCKWASHER - thru bolt

2шт.

20

R16146

X

STUD - armature terminal

1шт.

21

R16147

BUSHING

BUSHING - insulating, term. stud

1шт.

22

NSS

NOT SOLD SEPARAT

WASHER - plain

1шт.

23

NSS

NOT SOLD SEPARAT

LOCKWASHER - stud

2шт.

24

NSS

NOT SOLD SEPARAT

NUT - stud

2шт.

25

A25437

COIL

FIELD COIL ASSY

1шт.

26

R16150

X

STUD - field terminal

1шт.

27

R15077

X

BUSHING - field terminal stud

1шт.

28

NSS

NOT SOLD SEPARAT

WASHER - insulation, term. stud

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER - plain, term. stud

1шт.

30

NSS

NOT SOLD SEPARAT

LOCKWASHER - term. stud

2шт.

31

NSS

NOT SOLD SEPARAT

NUT - term. stud

2шт.

32

R16145

SPARE PART SHOE - pole

2шт.

33

NSS

NOT SOLD SEPARAT

SCREW - pole shoe

2шт.

34

R16152

INSULATOR

INSULATOR - field coil

2шт.

35

A40130

ARMATURE

ARMATURE

1шт.

36

R15047

X

KEY - armature shaft

1шт.

37

NSS

NOT SOLD SEPARAT

WASHER - inner spacer

1шт.

38

R15101

PLATE

PLATE - bearing retainer

1шт.

39

NSS

NOT SOLD SEPARAT

SCREW - retainer

3шт.

40

R16170

GASKET

GASKET - retainer

1шт.

41

G10623

BALL BEARING

BEARING (N.D.#7503)

1шт.

42

NSS

NOT SOLD SEPARAT

RETAINER - felt washer

1шт.

43

NSS

NOT SOLD SEPARAT

WASHER - felt

1шт.

44

R16163

X

FRAME - drive end

1шт.

45

NSS

NOT SOLD SEPARAT

OILER

1шт.

46

NSS

NOT SOLD SEPARAT

WICK - oiler

1шт.

47

R16166

BUSHING

COLLAR - spacer

1шт.

48

A25449

FAN

FAN

1шт.

49

A25454

PULLEY

PULLEY - drive

1шт.

50

R16171

SPRING WASHER

WASHER - lock, pulley nut

1шт.

51

A25546

NUT

NUT -, Serial Range: pulley-shaft

1шт.

Выбрано товаров: 56
