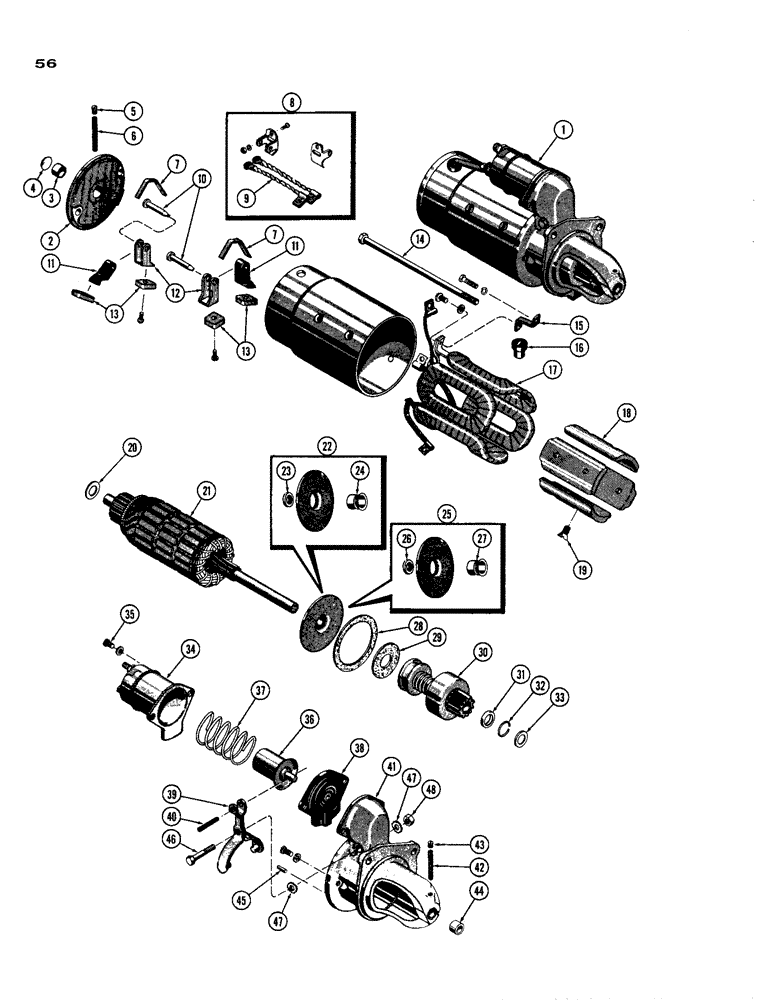

Запчасти Case IH 188 (56) - A36582 AND A36583 STARTERS, DIESEL ENGINE

1

A36583

STARTER MOTOR

STARTER ASSY - (Delco-Remy #1107583)

1шт.

1

A36582

SPARE PART STARTER ASSY - (Delco #1107584) (Order A36583)

1шт.

1

87297324

REMAN-STARTER

Remanufactured STARTER 12V 20MT

1шт.

1

87297325

CORE-STARTER

Return Part Number

1шт.

1

104198A2R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104198A1C

CORE-STARTER

Return Part Number

1шт.

1

104202A2R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104202A1C

CORE-STARTER

Return Part Number

1шт.

2

A25304

FRAME

HEAD ASSY - commutator end

1шт.

3

R15020

BUSHING

BUSHING - armature shaft

1шт.

4

NSS

NOT SOLD SEPARAT

PLUG - expansion

1шт.

5

NSS

NOT SOLD SEPARAT

PLUG - oil wick hole

1шт.

6

NSS

NOT SOLD SEPARAT

WICK - oil

1шт.

7

A25359

SPRING

SPRING - brush pressure

2шт.

8

A25379

KIT

SUPPORT KIT - brush holder

1шт.

9

A25363

ELECTRICAL WIRE

WIRE LEAD - brush ground

2шт.

10

NSS

NOT SOLD SEPARAT

PIN - brush holder

2шт.

11

A40521

HOLDER

HOLDER - brush, insulating

2шт.

12

A40217

HOLDER

HOLDER - brush, ground

2шт.

13

A25356

BRUSH, COMMUTATOR

BRUSH BRUSH

4шт.

14

A25552

BOLT

BOLT - thru

2шт.

15

A40225

CONNECTOR, ELEC

CONNECTOR CONNECTOR - solenoid

1шт.

16

NSS

NOT SOLD SEPARAT

GROMMET - connector

1шт.

17

A25319

COIL

COIL - field

1шт.

18

A25391

SHOE

SHOE - pole

4шт.

19

NSS

NOT SOLD SEPARAT

SCREW - pole shoes

8шт.

20

NSS

NOT SOLD SEPARAT

WASHER - brake, comm. end

1шт.

21

A40219

ARMATURE

ARMATURE

1шт.

22

A40223

PLATE

PLATE ASSY - ctr. brg. (used w/A36583 starter)

1шт.

23

A40228

OIL SEAL

SEAL - oil (3/4" x 1-1/4" x 1/4")

1шт.

24

NSS

NOT SOLD SEPARAT

BEARING - center plate

1шт.

25

A40215

PLATE ASSY.

PLATE ASSY - ctr. brg. (used w/A36582 starter)

1шт.

26

A25409

SEAL

SEAL - oil (3/4" x 1" x 1/8")

1шт.

27

NSS

NOT SOLD SEPARAT

BEARING - center plate

1шт.

28

NSS

NOT SOLD SEPARAT

GASKET - center bearing

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER - thrust, ctr. brg.

1шт.

30

A25337

X

DRIVE - starter (used w/A36583 starter)

1шт.

30

A41871

DRIVE

DRIVE - starter (used w/A36582 starter) ( replaced B53941 )

1шт.

31

R15049

COLLAR

COLLAR - stop, starter drive

1шт.

32

R15048

RING

RING - snap, collar retaining

1шт.

33

A40216

WASHER

WASHER - thrust, starter drive

1шт.

34

G44891

SOLENOID

SOLENOID ASSY

1шт.

35

NSS

NOT SOLD SEPARAT

SCREW - solenoid to drive housing

2шт.

36

A40218

PLUNGER

PLUNGER - solenoid

1шт.

37

A40221

SPRING

SPRING - plunger return

1шт.

38

A40222

BOOT

COVER - solenoid and drive housing

1шт.

39

A40220

LEVER

LEVER - shift (used w/A36583 starter)

1шт.

39

A25297

SPARE PART LEVER - shift (used w/A36582 starter)

1шт.

40

A25399

X

PIN - shift, Serial Range: lever-plunger

1шт.

41

A40224

FRAME

HOUSING ASSY - drive end (used w/A36583 starter)

1шт.

42

NSS

NOT SOLD SEPARAT

WICK - oil

1шт.

43

NSS

NOT SOLD SEPARAT

PLUG - oil wick hole

1шт.

44

A40227

BUSHING

BUSHING - housing

1шт.

41

A40226

FRAME

HOUSING ASSY - drive end (used w/A36582 starter)

1шт.

42

NSS

NOT SOLD SEPARAT

WICK - oil

1шт.

43

NSS

NOT SOLD SEPARAT

PLUG - oil wick hole

1шт.

44

A25387

BEARING

BUSHING - housing

1шт.

45

NSS

NOT SOLD SEPARAT

PIN - drive end locating

1шт.

46

A25401

SPARE PART STUD - pivot, shift lever

1шт.

47

NSS

NOT SOLD SEPARAT

WASHER - pivot stud (ext. skpf.)

2шт.

48

NSS

NOT SOLD SEPARAT

NUT - pivot stud

1шт.
