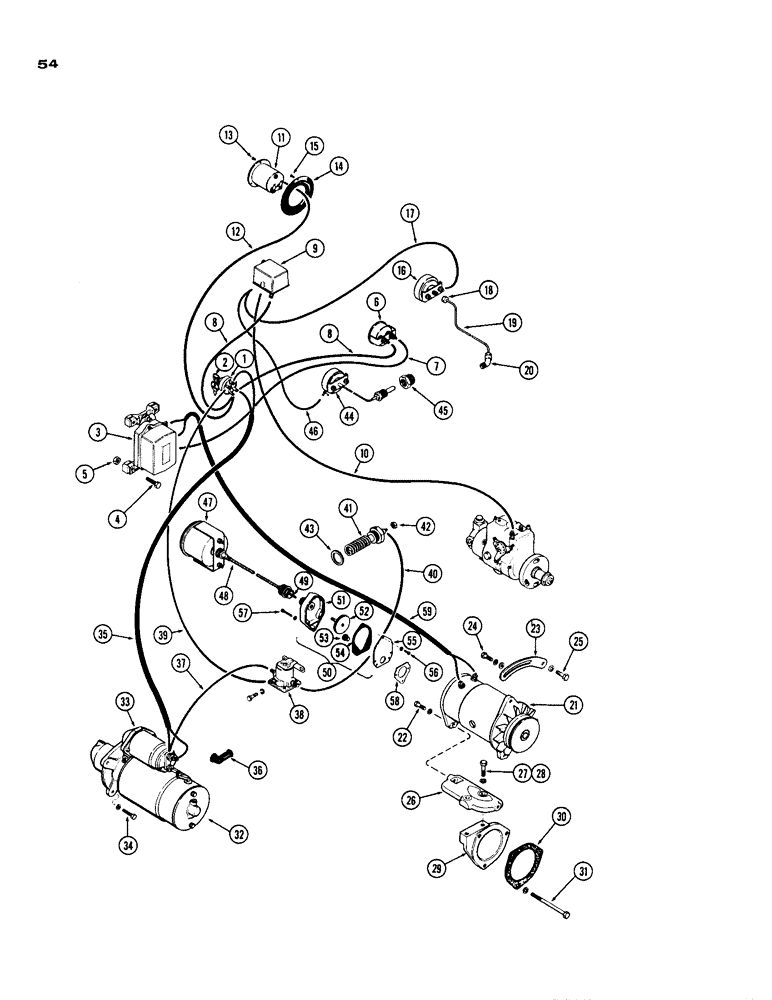

Запчасти Case IH 188 (54) - ELECTRICAL SYSTEM, DIESEL ENGINE

1

A24510

SWITCH

- starting (Diesel) includes keys

1шт.

2

A24509

KEY

- ignition start, Set of 2

2шт.

3

A35233

REGULATOR

- voltage (Delco #1119241)

1шт.

4

114-4

BOLT,Hex, 1/4" - 28 x 1-1/2", Gr 5

- 1/4" x 1-1/4" N.F. hex. hd. (plated)

4шт.

5

193-1001

NUT,Keps, w/LW, 1/4"-28

- 1/4" N.F. hex. (includes lockwasher)

4шт.

6

O3601AB1

X

AMMETER

1шт.

7

G44031

CABLE -, Serial Range: ammeter-regulator

1шт.

8

G44030

CABLE - starter & safety, Serial Range: switch-ammeter

1шт.

9

A23261

SWITCH

- safety

1шт.

10

G44091

CABLE - safety switch to fuel pump

1шт.

11

33481

X

HOURMETER ASSY

1шт.

12

G44076

CABLE (10" long)

2шт.

13

173-223

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

- #6-32 x 1/4" rd. hd.

3шт.

14

O9579AB

X

FLANGE - rubber, hourmeter mounting

1шт.

15

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- #6-32 x 1/2" rd. hd.

3шт.

16

A10475

GAUGE - engine oil pressure

1шт.

17

A11193

CABLE - pressure gauge to safety switch

1шт.

18

222-520

ELBOW,90 Degree x 1/8" NPT x 5/16"-20, Fem

- 1/8" x 1/8" P.T., tube to gauge

1шт.

19

G46385

TUBE - oil pressure

1шт.

20

222-430

ELBOW,90 Degree x 1/8" NPT x 5/16"-24

- 1/8" x 1/8" P.T., tube to engine

1шт.

21

A36563

GENERATOR

(Delco-Remy #1100443)

1шт.

22

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

23

A37017

STRAP

- adjusting, generator

1шт.

24

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

25

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

26

G2131

X

BRACKET - generator

1шт.

27

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

28

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

29

G2098

SUPPORT - generator bracket

1шт.

30

VT3691

X

GASKET -, Serial Range: support-block

1шт.

31

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

3шт.

32

A36582

STARTER ASSY. (Order A36583) (see page 57)

1шт.

33

G44891

SOLENOID

(Delco #1114356)

1шт.

34

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

35

G44015

CABLE - starting, Serial Range: switch-solenoid

1шт.

36

A21753

CAP

NIPPLE - terminal

1шт.

37

G44053

X

CABLE - st. solenoid to heater solenoid

1шт.

38

A21481

SOLENOID

- heater switch

1шт.

39

G44031

CABLE - st. switch to heater solenoid

1шт.

40

A21483

CABLE

-, Serial Range: solenoid-heater

1шт.

41

A24396

X

HEATER - manifold

1шт.

42

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

43

A20916

MANIFOLD GASKET

GASKET -, Serial Range: heater-manifold

1шт.

44

G45471

GAUGE

- temperature

1шт.

45

VT2343

X

ADAPTER - heat bulb to cyl. head

1шт.

46

A11193

CABLE - safety switch to temperature gauge

1шт.

47

A32143

X

TACHOMETER

1шт.

48

G45470

CABLE ASSY - tachometer drive

1шт.

49

A24523

KIT

CABLE KIT - replacement

1шт.

50

A36818

DRIVE

TACHOMETER DRIVE ASSY

1шт.

51

NSS

NOT SOLD SEPARAT

HOUSING - (Order A36818)

1шт.

52

A36522

GEAR WHEEL

GEAR - drive

1шт.

53

G46306

GEAR WHEEL

GEAR - drive

1шт.

54

G46882

GASKET

- cover

1шт.

55

G46307

COVER

1шт.

56

182-83

SCREW

- #8-32 x 5/16" pan hd.

3шт.

57

193-518

SCREW,SEMS, Pan Hd, #8-32 x 1"

- #8-32 x 1" pan hd.

3шт.

58

G46878

GASKET

- drive, Serial Range: assy-generator

1шт.

59

G44021

CABLE - generator to voltage regulator

1шт.
