Запчасти Case IH 188 (02) - ENGINE COOLING SYSTEM, SPARK IGNITION ENGINE

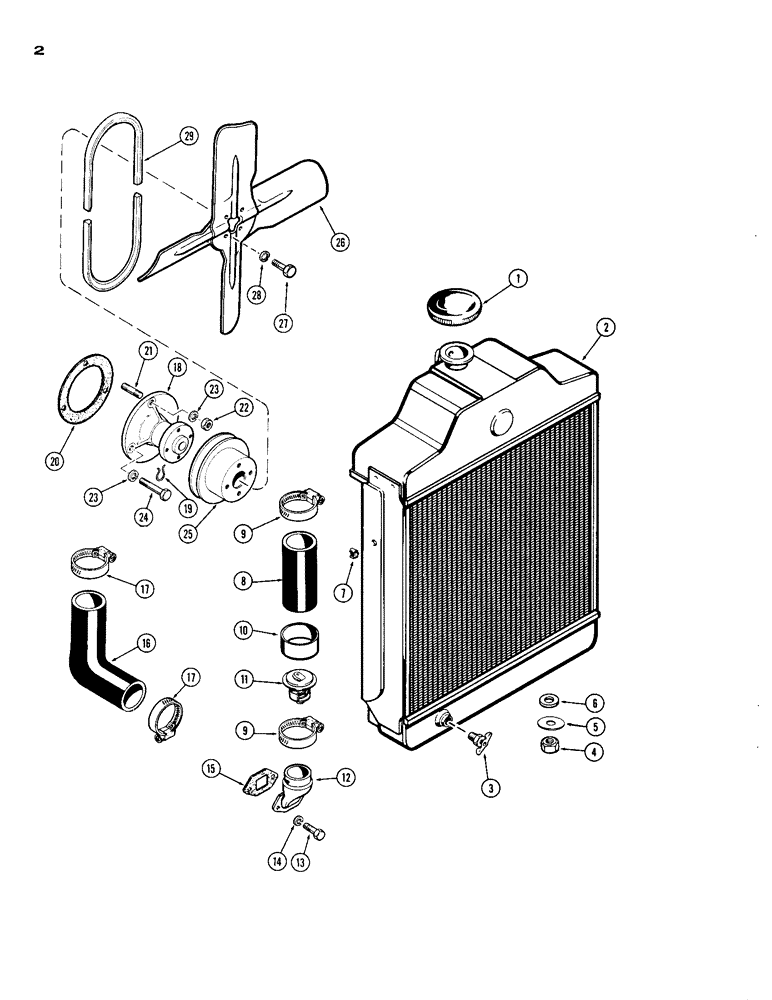

Схема запчастей Case IH 188 - (02) - ENGINE COOLING SYSTEM, SPARK IGNITION ENGINE
28
9
23
23
21
7
12
4
1
3
25
18
2
29
16
9
10
6
22
20
27
17
8
24
11
17
19
13
26
14
15
5

Артикул

Название

Примечание

Количество

1

G45176

CAP

- radiator

1шт.

2

G45266

RADIATOR

1шт.

3

217-103

COCK, DRAIN

DRAIN COCK - radiator

1шт.

4

V14103

SUPPORT

NUT - mounting stud, radiator

2шт.

5

95-10

WASHER,5/8"

- plain 5/8"

2шт.

6

VT3575

X

WASHER - rubber, radiator mounting

2шт.

7

131-126

NUT - cage, 5/16" N.C., rad. brace

2шт.

8

G46239

RADIATOR HOSE,2.00" ID x 4.88", SAE 20R2

Upper 2.00" ID x 4.88", SAE 20R2

1шт.

9

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

3шт.

10

G49625

SUPPORT

SPACER - thermostat

1шт.

11

A57641

THERMOSTAT

(replaced G45788)

1шт.

12

G11965

ELBOW

- water outlet

1шт.

13

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

VT3228

X

GASKET -, Serial Range: elbow-head

1шт.

16

G46361

RADIATOR HOSE,1.75" ID x 5.13", SAE 20R4

Lower 1.75" ID x 5.13", SAE 20R4

1шт.

17

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

18

G11969

X

WATER PUMP - complete

1шт.

19

VT4594

X

RING - retainer

1шт.

20

A38083

GASKET

- pump to engine (replaced G46875)

1шт.

21

VT4512

X

STUD -, Serial Range: pump-engine

1шт.

22

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

1шт.

23

92-6

LOCK WASHER,3/8"

3шт.

24

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

24

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8" x 2-3/4" N.C. hex. hd.

1шт.

25

G11339

PULLEY

- drive belt

1шт.

26

G45243

FAN

1шт.

27

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

28

92-5

LOCK WASHER,5/16"

4шт.

29

G46238

BELT,0.55" W x 17.78" L

Fan Drive 0.55" W x 17.78" L

1шт.

Выбрано товаров: 30
