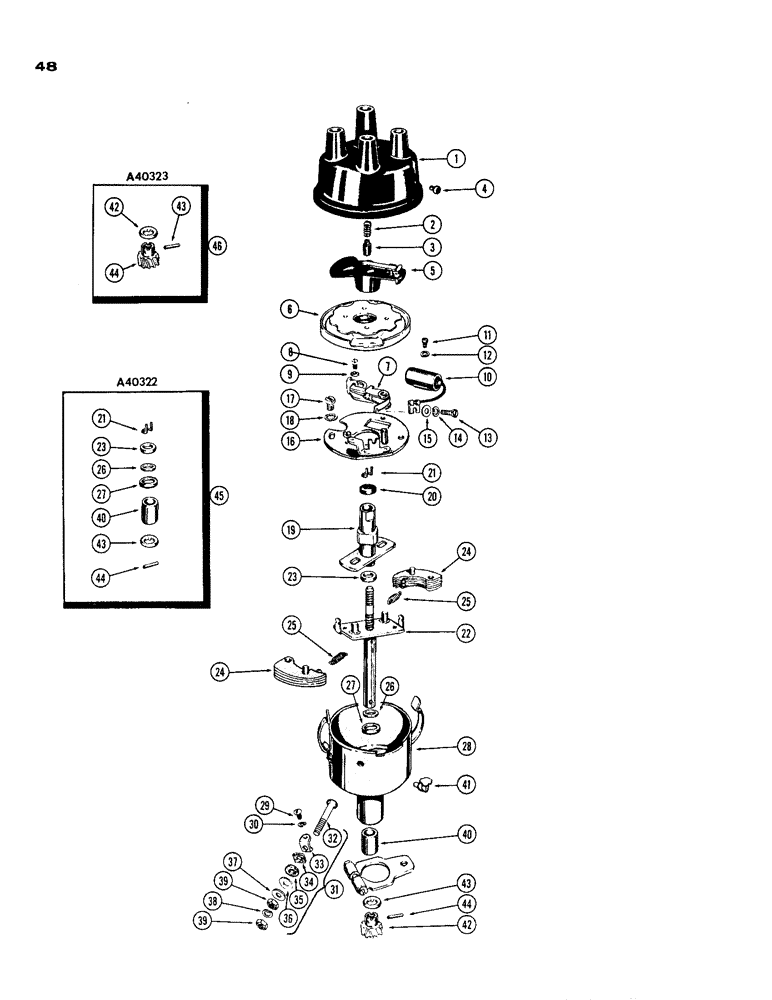

Запчасти Case IH 188 (48) - VTA 2758 DISTRIBUTOR

VTA2758

X

DISTRIBUTOR ASSY. - (Auto-Lite #IAD 6003-2F)

1шт.

1

A8368

CAP

ASSY

1шт.

2

NSS

NOT SOLD SEPARAT

SPRING - contact

1шт.

3

NSS

NOT SOLD SEPARAT

CONTACT - Hi-Tension (carbon)

1шт.

4

NSS

NOT SOLD SEPARAT

PLUG - vent hole (rubber)

1шт.

5

A8369

ROTOR

1шт.

6

A25194

PLATE

COVER - breaker plate, w/dust seal

1шт.

7

A25936

CONTACT ASSY. - (point set)

1шт.

8

177-72

SCREW - contact (#8-32 x 3/16" fill. hd.)

1шт.

9

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

10

A8370

PACKAGE

CONDENSOR

1шт.

11

177-56

SCREW - condenser (#6-32 x 3/16" fill. hd.)

1шт.

12

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

1шт.

13

171-216

SCREW,Sl Flat Hd, #6 - 32 x 5/16"

- condenser lead (#6-32 x 5/16" spec. hd.)

1шт.

14

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

1шт.

15

195-6

WASHER,#6

- ( small flat) #6

1шт.

16

A25196

PLATE

- breaker

1шт.

17

177-94

SCREW,Sl Fil Hd, #10 - 32 x 5/16"

- breaker plate (#10-32 x 5/16" full. hd.)

2шт.

18

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

2шт.

19

A25193

CAM

& STOP PLATE

1шт.

20

NSS

NOT SOLD SEPARAT

FELT - cam sleeve oil wick

1шт.

21

A25180

RING, SNAP

RING - oil felt retaining (see A40322)

1шт.

22

A25177

SHAFT

- drive

1шт.

23

A25197

SPACER

- cam & stop plate (See A40322)

1шт.

24

A25198

WEIGHT

- governor

2шт.

25

A25199

SPRING KIT

SPRING SET - gov. weight (set of 2)

1шт.

26

A24752

WASHER

- thrust, drive shaft, upper (see A40322)

1шт.

27

A24753

WASHER

- thrust, drive shaft, lower (see A40322)

1шт.

28

NSS

NOT SOLD SEPARAT

BASE ASSY. - w/clamps (order VTA 2758)

1шт.

29

174-56

SCREW - connector (#6-32 x 3/16" rd. hd.)

1шт.

30

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

1шт.

31

A40321

KIT

STUD KIT

1шт.

32

NSS

NOT SOLD SEPARAT

STUD - primary terminal (order A40321)

1шт.

33

NSS

NOT SOLD SEPARAT

CONNECTOR - terminal stud (order A40321)

1шт.

34

NSS

NOT SOLD SEPARAT

INSULATION - terminal stud (order A40321)

1шт.

35

NSS

NOT SOLD SEPARAT

BUSHING - insulation, term. stud (order A40321)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - insulation, term. stud (order A40321)

1шт.

37

195-9

WASHER - (#10) small flat

1шт.

38

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

39

129-27

NUT,Hex, #10 - 32

- ( hex.) #10-32

2шт.

40

A24766

BUSHING

BEARING - drive shaft (bronze) (see A40322)

2шт.

41

A24887

OILER - drive shaft

1шт.

42

G11714

GEAR

- distributor drive (see A40323)

1шт.

43

A25200

WASHER

- thrust, drive gear (see A40322 and A40323)

1шт.

44

A25201

PIN

- drive gear retaining (see A40322 and A40323)

1шт.

45

A40322

KIT

BEARING KIT

1шт.

46

A40323

GEAR

KIT

1шт.
