Запчасти Case IH 188 (46) - ELECTRICAL SYSTEM, SPARK IGNITION ENGINE, CONTINUED

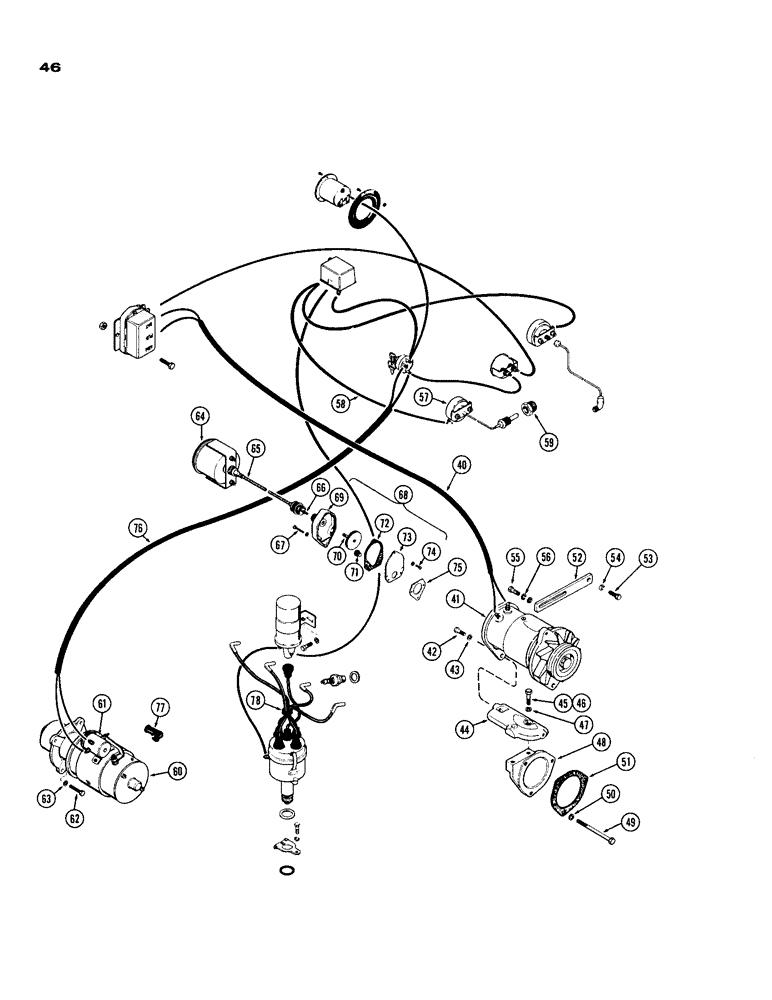

Схема запчастей Case IH 188 - (46) - ELECTRICAL SYSTEM, SPARK IGNITION ENGINE, CONTINUED
54
58
73
76
51
60
47
66
71
50
67
74
77
78
69
75
44
57
46
55
63
65
49
61
70
41
45
40
62
42
72
52
43
56
64
68
59
48
53

Артикул

Название

Примечание

Количество

40

G44021

CABLE -, Serial Range: generator-regulator

1шт.

41

A36195

SPARE PART GENERATOR - (Auto-Lite #GJT-7403A) (see page 53)

1шт.

42

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

43

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

44

G2131

X

BRACKET - generator

1шт.

45

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

46

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/2", G5

1шт.

47

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

2шт.

48

G2098

SPARE PART SUPPORT - generator bracket

1шт.

49

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

BOLT, Hex, 3/8"-16 x 3 1/4", G5

3шт.

50

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

3шт.

51

VT3691

X

GASKET -, Serial Range: support-block

1шт.

52

G11344

SPARE PART STRAP - adjusting, generator

1шт.

53

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

54

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

55

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

56

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

57

G45471

GAUGE

GAUGE - temperature

1шт.

58

A11193

CABLE - temp. gauge to safety switch

1шт.

59

VT2343

X

ADAPTER - heat bulb to cyl. head

1шт.

60

A36584

STARTING MOTOR

STARTING MOTOR (Prestalite #MDU-7104A) (see page 57)

1шт.

60

104223A1R

REMAN-STARTER

Remanufactured STARTER 12 volt Presto Inertia

1шт.

60

104223A1C

CORE-STARTER

Return Part Number, STARTER 12 volt Presto Inertia

1шт.

61

A20145

X

SOLENOID - starting motor

1шт.

62

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, Hex, 3/8"-16 x 2", G5

3шт.

63

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

64

A32143

X

TACHOMETER ASSY - (includes hourmeter)

1шт.

65

G45470

SPARE PART CABLE ASSY - tachometer drive

1шт.

66

A24523

KIT

CABLE KIT - replacement

1шт.

67

193-518

SCREW,SEMS, Pan Hd, #8-32 x 1"

SCREW - #8-32 x 1" pan. hd.

3шт.

68

A36818

DRIVE

TACHOMETER DRIVE ASSY

1шт.

69

NSS

NOT SOLD SEPARAT

HOUSING (Order A36818)

1шт.

70

A36522

GEAR WHEEL

GEAR - driven

1шт.

71

G46306

GEAR WHEEL

GEAR - drive

1шт.

72

G46882

GASKET

GASKET - cover

1шт.

73

G46307

SPARE PART COVER

1шт.

74

182-83

SCREW

SCREW - #8-32 x 5/16" pan. hd.

3шт.

75

G46878

GASKET

GASKET - tach., Serial Range: drive-generator

1шт.

76

G44015

CABLE - starting, Serial Range: switch-solenoid

1шт.

77

A21753

CAP

NIPPLE - starting motor terminal

1шт.

78

V20356

NUT

"O" RING - spark plug wire harness

1шт.

Выбрано товаров: 41
