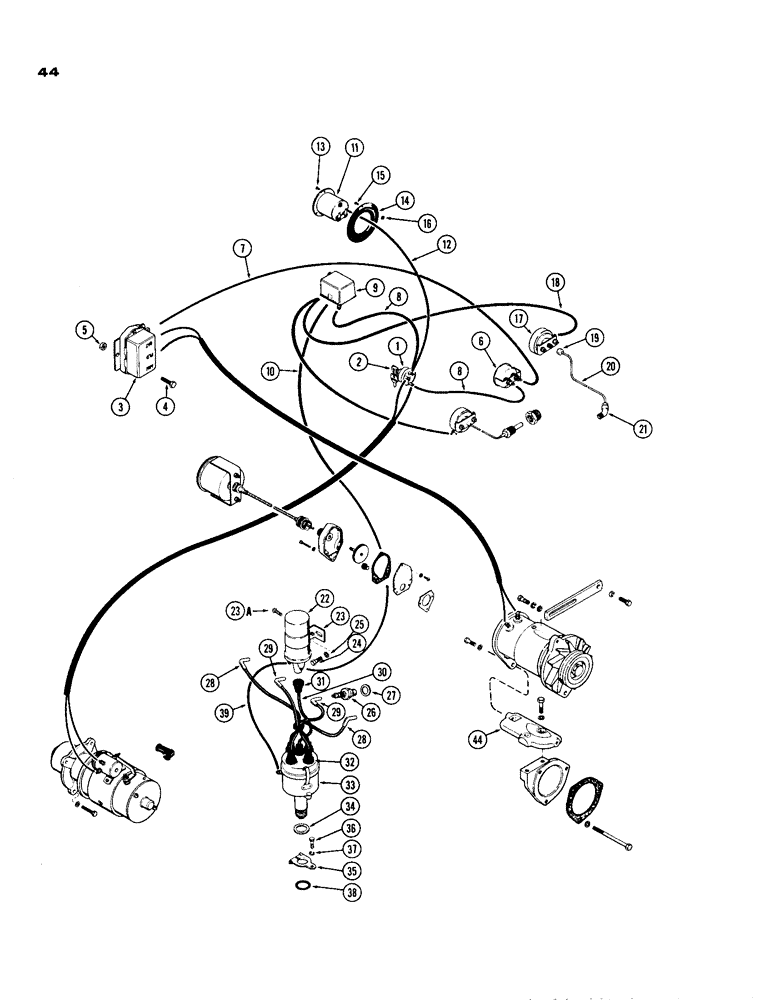

Запчасти Case IH 188 (44) - ELECTRICAL SYSTEM, SPARK IGNITION SYSTEM

1

A24511

SWITCH

SWITCH - ignition, w/key (Gas)

1шт.

2

A24509

KEY

KEY - ignition start, Set of 2

2шт.

3

A36194

REGULATOR

REGULATOR - voltage

1шт.

4

114-5

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

BOLT - 1/4" x 3/4" N.F. hex. hd. (plated)

3шт.

5

193-1001

NUT,Keps, w/LW, 1/4"-28

NUT - 1/4" N.F. hex (includes lockwasher)

3шт.

6

O3601AB1

X

AMMETER

1шт.

7

G44031

CABLE -, Serial Range: ammeter-regulator

1шт.

8

G44030

CABLE - starting switch to ammeter and safety switch

2шт.

9

A23261

SWITCH

SWITCH - safety

1шт.

10

G44091

CABLE - safety, Serial Range: switch-coil

1шт.

11

33481

X

HOURMETER ASSY

1шт.

12

G44076

CABLE (10" long)

2шт.

13

173-223

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

SCREW - #6-32 x 1/4" rd. hd.

3шт.

14

O9579AB

X

FLANGE - rubber, hourmeter mounting

1шт.

15

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

SCREW - #6-32 x 1/2" rd. hd.

3шт.

16

129-15

NUT,#6-32

NUT, #6-32

3шт.

17

A10475

SPARE PART GAUGE - engine oil pressure

1шт.

18

A11193

CABLE - pressure gauge to safety switch

1шт.

19

222-520

ELBOW,90 Degree x 1/8" NPT x 5/16"-20, Fem

ELBOW - 1/8" x 1/8" P.T. tube to gauge

1шт.

20

G46385

TUBE - oil pressure

1шт.

21

222-430

ELBOW,90 Degree x 1/8" NPT x 5/16"-24

ELBOW - 1/8" x 1/8" P.T., tube to engine

1шт.

22

A33438

COIL

COIL - ignition

1шт.

23

G46106

BRACKET

CLAMP -, Serial Range: coil-engine

1шт.

23a

177-105

SCREW - #10-32 x 1-1/2" rd. hd. N.F.

1шт.

24

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

25

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

2шт.

26

G44840

SPARK PLUG

SPARK PLUG

4шт.

27

G46839

GASKET

GASKET

1шт.

28

G44044

ELECTRICAL WIRE

WIRE WIRE - #1 and #4 spark plug (11-1/2")

2шт.

29

VT2879

X

WIRE #2 and #3 spark plug (10-1/2")

2шт.

30

G44045

SPARE PART WIRE - coil to distributor (6")

1шт.

31

G46803

BOOT

NIPPLE -, Serial Range: wire-coil

1шт.

32

VT3561

X

NIPPLE -, Serial Range: wire-distributor

5шт.

33

VTA2758

X

DISTRIBUTOR ASSY. - (see page 49)

1шт.

34

VT5060

X

WASHER - thrust

1шт.

35

VTA2775

X

ADVANCE ARM

1шт.

36

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

37

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

38

VT4593

X

"O-RING" -, Serial Range: distributor-block

1шт.

39

G13085

ELECTRICAL WIRE

WIRE WIRE -, Serial Range: distributor-coil

1шт.

40

G44021

CABLE -, Serial Range: generator-regulator

1шт.

41

A36195

SPARE PART GENERATOR - (Auto-Lite #GJT-7403A) (see page 53)

1шт.

42

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

43

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

44

G2131

X

BRACKET - generator

1шт.

45

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

46

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/2", G5

1шт.

47

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

2шт.

48

G2098

SPARE PART SUPPORT - generator bracket

1шт.

49

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

BOLT, Hex, 3/8"-16 x 3 1/4", G5

3шт.

50

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

3шт.

51

VT3691

X

GASKET -, Serial Range: support-block

1шт.

52

G11344

SPARE PART STRAP - adjusting, generator

1шт.

53

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

54

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

55

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

56

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

57

G45471

GAUGE

GAUGE - temperature

1шт.

58

A11193

CABLE - temp. gauge to safety switch

1шт.

59

VT2343

X

ADAPTER - heat bulb to cyl. head

1шт.

60

A36584

STARTING MOTOR

STARTING MOTOR (Prestalite #MDU-7104A) (see page 57)

1шт.

60

104223A1R

REMAN-STARTER

Remanufactured STARTER 12 volt Presto Inertia

1шт.

60

104223A1C

CORE-STARTER

Return Part Number, STARTER 12 volt Presto Inertia

1шт.

61

A20145

X

SOLENOID - starting motor

1шт.

62

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, Hex, 3/8"-16 x 2", G5

3шт.

63

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

64

A32143

X

TACHOMETER ASSY - (includes hourmeter)

1шт.

65

G45470

SPARE PART CABLE ASSY - tachometer drive

1шт.

66

A24523

KIT

CABLE KIT - replacement

1шт.

67

193-518

SCREW,SEMS, Pan Hd, #8-32 x 1"

SCREW - #8-32 x 1" pan. hd.

3шт.

68

A36818

DRIVE

TACHOMETER DRIVE ASSY

1шт.

69

NSS

NOT SOLD SEPARAT

HOUSING (Order A36818)

1шт.

70

A36522

GEAR WHEEL

GEAR - driven

1шт.

71

G46306

GEAR WHEEL

GEAR - drive

1шт.

72

G46882

GASKET

GASKET - cover

1шт.

73

G46307

SPARE PART COVER

1шт.

74

182-83

SCREW

SCREW - #8-32 x 5/16" pan. hd.

3шт.

75

G46878

GASKET

GASKET - tach., Serial Range: drive-generator

1шт.

76

G44015

CABLE - starting, Serial Range: switch-solenoid

1шт.

77

A21753

CAP

NIPPLE - starting motor terminal

1шт.

78

V20356

NUT

O-RING spark plug wire harness

1шт.
