Запчасти Case IH 188 (42) - PARTS FOR INJECTION PUMP, DIESEL ENGINE

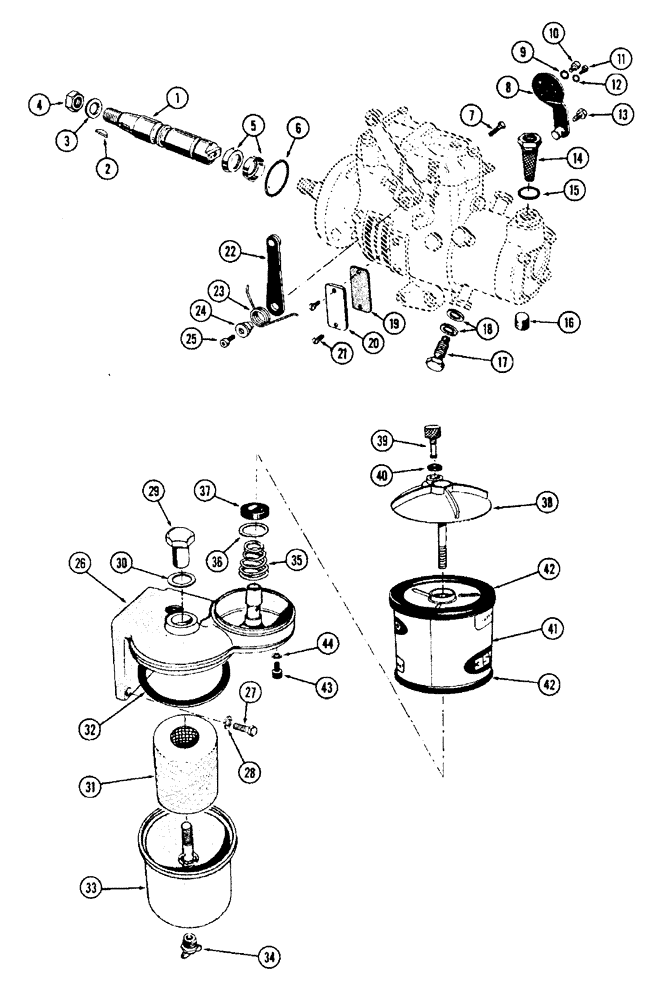

Схема запчастей Case IH 188 - (42) - PARTS FOR INJECTION PUMP, DIESEL ENGINE
26
42
24
41
19
20
25
22
10
18
34
15
12
29
23
1
3
2
32
16
44
17
14
5
33
6
11
8
35
38
43
9
30
21
42
13
28
27
4
36
31
40
7
37
39

Артикул

Название

Примечание

Количество

A35778

SPARE PART PUMP- injection (includes following parts)

1шт.

1

G47113

SHAFT

SHAFT- drive

1шт.

2

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

3

G49081

WASHER

LOCKWASHER - drive shaft nut

1шт.

4

25-159

JAM NUT,Jam, 9/16"-18, G5

NUT - jam, 9/16" N.F. hex

1шт.

5

R14711

SEAL

SEAL - drive shaft

2шт.

6

74244

SEAL,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

SEAL - pilot tube

1шт.

7

G49088

ADJUSTMENT SCREW,#10 - 32 x 1.781"

SCREW - adjusting, high idle

1шт.

8

G45337

ARM

ARM - shut-off

1шт.

9

73630

LOCK WASHER

WASHER - retaining screw

1шт.

10

73670

SCREW

SCREW - shut-off arm

1шт.

11

73646

SCREW

SCREW - position, shut-off arm

1шт.

12

493-21017

LOCK WASHER,Int Tooth, #8

LOCKWASHER - position screw

1шт.

13

73667

IGNITION SWITCH

- fitting, shut-off arm

1шт.

14

CAS73671

FILTER, ELEMENT

ELEMENT, FILTER CAP & FILTER

1шт.

15

73666

AIR CLEANER

- filter cap

1шт.

16

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Pipe, End plate

1шт.

17

73613

SCREW

SCREW - connector, fuel line

4шт.

18

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - connector screw

8шт.

19

51200272

GASKET

GASKET - timing cover

1шт.

20

G46330

COVER

COVER - timing window

1шт.

21

73514

SCREW

- timing cover

2шт.

22

G45338

ARM

ARM - throttle

1шт.

23

G48505

SPRING

SPRING - throttle arm

1шт.

24

G49621

RETAINER

RETAINER - spring

1шт.

25

G49079

SET SCREW

SCREW - throttle arm

1шт.

A35735

FILTER

FILTER ASSY -fuel (includes following parts)

1шт.

26

A35664

HEAD

HEAD - filter mounting, parts for fuel filter

1шт.

27

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Parts for fuel filter

3шт.

28

92-5

LOCK WASHER,5/16"

Parts for fuel filter

3шт.

29

A21131

NUT

NUT - primary filter stud, parts for fuel filter

1шт.

30

010344AB

GASKET - nut to head, parts for fuel filter

1шт.

31

A35863

FILTER, ELEMENT

ELEMENT, FILTER ELEMENT - primary filter, parts for fuel filter

1шт.

32

010345AB

GASKET - filter to head, parts for fuel filter

1шт.

33

D28085

SHELL

BODY - primary filter, parts for fuel filter

1шт.

34

217-103

COCK, DRAIN

DRAIN COCK, parts for fuel filter

1шт.

35

A35669

SPRING

SPRING - final filter, parts for fuel filter

1шт.

36

A35670

WASHER

WASHER - final filter, parts for fuel filter

1шт.

37

A35671

GASKET

SEAL - rubber, parts for fuel filter

1шт.

38

A35672

CAP

CAP - final filter, parts for fuel filter

1шт.

39

A35971

SCREW,1/4" - 20 x 0.695"

VALVE - bleeder, parts for fuel filter

1шт.

40

NLS

NO LONGER SERVICED

GASKET - bleeder valve, parts for fuel filter

1шт.

41

A35668

FILTER

FILTER ASSY - final, parts for fuel filter

1шт.

42

G46895

GASKET

GASKET - rubber, parts for fuel filter

2шт.

43

G49080

PLUG

PLUG - drain, final filter, parts for fuel filter

1шт.

44

G46886

O-RING

GASKET - drain plug, parts for fuel filter

1шт.

Выбрано товаров: 46
