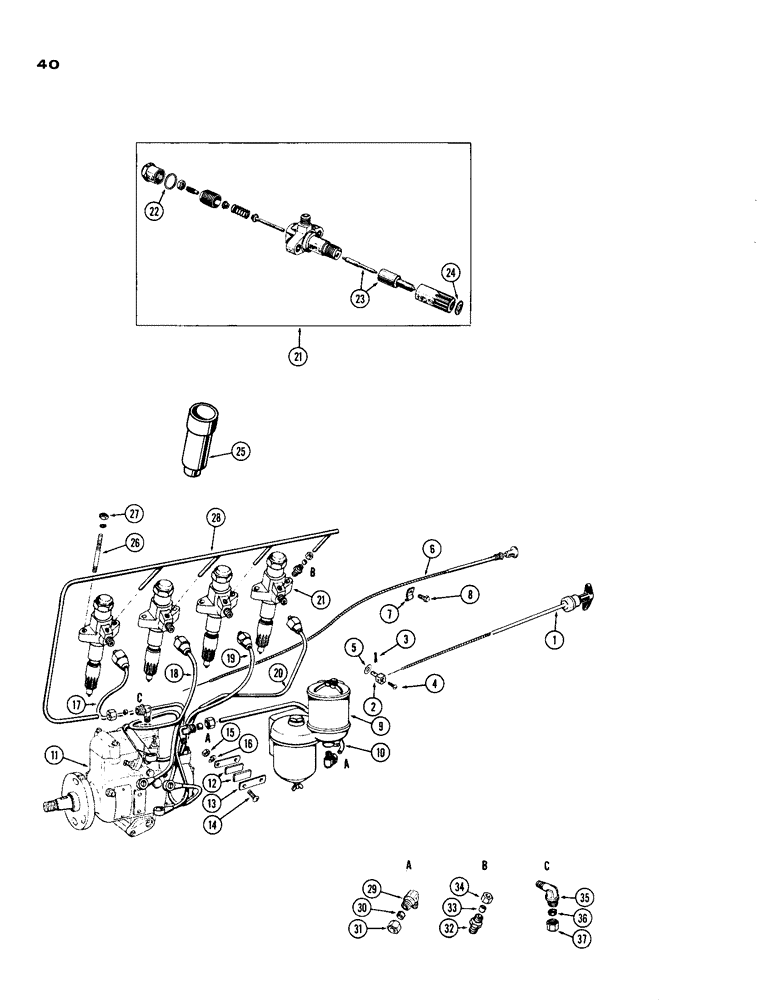

Запчасти Case IH 188 (40) - FUEL SYSTEM, DIESEL ENGINE

1

G45068

ROD - throttle

1шт.

2

A8281

PIN - throttle rod to pump lever

1шт.

3

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

1шт.

4

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- #8-32 x 1/4" rd. hd.

1шт.

5

O5177AB

X

WASHER -, Serial Range: pin-lever

1шт.

6

G45472

WIRE - fuel shut-off

1шт.

7

O2825AB

X

CLIP - shut-off, Serial Range: wire-block

1шт.

8

193-517

SCREW,SEMS, Hex Hd, 1/4"-20 x 1/2"

- 1/4" x 1/2" N.C. hex hd.

1шт.

9

A35735

FILTER

ASSY - (For repairs see page 43)

1шт.

10

A36566

TUBE

LINE - fuel, Serial Range: filter-pump

1шт.

11

A35778

PUMP - fuel injection (See page 43)

1шт.

12

09973AB

CUSHION - injection, Serial Range: tube-clamp

2шт.

13

09970AB

CLAMP - injection tube

2шт.

14

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- #10-24 x 1" rd. hd.

2шт.

15

129-7

NUT,Hex, #10 - 24

- hex #10-24

2шт.

16

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

17

A35058

TUBE

- pump to #1 injector (w/2-G49407 washers)

1шт.

18

A35059

TUBE

- pump to #2 injector (w/2-G49407 washers)

1шт.

19

A35060

TUBE

- pump to #3 injector (w/2-G49407 washers)

1шт.

20

A35061

TUBE

- pump to #4 injector (w/2-G49407 washers)

1шт.

21

A49056

NOZZLE CAP

INJECTOR - fuel

4шт.

22

G46885

GASKET

- injector cap

1шт.

23

A35085

NOZZLE CAP

NOZZLE - injector

1шт.

24

G49068

GASKET

- seat, Serial Range: injector-liner

1шт.

25

G11724

LINER

-, Serial Range: injector-head

4шт.

26

VT4510

X

STUD - injector to head (3/8" x 1-3/4")

8шт.

27

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

8шт.

28

A36511

PIPE

TUBE - manifold, injector leak-off

1шт.

29

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

- tube to filter and pump

2шт.

30

222-104

SLEEVE,3/8" Tube

- tube, 3/8" O.D.

1шт.

31

222-114

NUT,5/8"-24

NUT - tube, 3/8" O.D.

1шт.

32

222-21

FITTING,7/16"-24 x 1/8" NPTF

Injector leak-off 7/16"-24 x 1/8" NPTF

4шт.

33

222-101

SLEEVE,3/16" Tube

- tube, 3/16" O.D.

1шт.

34

222-111

TUBE NUT,7/16" - 24

NUT - tube, 3/16" O.D.

1шт.

35

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

- leak-off to pump

1шт.

36

222-103

SLEEVE,5/16" Tube

1шт.

37

222-113

TUBE NUT,9/16"-24

NUT - tube, 5/16" O.D.

1шт.
