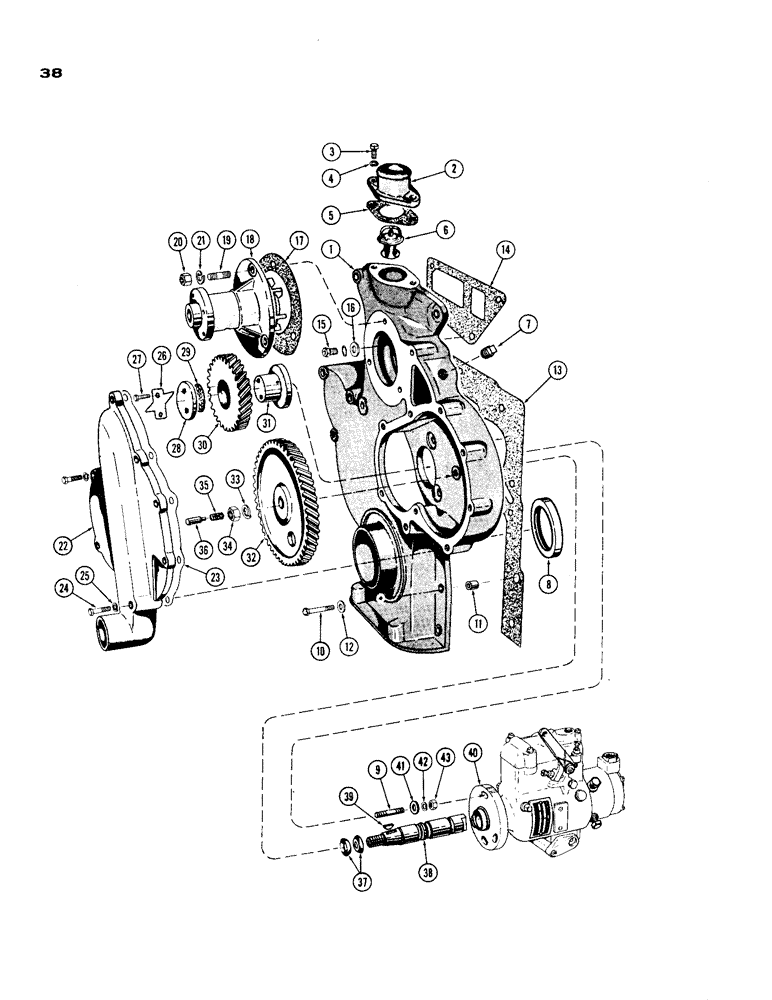

Запчасти Case IH 188 (38) - FUEL INJECTION PUMP DRIVE, DIESEL ENGINE

1

A36823

COVER

- injection pump drive

1шт.

2

G2144

FITTING

CONNECTION - water outlet

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

G46907

GASKET

- water outlet

1шт.

6

A57641

THERMOSTAT

- (180deg.) ( replaced G45788 )

1шт.

7

221-1013

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - pipe, 3/8" sq. hd.

1шт.

8

A36609

OIL SEAL

OIL SEAL - crankshaft front

1шт.

9

G11204

STUD

- pump mtg. (3/8" x 1-7/16")

3шт.

10

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

10

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C. hex. hd.

3шт.

10

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

10

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8" x 2-3/4" N.C. hex. hd.

3шт.

10

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- 3/8" x 3" N.C. hex. hd.

1шт.

10

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

3шт.

11

VT4535

X

RING - dowel, Serial Range: cover-block

2шт.

12

95-6

WASHER,3/8"

- plain 3/8"

2шт.

13

G46857

GASKET

-, Serial Range: cover-block

1шт.

14

G46858

GASKET

-, Serial Range: cover-head

1шт.

15

G49083

BOLT

- drilled, cover to hd. (1/2" x 3/4")

1шт.

16

VT4504

WASHER

- drilled bolt

1шт.

17

G46875

GASKET

- water, Serial Range: pump-cover

1шт.

18

G11939

PUMP

WATER PUMP - complete (See Page 23)

1шт.

18

A146584GV

WATER PUMP

Value, Water Pump Assy.

1шт.

18

A146584R

REMAN-WATER PUMP

Reman For New P/N G11939, Water Pump, Complete

1шт.

18

A146584C

CORE-WATER PUMP

Return Part Number

1шт.

19

VT4512

X

STUD - pump mtg. (3/8" x 1")

3шт.

20

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

21

92-6

LOCK WASHER,3/8"

3шт.

22

G2077

COVER ASSY

COVER - drive gear

1шт.

23

G46859

GASKET

- gear cover

1шт.

24

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

24

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

25

92-6

LOCK WASHER,3/8"

9шт.

26

G11746

PLATE

- lock, idler gear

1шт.

27

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

28

G11732

PLATE

- thrust, idler gear

1шт.

29

G11728

SHIM,.005" Thk

Idler gear .005" Thk

1шт.

29

G11729

SHIM,.006" Thk

Idler gear .006" Thk

1шт.

29

G11730

SHIM,.007" Thk

Idler gear .007" Thk

1шт.

29

G11731

SHIM,.009" Thk

Idler gear .009" Thk

1шт.

30

G11852

GEAR

ASSY - idler (includes bushing)

1шт.

31

A49021

X

HUB - idler gear

1шт.

32

G2076

GEAR

- drive, injection pump

1шт.

33

G49081

WASHER

LOCKWASHER - pump drive shaft

1шт.

34

25-159

JAM NUT,Jam, 9/16"-18, G5

- 9/16" N.F. hex. jam

1шт.

35

G48502

SPRING

- thrust, pump drive shaft

1шт.

36

G47128

PLUNGER

- thrust spring

1шт.

37

R14711

SEAL

- drive shaft

2шт.

38

G47113

SHAFT

- pump drive

1шт.

39

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

40

A36736

PUMP - fuel injection (See Page 41)

1шт.

41

VT3695

X

WASHER - pump mtg. stud

3шт.

42

92-6

LOCK WASHER,3/8"

3шт.

43

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

3шт.
