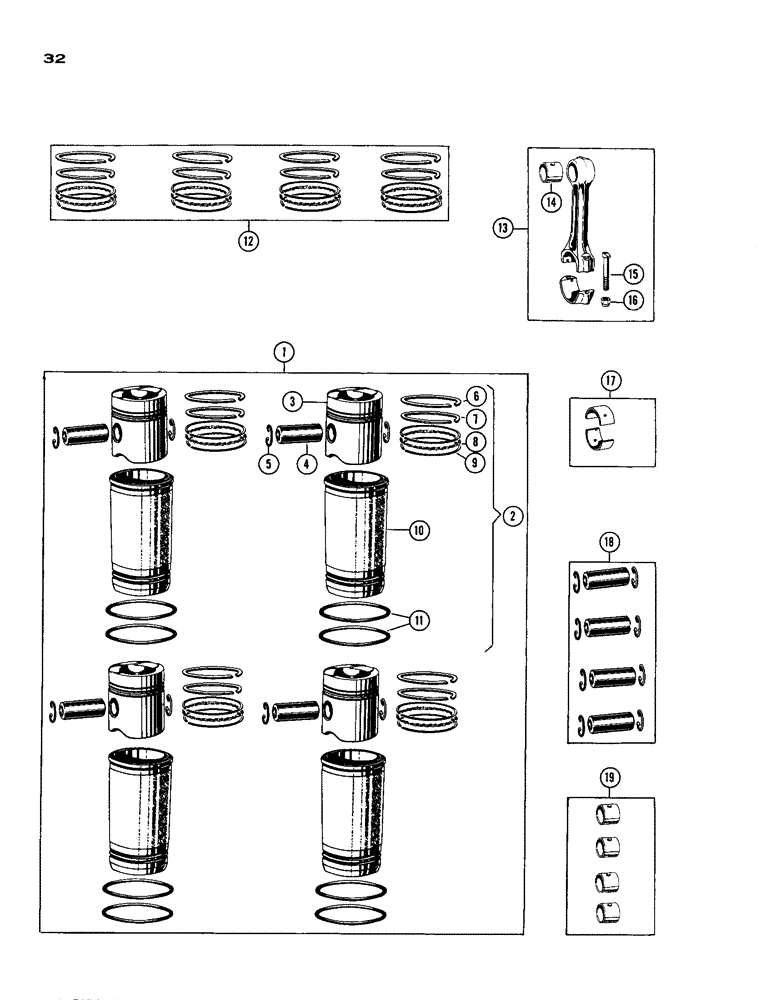

Запчасти Case IH 188 (32) - PISTONS, SLEEVES AND CONNECTING RODS, DIESEL ENGINE

1

A35772

KIT, LINER, PISTON R

PISTON & SLEEVE - matched set of 4

1шт.

2

A36391

SLEEVE ASSY

PISTON & SLEEVE - matched

4шт.

3

G2137

X

PISTON

1шт.

4

NSS

NOT SOLD SEPARAT

PIN - wrist (See ref. 18)

1шт.

5

G46702

RING, LOCKING

RING - retaining (See ref. 18)

2шт.

6

G4819

RING

- top (See ref. 12)

1шт.

7

G4817

RING

- compression (See ref. 12)

1шт.

8

G47174

SPRING

SPACER - oil rail (See ref. 12)

1шт.

9

G47155

RAIL

- oil (See ref. 12)

2шт.

10

G2110

SLEEVE

- cylinder

1шт.

11

G46888

O-RING,3.737" ID x 3.943" OD

"O" RING - sleeve packing

2шт.

12

G37075

RING

SET - 4 pistons

1шт.

13

A49023

X

CONNECTING ROD ASSY

4шт.

14

NSS

NOT SOLD SEPARAT

BUSHING - (See ref. 19)

1шт.

15

G49064

STEP BOLT

BOLT - cap

2шт.

16

G49060

NUT

- cap bolt

2шт.

17

A36500

SEAL

LINERS - bearing, conn. rod (Std.)

4шт.

17

A36501

BEARING LINER

LINERS - bearing, conn. rod (.002"undersize)

4шт.

17

A36502

LINING

LINERS - bearing, conn. rod (.010"undersize)

4шт.

17

A36503

BEARING LINER

LINERS - bearing, conn. rod (.020"undersize)

4шт.

17

A36504

KIT

LINERS - bearing, conn. rod (.030"undersize)

4шт.

18

A35771

KIT

PIN SET - piston (incl. 8-G46702 rings)

1шт.

19

G11953

BUSHING

- conn. rod (Set of 4)

1шт.
