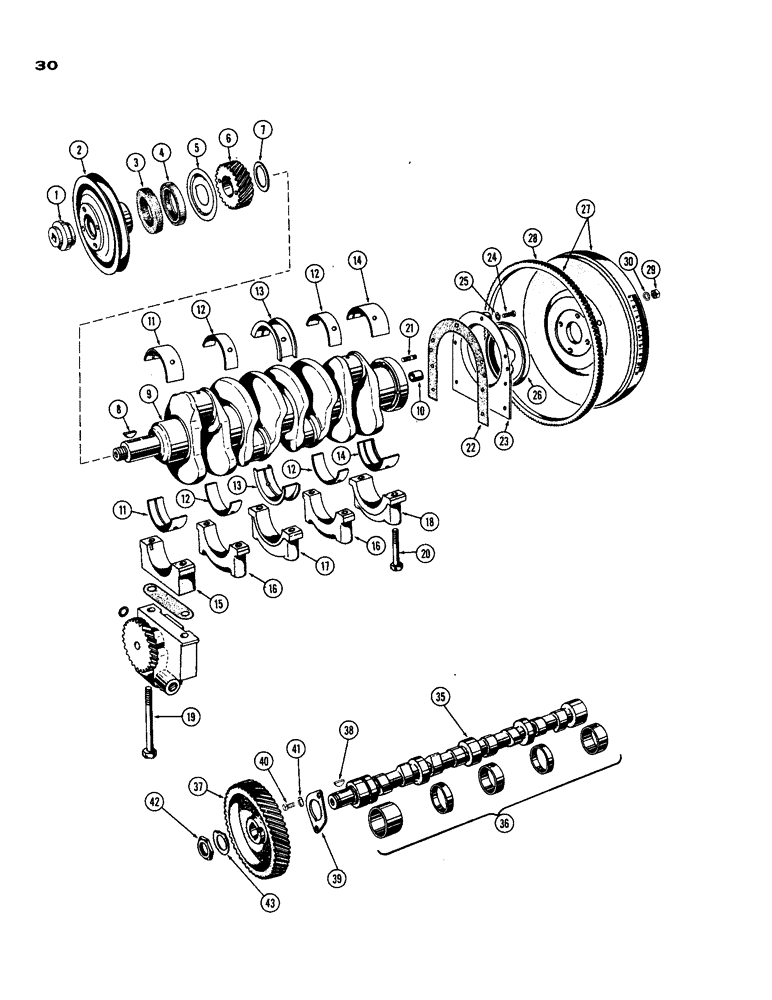

Запчасти Case IH 188 (30) - CRANKSHAFT AND FLYWHEEL, CAMSHAFT, DIESEL ENGINE

1

A35673

NUT

-, Serial Range: pulley-crankshaft

1шт.

2

G11342

X

PULLEY - fan & generator drive

1шт.

3

VT3380

SEAL - dust

1шт.

4

A36609

OIL SEAL

OIL SEAL - front, crankshaft

1шт.

NOTE:THERE IS A WEAR RING KIT AVAILABLE FOR REF#4 ORDER A155893 8/21/96

1шт.

5

VT3220

X

SLINGER - oil

1шт.

6

VT3225

X

GEAR - crankshaft (24T)

1шт.

7

VT3377

X

SPACER - thrust, crankshaft

1шт.

8

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley & gear to crankshaft

2шт.

9

G11889

CRANKSHAFT

( replaced A49025 )

1шт.

10

VT3370

X

BUSHING - pilot

1шт.

11

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

LINERS - front bearing(standard)

1шт.

11

A36481

LINING

LINERS - front bearing(.002" undersize)

1шт.

11

A36482

BEARING LINER,73.44mm ID x 78.54mm OD x 32.66mm W

LINERS - front bearing(.010" undersize)

1шт.

11

A36483

LINING

LINERS - front bearing(.020" undersize)

1шт.

11

A36484

LINING

LINERS - front bearing(.030" undersize)

1шт.

12

A36485

LINING

LINERS - intermediate brg.(standard)

2шт.

12

A36486

LINING

LINERS - intermediate bearing(.002" undersize)

2шт.

12

A36487

BEARING LINER,73.44mm ID x 78.54mm OD x 25.4mm W

LINERS - intermediate brg.(.010" undersize)

2шт.

12

A36488

CRANKSHAFT BEARING,3.067" ID x 3.092" OD x 1"

LINERS - intermediate brg.(.020" undersize)

2шт.

12

A36489

LINING

LINERS - intermediate brg.(.030" undersize)

2шт.

13

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

LINERS - center bearing(standard)

1шт.

14

A36496

LINING

LINERS - rear brg.(.002" undersize)

1шт.

14

A36497

BEARING LINER,73.44mm ID x 78.54mm OD x 39.69mm W

LINERS - rear brg.(.010" undersize)

1шт.

14

A36498

KIT

LINERS - rear brg.(.020" undersize)

1шт.

14

A36499

BEARING LINER

LINERS - rear bearing (.030" undersize)

1шт.

15

G2126

CAP

- front bearing

1шт.

16

G2128

CAP

- intemediate bearing

2шт.

17

G2127

CAP

- center bearing

1шт.

18

G2129

CAP

- rear bearing

1шт.

19

G49077

BOLT

- front brg.cap(1/2" x 5-1/8")

2шт.

20

G49078

BOLT - bearing cap(1/2" x 4-1/2")

8шт.

21

G49519

STUD - flywheel to crankshaft (7/16" x 2-3/4")

4шт.

22

G46802

GASKET

- oil seal retainer

1шт.

23

G2017

RETAINER

- rear oil seal

1шт.

24

26-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- 1/4" x 3/4" N.C. hex. hd. ( replaced 13-412 )

4шт.

24

26-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

- 1/4" x 1" N.C. hex hd ( replaced 13-416 )

3шт.

25

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

26

A36610

OIL SEAL

OIL SEAL - rear, crankshaft

1шт.

REF#26 THERE IS A WEAR RING KIT AVAILABLE ORDER PART# A51339. 8/21/96

1шт.

27

G37092

FLYWHEEL - ASSY

1шт.

28

G11710

GEAR

- ring (135T)

1шт.

29

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex

4шт.

30

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

LOCKWASHER - 7/16" std ( replaced 92-7 )

4шт.

35

A36853

X

CAMSHAFT

1шт.

36

A36317

RING, SNAP

BUSHING SET - camshaft

1шт.

37

G2066

X

GEAR - camshaft

1шт.

38

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Gear to camshaft #6, 5/32" x 5/8"

1шт.

39

VT3365

X

PLATE - thrust

1шт.

40

VT4500

X

SCREW - thrust plate

2шт.

41

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

42

VT4536

X

NUT -, Serial Range: gear-camshaft

1шт.

43

VT4517

X

LOCKWASHER - gear nut

1шт.
