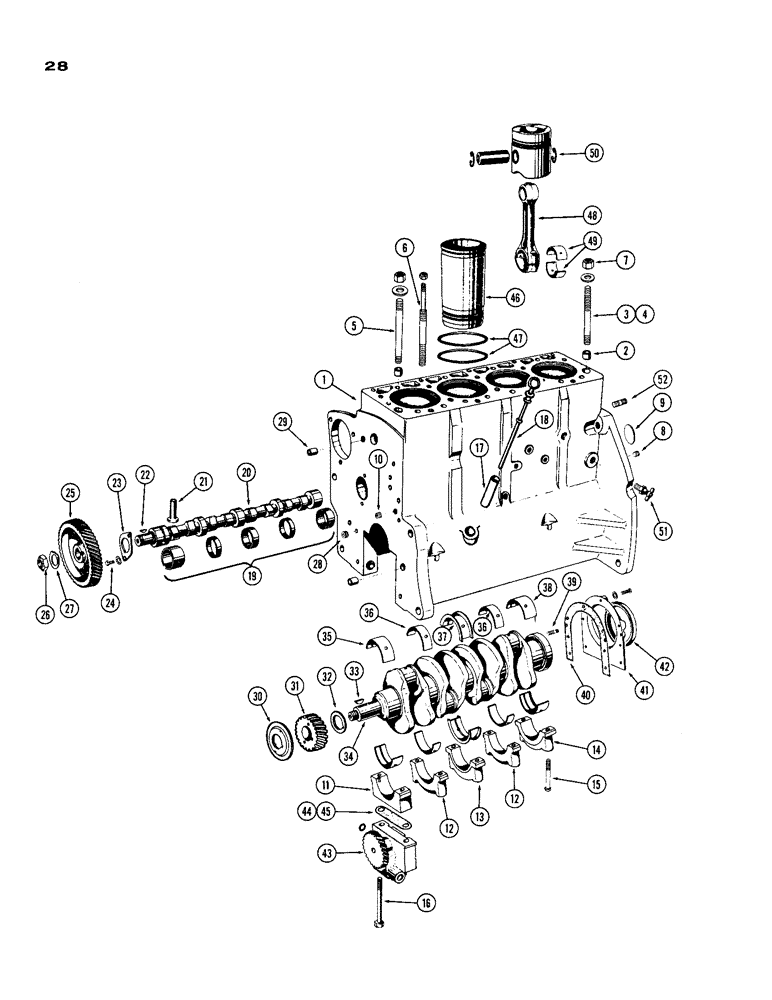

Запчасти Case IH 188 (29A) - CYLINDER BLOCK ASSEMBLY, WITHOUT OIL FILLER HOLE, DIESEL ENGINE

1

A36315

SHORT BLOCK ASSY - (See page 29)

1шт.

2

A36309

BLOCK ASSY - stripped

1шт.

3

G49608

RING

- dowel, Serial Range: head-block

2шт.

4

A35370

BOLT

BOLT - head to block (1/2" x 4")

4шт.

5

A35371

BOLT

- head to block (1/2" x 5-5/8")

11шт.

6

A35372

BOLT (SPREADER)

BOLT - head to block (1/2" x 6")

2шт.

7

G49070

PLUG

- drilled, 1/4" socket hd

1шт.

8

VT3398

X

PLUG - expansion, 2-1/8" dia

1шт.

9

G2126

CAP

- front bearing, crankshaft

1шт.

10

G2128

CAP

- intermediate bearing, crankshaft

2шт.

11

G2127

CAP

- center bearing, crankshaft

1шт.

12

G2129

CAP

- rear bearing, crankshaft

1шт.

13

G49078

BOLT - bearing cap (1/2" x 4-1/2")

8шт.

14

G49077

BOLT

- bearing cap (1/2" x 5-1/8")

2шт.

15

221-32

PLUG,Sq Soc, 3/8"-18 NPTF

- pipe, 3/8" socket hd

1шт.

16

A36317

RING, SNAP

BUSHING SET - camshaft (See Page 27)

1шт.

17

A36853

X

CAMSHAFT

1шт.

18

G47077

TAPPET

- valve

8шт.

19

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Camshaft gear #6, 5/32" x 5/8"

1шт.

20

VT3365

X

PLATE - thrust, camshaft

1шт.

21

VT4500

X

SCREW - thrust plate

2шт.

22

G2066

X

GEAR - camshaft

1шт.

23

VT4536

X

NUT - camshaft gear

1шт.

24

VT4517

X

LOCKWASHER - camshaft nut

1шт.

25

VT3395

X

PLUG - pipe, oil gallery, front and rear

2шт.

26

VT4535

X

RING - dowel, Serial Range: cover-block

2шт.

27

VT3220

X

SLINGER - oil, crankshaft gear

1шт.

28

VT3225

X

GEAR - crankshaft

1шт.

29

VT3377

X

SPACER - thrust, crankshaft

1шт.

30

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley and gear to crankshaft

2шт.

31

CRANKSHAFT & BEARINGS (See Page 31)

1шт.

32

G49519

STUD -, Serial Range: flywheel-crankshaft

4шт.

33

G46802

GASKET

- oil seal retainer

1шт.

34

G2017

RETAINER

- rear oil seal

1шт.

35

A36610

OIL SEAL

OIL SEAL - rear, crankshaft

1шт.

NOTE:THERE IS A WEAR KIT AVAILABLE FOR REF#35 ORDER A49851 8/21/96

1шт.

36

A49050

X

OIL PUMP - (See page 35)

1шт.

37

O8416AB

X

"O" RING - oil port

1шт.

38

G11337

SHIM,.002" Thk

Pump to block .002" Thk

2шт.

39

G11338

SHIM,.005" Thk

Pump to block .005" Thk

1шт.

40

A36562

STUD

- head and cover

2шт.

41

G2110

SLEEVE

- cylinder (See Page 33)

4шт.

42

G46888

O-RING,3.737" ID x 3.943" OD

"O" RING - sleeve packing

8шт.

43

A49023

X

CONNECTING ROD ASSY - (See page 33)

4шт.

44

A36500

SEAL

LINERS - bearing (See Page 33)

4шт.

45

NSS

NOT SOLD SEPARAT

PIN - piston (See page 33)

4шт.

46

G46702

RING, LOCKING

RING - retaining (See page 33)

8шт.

47

PISTON & RINGS (See Page 33)

1шт.

48

VT3713

X

STUD -, Serial Range: engine-housing

2шт.

49

G45139

BRACKET

SUPPORT - dipstick

1шт.

50

G37037

DIPSTICK

- oil level

1шт.

51

G46832

SEAL - rubber, dipstick

1шт.

52

217-103

COCK, DRAIN

DRAIN COCK - engine block

1шт.

53

VT3361

X

NUT - head and valve cover stud

2шт.
