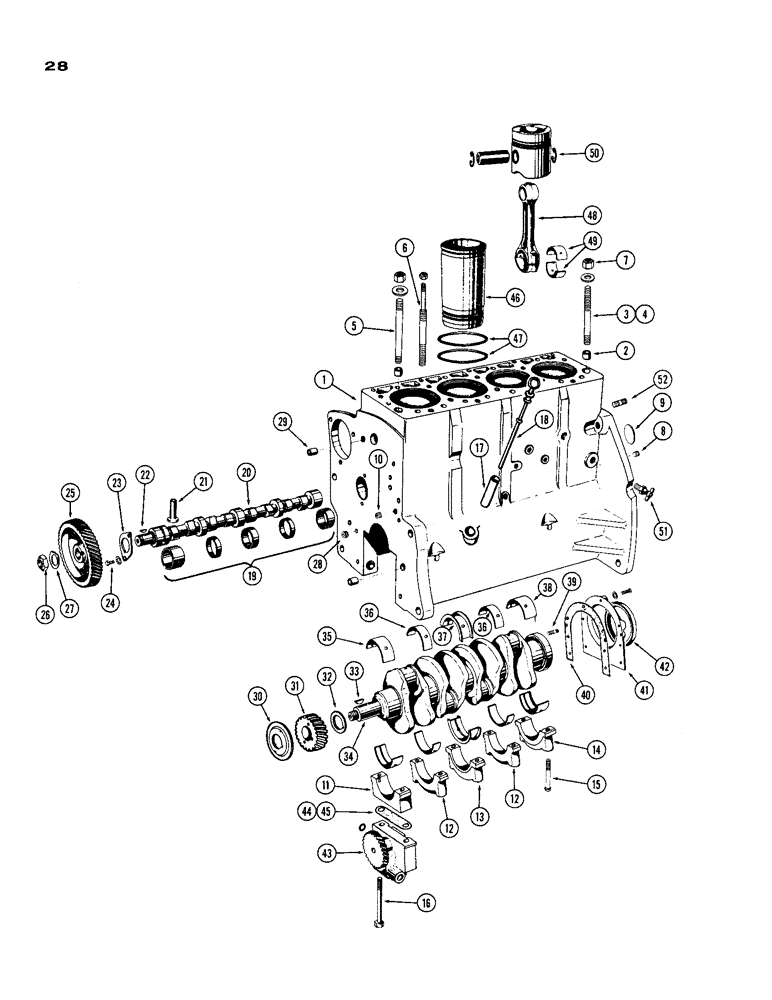

Запчасти Case IH 188 (28) - CYLINDER BLOCK, DIESEL ENGINE, WITH OIL FILLER HOLE

A40592

SHORT BLOCK ASSY - (See page 29B)

1шт.

1

A40590

BLOCK ASSY - stripped

1шт.

2

G49608

RING

- dowel, Serial Range: head-block

2шт.

3

A36904

STUD

- head (1/2" x 4")

4шт.

4

A36902

STUD

- head (1/2" X 5-5/8")

11шт.

5

A36905

STUD

- head (1/2" x 6")

2шт.

6

A36903

STUD

- head and cover

2шт.

7

A36906

NUT

- cylinder head studs

19шт.

8

221-32

PLUG,Sq Soc, 3/8"-18 NPTF

- (3/8" P.T. sckt. hd)

1шт.

9

VT3398

X

PLUG - (2-1/8" expansion)

1шт.

10

G49070

PLUG

- drilled, front oil gallery

1шт.

11

G2126

CAP

- front bearing, crankshaft

1шт.

12

G2128

CAP

- intermediate bearing, crankshaft

2шт.

13

G2127

CAP

- center bearing, crankshaft

1шт.

14

G2129

CAP

- rear bearing, crankshaft

1шт.

15

G49078

BOLT - bearing cap (1/2" x 4-1/2")

8шт.

16

G49077

BOLT

- bearing cap (1/2" x 5-1/8")

2шт.

17

A36774

X

TUBE - oil filler & dipstick support

1шт.

18

A36775

X

DIPSTICK - oil level

1шт.

19

A36317

RING, SNAP

BUSHING SET - camshaft

1шт.

20

A36853

X

CAMSHAFT

1шт.

21

G47077

TAPPET

- valve

8шт.

22

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Gear to camshaft #6, 5/32" x 5/8"

1шт.

23

VT3365

X

PLATE - thrust, camshaft

1шт.

24

VT4500

X

SCREW - thrust plate

2шт.

25

G2066

X

GEAR - camshaft timing

1шт.

26

VT4536

X

NUT - camshaft gear

1шт.

27

VT4517

X

WASHER - lock, camshaft nut

1шт.

28

VT3395

X

PLUG - oil gallery, front and rear

2шт.

29

VT4535

X

RING - dowel, Serial Range: cover-block

2шт.

30

VT3220

X

SLINGER - oil, crankshaft gear

1шт.

31

VT3225

X

GEAR - crankshaft timing

1шт.

32

VT3377

X

SPACER - thrust, crankshaft

1шт.

33

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley and gear to crankshaft

2шт.

34

A49025

CRANKSHAFT

1шт.

35

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

LINERS - bearing, front (std.)

1шт.

36

A36485

LINING

LINERS - bearing, intermediate (std.)

1шт.

37

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

LINERS - bearing, center (std.)

1шт.

38

A36495

BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W

LINERS - bearing, rear (std.)

1шт.

39

VT4513

X

STUD -, Serial Range: flywheel-crankshaft

4шт.

REF#39 STUD,ON LATER UNITS THEY USED 121-300

1шт.

40

G46802

GASKET

- oil seal retainer

1шт.

41

G2017

RETAINER

- rear oil seal

1шт.

42

A36610

OIL SEAL

OIL SEAL - rear, crankshaft

1шт.

43

A49050

X

OIL PUMP - (See page 35)

1шт.

44

G11337

SHIM,.002" Thk

Pump to block .002" Thk

2шт.

45

G11338

SHIM,.005" Thk

Pump to block .005" Thk

1шт.

46

G2110

SLEEVE

- cylinder (See page 33)

4шт.

47

G46888

O-RING,3.737" ID x 3.943" OD

"O" RING - sleeve packing

8шт.

48

A49023

X

CONNECTING ROD ASSY - (See page 33)

4шт.

49

A36500

SEAL

LINERS - bearing (std.)

4шт.

50

A36391

SLEEVE ASSY

PISTON ASSY - (See page 33)

4шт.

51

217-103

COCK, DRAIN

DRAIN COCK

1шт.

52

VT3531

X

STUD - eng. mtg. (5/8" x 3")

2шт.
