Запчасти Case IH 188 (27A) - CYLINDER HEAD ASSEMBLY, DIESEL ENGINE, CASTING NUMBER A36296

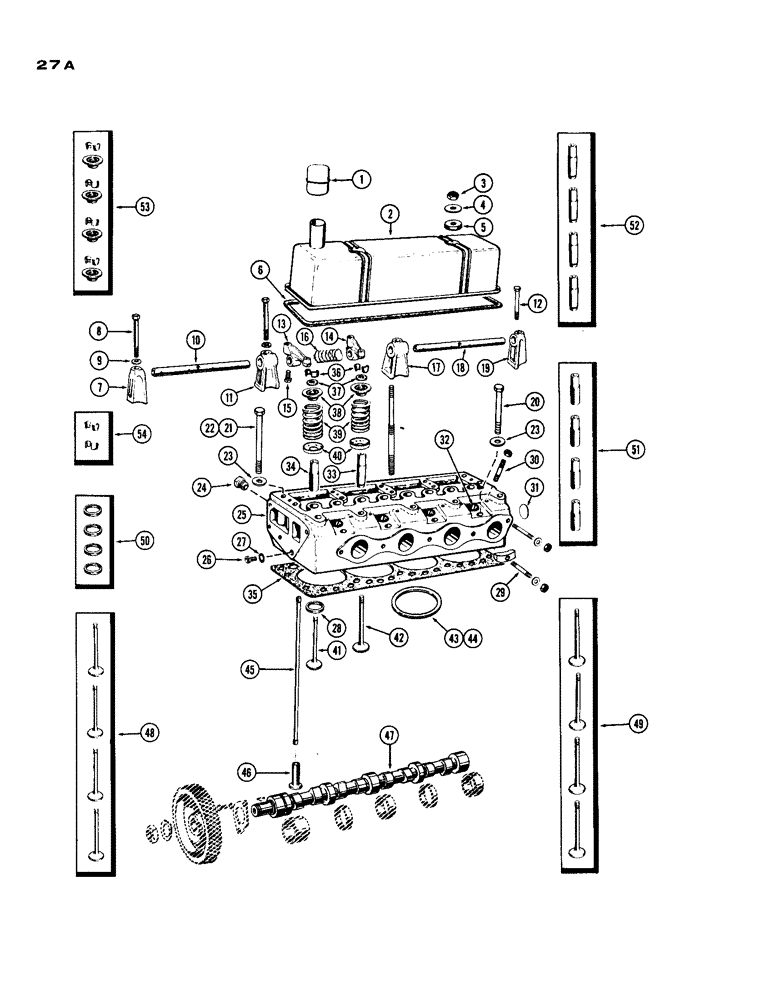

Схема запчастей Case IH 188 - (27A) - CYLINDER HEAD ASSEMBLY, DIESEL ENGINE, CASTING NUMBER A36296
14
39
6
13
9
29
2
49
34
15
35
26
51
5
4
25
38
12
33
10
3
44
40
54
53
52
36
1
22
41
16
50
23
27
18
23
21
42
43
20
28
45
17
47
37
24
31
46
11
19
8
48
7
32
30

Артикул

Название

Примечание

Количество

1

A36608

CAP

- oil filler and breather

1шт.

2

G37060

COVER - valve

1шт.

3

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

4

G49400

WASHER

- valve cover nut

2шт.

5

G46867

GROMMET

- rubber, valve cover

2шт.

6

G46866

GASKET

-, Serial Range: cover-head

1шт.

7

G2100

BRACKET

- front, rockershaft

1шт.

8

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8" x 3-1/2" N.C. hex hd

4шт.

9

VT4504

WASHER

- bracket bolt

5шт.

10

G11743

SHAFT

- front, rocker arm

1шт.

11

G2101

BRACKET

- center, rocker shaft

1шт.

12

G49067

BOLT

- drilled, rear bracket

1шт.

13

G45770

ARM

ROCKER ARM - R.H. (includes ref. 15)

4шт.

14

G45771

ARM

ROCKER ARM - L.G. (includes ref. 15)

4шт.

15

G49075

ADJUSTMENT SCREW,3/8" - 24 x 0.50"

- adjusting, rocker arm

1шт.

16

G48501

SPRING

- rocker shaft

4шт.

17

G2101

BRACKET

- intermediate, rockershaft

2шт.

18

G11747

X

SHAFT - rear rockershaft

1шт.

19

A36615

BRACKET

- rear rockershaft

1шт.

20

A35371

BOLT

- head to block (1/2" x 5")

11шт.

21

A35372

BOLT (SPREADER)

BOLT - head to block (1/2" x 5-1/2")

2шт.

22

A35370

BOLT

BOLT - head to block (1/2" x 3-1/4")

4шт.

23

VT3359

WASHER - head bolt and stud

19шт.

24

VT2343

X

ADAPTER - heat, Serial Range: bulb-head

1шт.

25

A36764

HEAD ASSY - cylinder (casting No. A36296)

1шт.

26

G49083

BOLT

- drilled, gear cover

1шт.

27

193-77

LOCK WASHER,Int Tooth, 1/2"

LOCKWASHER - 1/2" ext. Shakeproof

1шт.

28

NSS

NOT SOLD SEPARAT

INSERT - valve seat (See ref. 50)

4шт.

29

A35175

STUD

- manifold clamp (3/8" x 2-7/16")

6шт.

30

VT4510

X

STUD - manifold & injector (3/8" x 1-3/4")

12шт.

31

VT3479

X

PLUG - 1-3/4" expansion)

1шт.

32

G11724

LINER

- fuel injector

4шт.

33

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (See ref. 52)

4шт.

34

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (See ref. 51)

4шт.

35

A36877

GASKET

-, Serial Range: head-block

1шт.

36

NSS

NOT SOLD SEPARAT

LOCK - retainer, valve spring (See ref. 54)

16шт.

37

G46851

SEAL

- rubber, valve stem

8шт.

38

NSS

NOT SOLD SEPARAT

RETAINER - valve spring (See ref. 53)

8шт.

39

VT3372

SPRING

- valve

8шт.

40

G49065

SEAT

- valve spring

8шт.

41

NSS

NOT SOLD SEPARAT

VALVE - exhaust (See ref. 48)

4шт.

42

NSS

NOT SOLD SEPARAT

VALVE - intake (See ref. 49)

4шт.

43

A36900

RING, PISTON

RING - fire (See ref. 44) (color coded orange)

4шт.

44

A37031

RING

- fire (Oversize) (color coded black)

4шт.

45

G47079

ROD

- push

8шт.

46

G47077

TAPPET

- valve

8шт.

47

A36853

X

CAMSHAFT - (See page 30)

1шт.

48

G11948

KIT

VALVES - exhaust (Set of 4)

1шт.

49

G11947

VALVE

S - intake (Set of 4)

1шт.

50

G11986

KIT

INSERTS - exhaust valve seat (Set of 4)

1шт.

51

G11946

GUIDE

- exhaust valve stem (Set of 4)

1шт.

52

G11945

GUIDE

S - intake valve stem (Set of 4)

1шт.

53

G11927

RETAINER

- valve spring (Set of 4 w/locks)

2шт.

54

G11929

LOCK

- valve spring retainer (Set of 4)

4шт.

Выбрано товаров: 54
