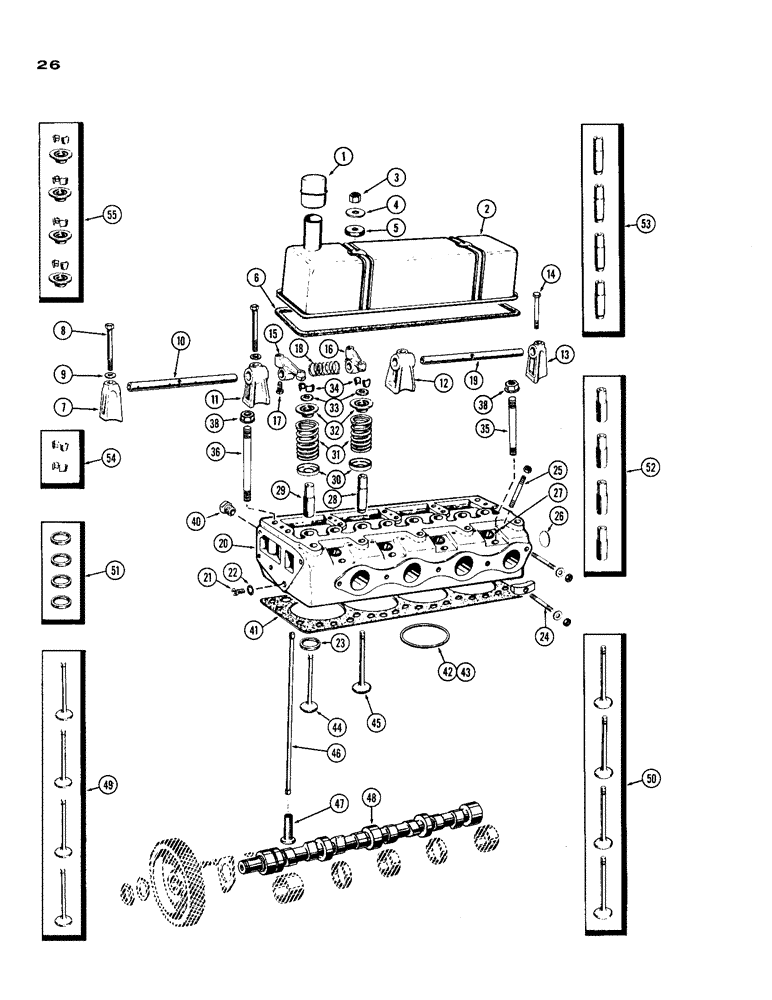

Запчасти Case IH 188 (26) - CYLINDER HEAD ASSEMBLY, DIESEL ENGINE, CASTING NUMBER A36876

1

A36608

CAP

- oil filler and breather

1шт.

2

G37060

COVER - valve

1шт.

3

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex)

2шт.

4

G49400

WASHER

- cover nut

2шт.

5

G46867

GROMMET

- valve cover (rubber)

2шт.

6

G46866

GASKET

-, Serial Range: cover-head

1шт.

7

G2100

BRACKET

- front, rockershaft

1шт.

8

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8" x 3-1/2" N.C. hex)

4шт.

9

VT4504

WASHER

- bracket bolt

5шт.

10

G11743

SHAFT

- front, rocker arm

1шт.

11

G2101

BRACKET

- center, rockershaft

1шт.

12

G2102

BRACKET

- intermediate, rockershaft

1шт.

13

A36615

BRACKET

- rear, rockershaft

1шт.

14

G49067

BOLT

- drilled, rear bracket

1шт.

15

G45770

ARM

ROCKER ARM - R.H. (Incl. item 17)

4шт.

16

G45771

ARM

ROCKER ARM - L.H. (Incl. item 17)

4шт.

17

G49075

ADJUSTMENT SCREW,3/8" - 24 x 0.50"

- adjusting

1шт.

18

G48501

SPRING

- rockershaft

4шт.

19

G11747

X

SHAFT - rear, rocker arm

1шт.

20

A36880

HEAD ASSY. - (casting No. A36876)

1шт.

21

G49083

BOLT

- drilled, gear cover

1шт.

22

193-77

LOCK WASHER,Int Tooth, 1/2"

WASHER - (1/2" ext. skpf.)

1шт.

23

NSS

NOT SOLD SEPARAT

INSERT - valve seal (see ref. 51)

4шт.

24

A35175

STUD

- manifold clamp (3/8" x 2-7/16")

6шт.

25

VT4510

X

STUD - manifold & injector (3/8" x 1-3/4")

12шт.

26

VT3479

X

PLUG - (1-3/4" expansion)

1шт.

27

G11724

LINER

- fuel injector

4шт.

28

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (See Item 53)

4шт.

29

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (See Item 52)

4шт.

30

G49065

SEAT

- valve spring

8шт.

31

VT3372

SPRING

- valve

8шт.

32

NSS

NOT SOLD SEPARAT

RETAINER - valve spring (See Item 55)

8шт.

33

G46851

SEAL

- valve stem (rubber)

8шт.

34

NSS

NOT SOLD SEPARAT

LOCK - retainer, valve spring (See Item 54)

16шт.

35

A36902

STUD

- head to block (1/2" x 5-5/8")

11шт.

36

A36905

STUD

- head to block (1/2" x 6-1/8")

2шт.

36

A36904

STUD

- head to block (1/2" x 4")

4шт.

38

A37030

FLANGE NUT

- head studs (flanged)

19шт.

40

VT2343

X

ADAPTER - heat, Serial Range: bulb-head

1шт.

41

A36877

GASKET

-, Serial Range: head-lock

1шт.

42

A36900

RING, PISTON

RING - fire (See item 43) (color coded orange)

4шт.

43

A37031

RING

- fire (oversize) (color coded black)

4шт.

44

NSS

NOT SOLD SEPARAT

VALVE - exhaust (see item 49)

4шт.

45

NSS

NOT SOLD SEPARAT

VALVE - intake (see item 50)

4шт.

46

G47079

ROD

- push

8шт.

47

G47077

TAPPET

- valve

8шт.

48

A36853

X

CAMSHAFT - (see page 30)

1шт.

49

G11948

KIT

VALVE KIT - exhaust (set of 4)

1шт.

50

G11947

VALVE

KIT - intake (set of 4)

1шт.

51

G11986

KIT

INSERT KIT - valve set (Set of 4)

1шт.

52

G11946

GUIDE

KIT - exhaust valve (set of 4)

1шт.

53

G11945

GUIDE

KIT - intake valve (set of 4)

1шт.

54

G11929

LOCK

KIT - valve spring (Set of 4)

4шт.

55

G11927

RETAINER

KIT - valve spring (set of 4 w/locks)

2шт.
