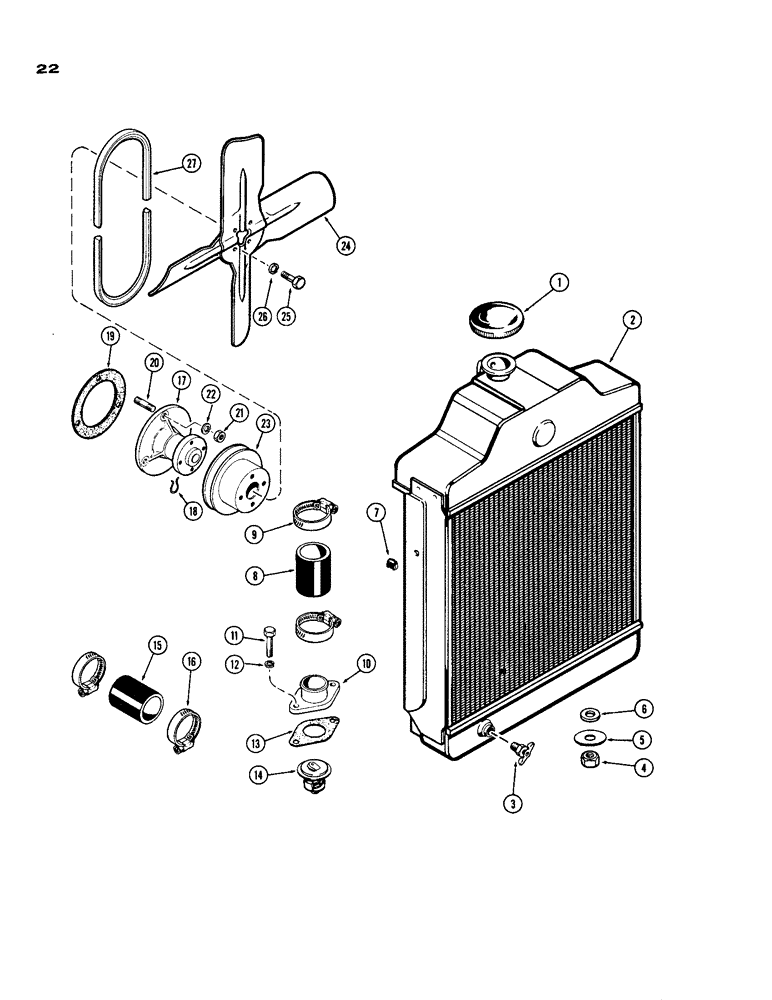

Запчасти Case IH 188 (22) - ENGINE COOLING SYSTEM, DIESEL ENGINE

1

G45176

CAP

- radiator

1шт.

2

G45266

RADIATOR

1шт.

3

217-103

COCK, DRAIN

DRAIN COCK

1шт.

4

V14103

SUPPORT

NUT - mounting stud, radiator

2шт.

5

95-10

WASHER,5/8"

- plain 5/8"

2шт.

6

VT3575

X

WASHER - rubber, radiator mounting

2шт.

7

131-126

NUT - cage, 5/16" N.C., radiator brace

2шт.

8

G46239

RADIATOR HOSE,2.00" ID x 4.88", SAE 20R2

Upper 2.00" ID x 4.88", SAE 20R2

1шт.

9

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

10

G2144

FITTING

CONNECTION - water outlet

1шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

G46907

GASKET

- outlet

1шт.

14

A57641

THERMOSTAT

(180deg.F) ( replaced G45788 )

1шт.

15

G46269

RADIATOR HOSE,1.75" ID x 2.50", SAE 20R2

Lower 1.75" ID x 2.50", SAE 20R2

1шт.

16

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

1шт.

17

G11939

PUMP

WATER PUMP - complete

1шт.

17

A146584GV

WATER PUMP

Value, Water Pump Assy.

1шт.

17

A146584R

REMAN-WATER PUMP

Reman For New P/N G11939, Water Pump, Complete

1шт.

17

A146584C

CORE-WATER PUMP

Return Part Number

1шт.

18

VT4594

X

RING - retainer

1шт.

19

G46875

GASKET

-, Serial Range: pump-cover

1шт.

20

VT4512

X

STUD - pump mounting

3шт.

21

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

3шт.

22

92-6

LOCK WASHER,3/8"

3шт.

23

G11339

PULLEY

- drive

1шт.

24

G45243

FAN

1шт.

25

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

26

92-5

LOCK WASHER,5/16"

4шт.

27

G46238

BELT,0.55" W x 17.78" L

Fan Drive 0.55" W x 17.78" L

1шт.
