Запчасти Case IH 188 (20) - THROTTLE, GOVERNOR AND TIMING GEAR COVER, SPARK IGNITION ENGINE

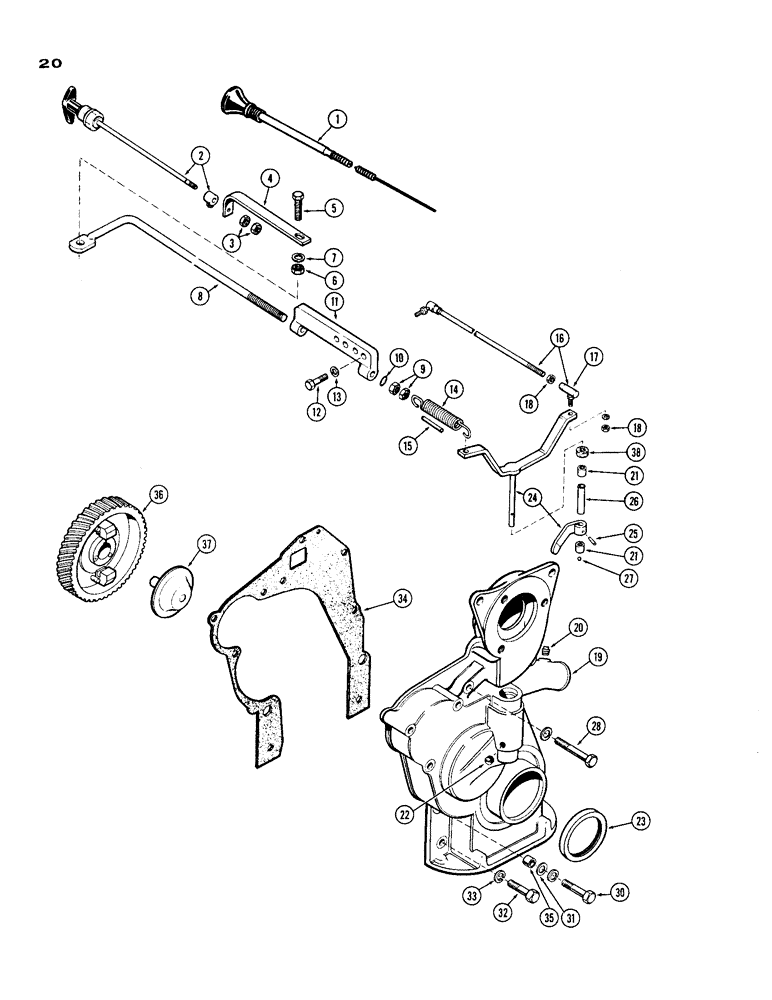

Схема запчастей Case IH 188 - (20) - THROTTLE, GOVERNOR AND TIMING GEAR COVER, SPARK IGNITION ENGINE
15
2
22
16
3
21
30
11
19
25
33
26
34
9
13
17
24
12
10
14
18
1
4
36
20
21
32
8
23
6
35
37
18
7
28
27
38
5
31

Артикул

Название

Примечание

Количество

1

A36550

ROD - choke

1шт.

2

A10877

CONTROLS - throttle (incl. stop collar)

1шт.

3

129-7

NUT,Hex, #10 - 24

- hex #10-24

2шт.

4

A36543

EXTENSION - throttle control

1шт.

5

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

6

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

8

A36542

ROD - throttle

1шт.

9

86585245

SPECIAL NUT,JAM, 5/8" - 18

- jam, 3/8" N.F. hex. (plated)

2шт.

10

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

11

VT403

GUIDE - throttle fod

1шт.

12

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

14

VT3066

X

SPRING - governor speed

1шт.

15

A36169

ROD - fuel shut-off(inside spring)

1шт.

16

G45228

ROD

ASSY - governor, Serial Range: arm-carburetor

1шт.

17

A10329

BALL JOINT,1/4" - 28 x 1"

- front

1шт.

18

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex

3шт.

19

A36822

COVER

- timing gear

1шт.

20

221-1013

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - pipe, 3/8" sq. hd.

1шт.

21

A35822

NEEDLE BEARING,Needle, 9.52mm ID x 14.29mm OD x 12.7mm W

BEARING - governor shaft

2шт.

22

VT3352

X

PLUG - pipe, 1/8" slotted hd.

1шт.

23

A36609

OIL SEAL

OIL SEAL - crankshaft front

1шт.

24

VTA850

X

ARM ASSY - governor control

1шт.

25

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

26

VT3288

X

SPACER - thrust, governor shaft

1шт.

27

211-5

BALL,3/16" Dia

- thrust, . 3/16" Dia

1шт.

28

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

28

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

30

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

31

195-25

WASHER,3/8"

- plain 3/8"

2шт.

32

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

33

92-6

LOCK WASHER,3/8"

7шт.

34

G46863

GASKET

- timing gear cover

1шт.

35

VT4535

X

RING - dowel, Serial Range: cover-block

2шт.

36

G37066

GEAR

- camshaft (includes governor weights)

1шт.

37

VTA855

X

SHAFT ASSY - governor

1шт.

38

VT3259

X

SEAL - dust, governor shaft

1шт.

Выбрано товаров: 38
