Запчасти Case IH 188 (18) - FUEL PUMP AND A36170 CARBURETOR, SPARK IGNITION ENGINE

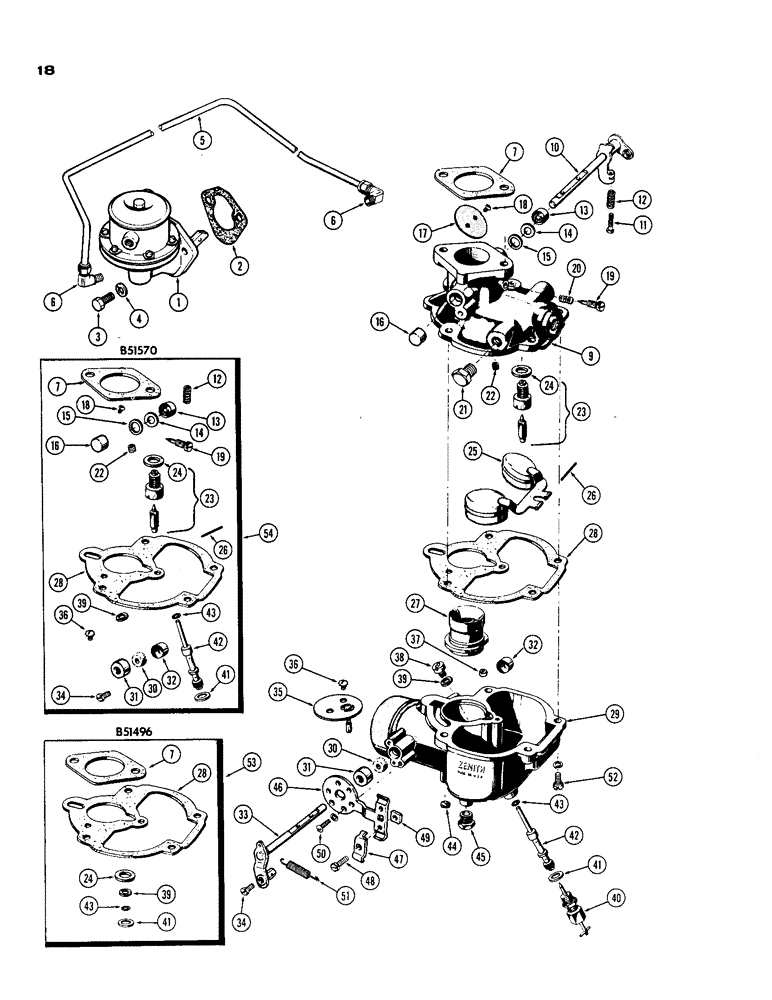

Схема запчастей Case IH 188 - (18) - FUEL PUMP AND A36170 CARBURETOR, SPARK IGNITION ENGINE
9
11
41
37
17
38
39
51
22
27
48
36
14
7
24
43
39
54
52
28
31
50
41
43
12
10
21
31
13
39
44
24
7
40
26
13
24
12
47
19
22
45
14
46
42
32
28
28
6
1
53
26
35
18
33
32
25
34
20
23
16
30
3
29
19
15
15
30
42
7
49
6
5
4
23
2
34
16
41
18
36
43

Артикул

Название

Примечание

Количество

1

G45778

PUMP

ASSY. - fuel

1шт.

2

G46902

GASKET

- fuel, Serial Range: pump-block

1шт.

3

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Pump Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

4

92-5

LOCK WASHER,5/16"

2шт.

5

G46295

LINE - fuel, Serial Range: pump-carburetor

1шт.

6

222-619

ELBOW,90 Degree, 1/2"-24 x 1/8" NPT, Comp

- fuel line

2шт.

7

G46826

GASKET

-, Serial Range: carburetor-manifold

1шт.

Part of gasket kit P/N B51496

1шт.

Part of repair kit P/N B51570

1шт.

A36170

CARBURETOR ASSY. - (not illust.)

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - (order A36170)

1шт.

10

A25105

SHAFT

LEVER ASSY. - throttle shaft

1шт.

11

A25106

SCREW

- stop, throttle lever

1шт.

12

A25107

SPRING - throttle lever stop screw

1шт.

Part of repair kit P/N B51570

1шт.

13

B51416

RETAINER

- throttle shaft seal

1шт.

Part of repair kit P/N B51570

1шт.

14

B51528

SEAL

- throttle shaft

1шт.

Part of repair kit P/N B51570

1шт.

15

B51530

SPACER

- throttle shaft

11шт.

Part of repair kit P/N B51570

1шт.

16

B51438

PLUG

- throttle shaft hole

1шт.

Part of repair kit P/N B51570

1шт.

17

B51211

PLATE

- throttle disc

1шт.

18

B51638

SCREW - throttle disc

2шт.

Part of repair kit P/N B51570

1шт.

19

B51265

HOSE

NEEDLE - idle adjusting

1шт.

Part of repair kit P/N B51570

1шт.

20

B51404

SPRING

- idle adj. needle

1шт.

21

B51541

PLUG

- fuel inlet port

1шт.

22

B51306

JET

- idle

1шт.

Part of repair kit P/N B51570

1шт.

23

B51343

HYDRAULIC VALVE

VALVE ASSY. - fuel seat

1шт.

Part of repair kit P/N B51570

1шт.

24

B51618

WASHER

- fuel valve seat

1шт.

Part of repair kit P/N B51570

1шт.

25

B51359

FLOAT

- fuel level

1шт.

26

B51433

AXLE

- float pivot

1шт.

Part of repair kit P/N B51570

1шт.

27

B51197

VENTURI

1шт.

28

B51471

GASKET

-, Serial Range: bowl-body

1шт.

Part of gasket kit P/N B51496

1шт.

Part of repair kit P/N B51570

1шт.

29

B51181

BOWL ASSY. - fuel

1шт.

30

B51533

WASHER

- choke shaft packing

1шт.

Part of repair kit P/N B51570

1шт.

31

B51439

RETAINER

- packing washer

1шт.

Part of repair kit P/N B51570

1шт.

32

B51509

PLUG

- choke shaft hole

1шт.

Part of repair kit P/N B51570

1шт.

33

B51387

LEVER ASSY. - choke shaft

1шт.

34

B51579

SCREW - choke wire

1шт.

Part of repair kit P/N B51570

1шт.

35

B51365

PLATE

- choke disc

1шт.

36

B51638

SCREW - choke disc

2шт.

Part of repair kit P/N B51570

1шт.

37

B51338

TUBE

JET - wall vent

1шт.

38

B51323

JET

- main

1шт.

39

B51610

WASHER

- main jet

1шт.

Part of gasket kit P/N B51496

1шт.

Part of repair kit P/N B51570

1шт.

40

B51330

ADJUSTER

ADJUSTMENT - main jet

1шт.

41

B51618

WASHER

- main jet adjustment

1шт.

Part of gasket kit P/N B51496

1шт.

Part of repair kit P/N B51570

1шт.

42

B51289

JET - discharge

1шт.

Part of repair kit P/N B51570

1шт.

43

B51619

WASHER

- discharge jet

1шт.

Part of gasket kit P/N B51496

1шт.

Part of repair kit P/N B51570

1шт.

44

B51442

FILTER

DISC - intake drain screen

1шт.

45

B51541

PLUG

- bowl drain

1шт.

46

B51400

SUPPORT

BRACKET ASSY. - choke

1шт.

47

B51403

CLIP

CLAMP - choke cable

1шт.

48

B51580

SCREW

-, Serial Range: clamp-bracket

1шт.

49

B51594

X

NUT - clamp screw ret.

1шт.

50

B51458

SCREW,#8 - 32 x 0.37"

-, Serial Range: bracket-bowl

2шт.

51

B51412

SPRING

- choke lever return

1шт.

52

B51635

SCREW,5/8" x 0.335"

-, Serial Range: bowl-body

4шт.

53

B51496

GASKET

KIT - Includes: Ref. 7, 28, 39, 41 and 43

1шт.

54

B51570

REPAIR KIT - Includes: Ref. 7, 12, 13, 14, 15, 16, 18, 19, 22, 23, 24, 26, 28, 30, 31, 32, 34, 36, 39, 41, 42, and 43

1шт.
