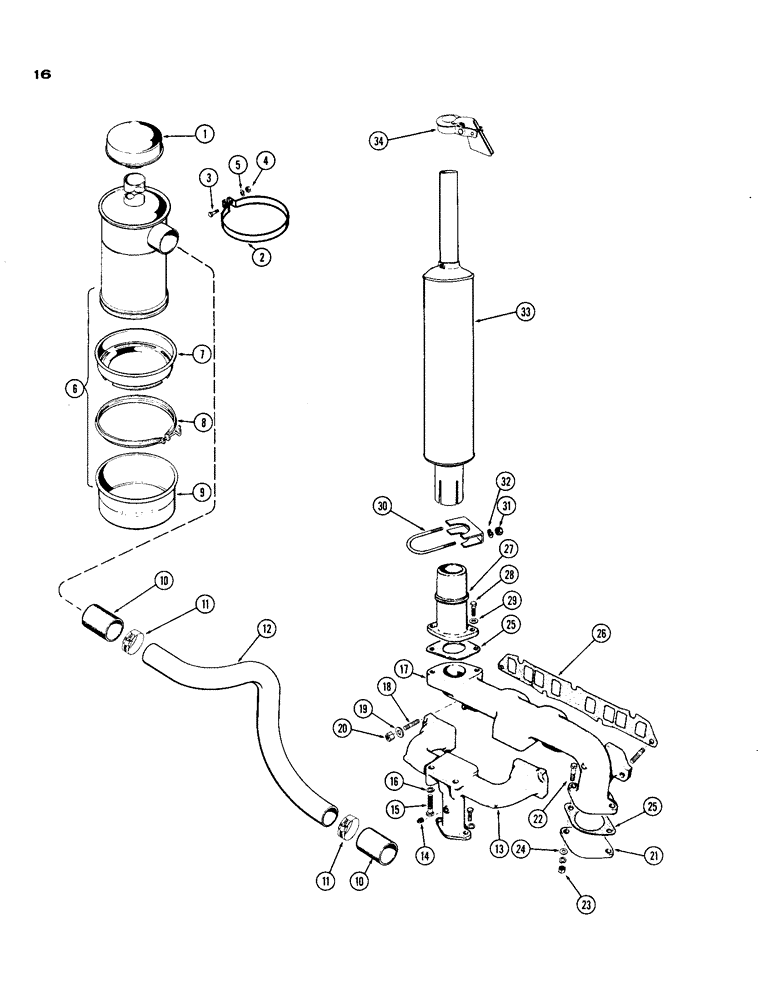

Запчасти Case IH 188 (16) - AIR CLEANER, MANIFOLD AND MUFFLER, SPARK IGNITION ENGINE

1

A21430

CAP

- air cleaner

1шт.

2

A16898

BAND

- mounting, air cleaner

1шт.

3

173-216

SCREW,Sl Rnd Hd, 1/4" - 20 x 1 3/4"

- 1/4" x 1-3/4" rd. hd. (plated)

1шт.

4

129-104

NUT,7/16"-14, G5

- 1/4" N.C. sq.

1шт.

5

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

6

G45473

AIR CLEANER - complete

1шт.

7

B15280

CUP - oil, inner ( replaced G46326 )

1шт.

8

G45333

CLAMP

ASSY - oil cup

1шт.

9

G46327

X

CUP - oil, outer

1шт.

10

G46338

INTAKE AIR HOSE,2.25" ID x 3.00", SAE 20R2

- Air cleaner tube 2.25" ID x 3.00", SAE 20R2

2шт.

11

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

4шт.

12

A36546

TUBE - air, Serial Range: cleaner-carburetor

1шт.

13

G11989

MANIFOLD

- intake

1шт.

14

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8" sq. hd.

1шт.

15

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8" x 2-1/2" N.C. hex. hd.

2шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

G2097

MANIFOLD

- exhaust

1шт.

18

VT4510

X

STUD - manifold to head (3/8" x 1-3/4")

7шт.

19

VT4504

WASHER

- stud

7шт.

20

VT3362

X

NUT - brass, 3/8" N.C.

7шт.

21

G2044

LARGE PLATE

COVER - exhaust opening

1шт.

22

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C. hex. hd.

2шт.

23

VT3362

X

NUT - brass, 3/8" N.C.

2шт.

24

195-25

WASHER,3/8"

- plain (13/32" I.D. x 13/16" O.D.)

2шт.

25

G46853

MANIFOLD GASKET

- exhaust opening

2шт.

26

G46868

MANIFOLD GASKET

-, Serial Range: manifold-head

1шт.

27

G2095

FITTING

ELBOW - exhaust outlet

1шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

29

92-6

LOCK WASHER,3/8"

2шт.

30

A13240

CLAMP,2-5/8" ID

- muffler

1шт.

31

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

2шт.

32

92-5

LOCK WASHER,5/16"

2шт.

33

G45239

MUFFLER

1шт.

34

G45048

CAP

- weather

1шт.
