Запчасти Case IH 188 (14) - OIL FILTER, OIL PUMP AND OIL PAN, SPARK IGNITION ENGINE

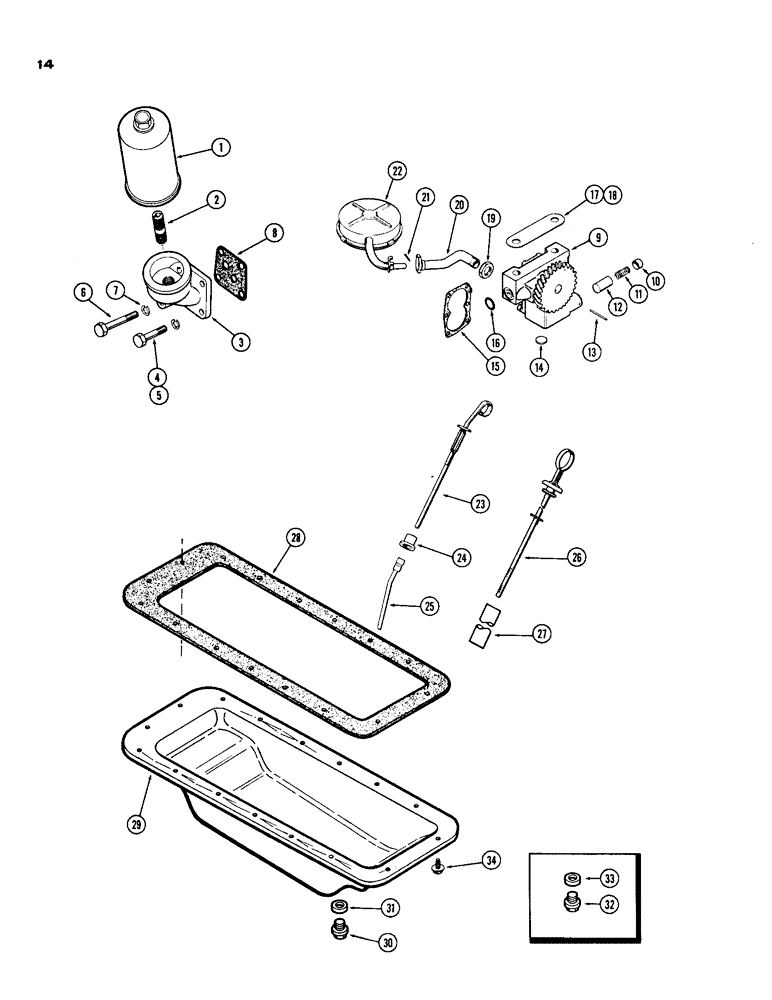

Схема запчастей Case IH 188 - (14) - OIL FILTER, OIL PUMP AND OIL PAN, SPARK IGNITION ENGINE
31
1
7
34
12
6
32
27
33
20
2
9
13
26
14
21
19
29
18
22
16
28
8
5
25
11
30
17
15
10
3
4
23
24

Артикул

Название

Примечание

Количество

1

G45210

FILTER, ELEMENT

FILTER - engine oil

1шт.

2

G49074

ADAPTER -, Serial Range: filter-bracket

1шт.

3

G2122

BRACKET - filter mounting

1шт.

4

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

5

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

6

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

7

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

4шт.

8

G46854

GASKET

-, Serial Range: bracket-block

1шт.

9

A49022

X

OIL PUMP ASSY - complete

1шт.

10

VT3221

X

RETAINER - relief spring

1шт.

11

G48513

VALVE SPRING

SPRING - relief valve

1шт.

12

VT3298

X

VALVE - relief

1шт.

13

138-62

LOCK PIN,1/8" x 1 1/8", Slotted

PIN, 1/8" x 1 1/8", Slotted

1шт.

14

VT3356

PLUG - pump body

2шт.

15

G46852

GASKET

- pump cover

1шт.

16

O8416AB

X

"O" RING - oil port

1шт.

17

G11337

SHIM,.002" Thk

Pump to block .002" Thk

2шт.

18

G11338

SHIM,.005" Thk

Pump to block .005" Thk

1шт.

19

223-207

LOCK NUT

NUT - lock, 3/8" P.T.

1шт.

20

G45766

PIPE, EXHAUST SYSTEM

PIPE - suction

1шт.

21

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

22

VTA330

FLOAT ASSY - oil pan

1шт.

23

G37037

DIPSTICK

- oil level (See items 26 & 27)

1шт.

24

G46892

OIL SEAL

- dipstick

1шт.

25

G45139

BRACKET

SUPPORT - dipstick to block (See Items 26 & 27)

1шт.

26

A36775

X

DIPSTICK - oil level (See Items 23, 24 and 25)

1шт.

27

A36774

X

SUPPORT - dipstick and oil filler (See Items 23, 24 and 25)

1шт.

28

A40712

KIT

GASKET KIT - oil pan (incl. ref. 31)

1шт.

29

A36717

PAN

OIL PAN ASSY

1шт.

30

A14280

PLUG

- drain (3/4" - 16) (See item 32)

1шт.

31

A27927

OIL PAN GASKET SET

- drain plug ( replaced O9844AB )

1шт.

32

G45786

PLUG

ASSY - drain (3/8" P.T.) (See item 30)

1шт.

33

G46903

GASKET

- drain plug

1шт.

34

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - oil pan (includes lockwasher)

18шт.

Выбрано товаров: 34
