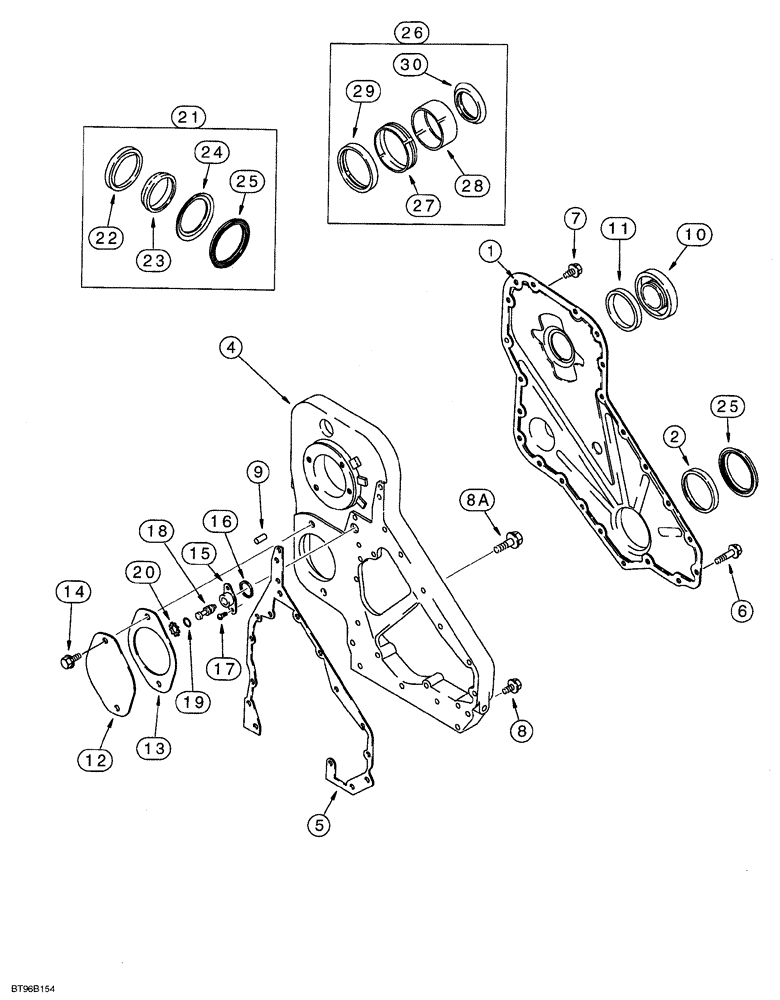

Запчасти Case IH 6831TA (02-020) - FRONT GEAR COVER, 6T-830 EMISSIONS CERTIFIED ENGINE, 6TA-830 EMISSIONS CERTIFIED ENGINE

1

J925230

COVER ASSY

gear, front, low PTO

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL oil, crankshaft front, use KIT A77790

1шт.

3

J823494

SEALANT

GASKET silicone liquid, 3 oz.tube, apply between front gear cover and timing gear housing, not shown

1шт.

4

J926721

MOTOR HOUSING

gear, low PTO

1шт.

5

J929253

GASKET

housing, gear

1шт.

6

J926863

FLANGE BOLT

BOLT hex flange, 8-1.25 x 50 mm class 10.9, front gear cover to timing gear housing to engine block

6шт.

7

J925883

FLANGE BOLT,Hex, M8 x 16mm, Cl 10.9

BOLT hex flange, 8-1.25 x 16 mm class 10.9, front gear cover to timing gear housing

17шт.

8

J926846

FLANGE BOLT

BOLT hex flange, 8-1.25 x 20 mm class 10.9, timing gear housing to engine block

5шт.

8a

854-12050

BOLT,Hvy Hex, M12 x 50mm, Cl 10.9

Timing gear housing to engine block

4шт.

9

J900257

PIN,10.01mm OD x 16mm L

dowel, 16 mm long

2шт.

10

J903463

PLUG,M63 x 5

front access

1шт.

11

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

front access cover

1шт.

12

J914868

COVER

PLATE access, flat

1шт.

13

J929751

GASKET

access cover plate

1шт.

14

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

Heavy

2шт.

15

J919683

HOUSING

timing pin

1шт.

16

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING Quad, timing pin housing

1шт.

17

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

18

J903924

PIN,18.87mm OD x 55mm L

timing

1шт.

19

J913994

O-RING

sealing

1шт.

20

J904849

SNAP RING,0.875", Int, #87

Timing pin

1шт.

21

A77790

SEAL KIT

oil, crankshaft front

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL oil, front

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

24

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

25

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

dust

1шт.

26

A77808

SERVICE KIT

wear sleeve, crankshaft front

1шт.

27

NSS

NOT SOLD SEPARAT

SLEEVE wear

1шт.

28

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

29

NSS

NOT SOLD SEPARAT

SEAL oil, front

1шт.

30

NSS

NOT SOLD SEPARAT

SHIELD dust

1шт.
